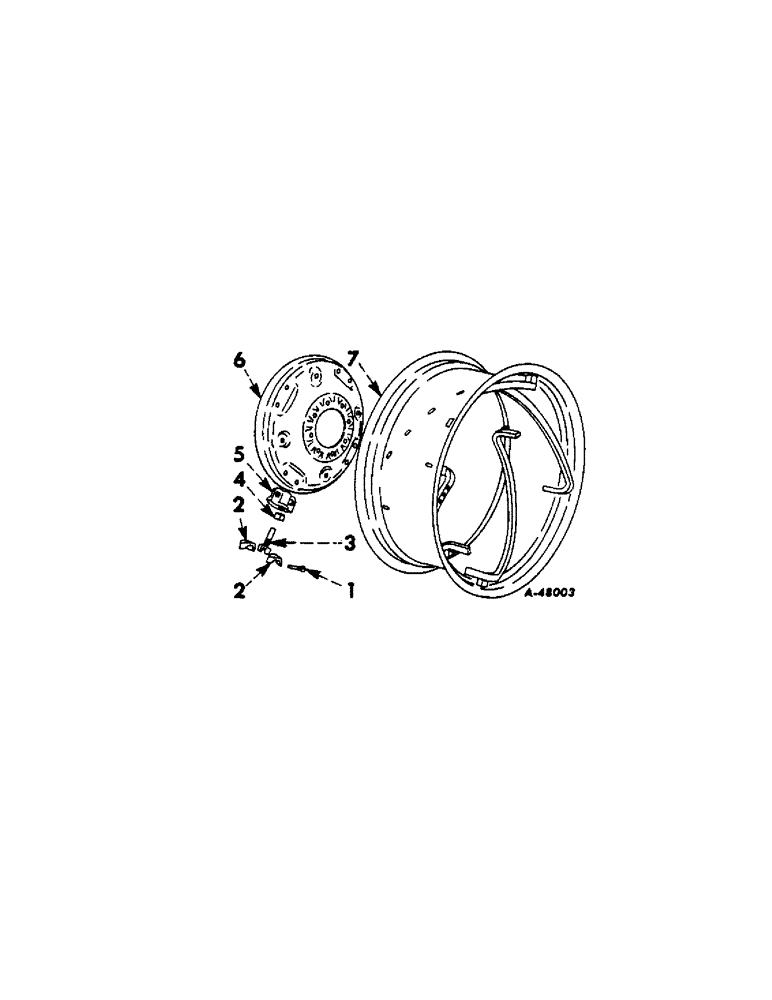

Запчасти Case IH 404 (099[A]) - WHEELS, POWER ADJUSTED REAR WHEELS, INTERNATIONAL SERIES (11) - WHEELS

1

365326R1

SCREW

power adjusted rear wheel stop

4шт.

2

365327R2

STOP

BODY, power adjusted rear wheel stop

4шт.

3

365329R1

JACK SCREW

power adjusted rear wheel jack

8шт.

4

365328R1

NUT

power adjusted rear wheel jack screw

8шт.

5

365330R1

BODY

power adjusted rear wheel jack screw

8шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8 x 1-1/2" cd-pltd. crg.

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" cd-pltd.

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

6

371562R1

DISC, power adjusted rear wheel (24" dia.)

1шт.

6

365325R1

DISC, power adjusted rear wheel (28" dia.)

1шт.

364451R1

BOLT,9/16" - 18 x 1 7/32"

rear wheel mounting

16шт.

7

371561R91

RIM ASSEMBLY, power adjusted rear wheel (W10-24 rim for 11.2/10- 24 or 12.4/11-24 tire)

2шт.

7

373300R91

RIM ASSEMBLY, power adjusted rear wheel (W10-28 rim for 12.4/11- 28 tire)

2шт.

7

365324R92

RIM

ASSEMBLY, power adjusted rear wheel (W12-28 rim for 13.6/12- 28 or 14.9/13-28 tire)

2шт.

365331R1

WRENCH, jackscrew (1-1/2") (Illustrated with "tools")

1шт.
