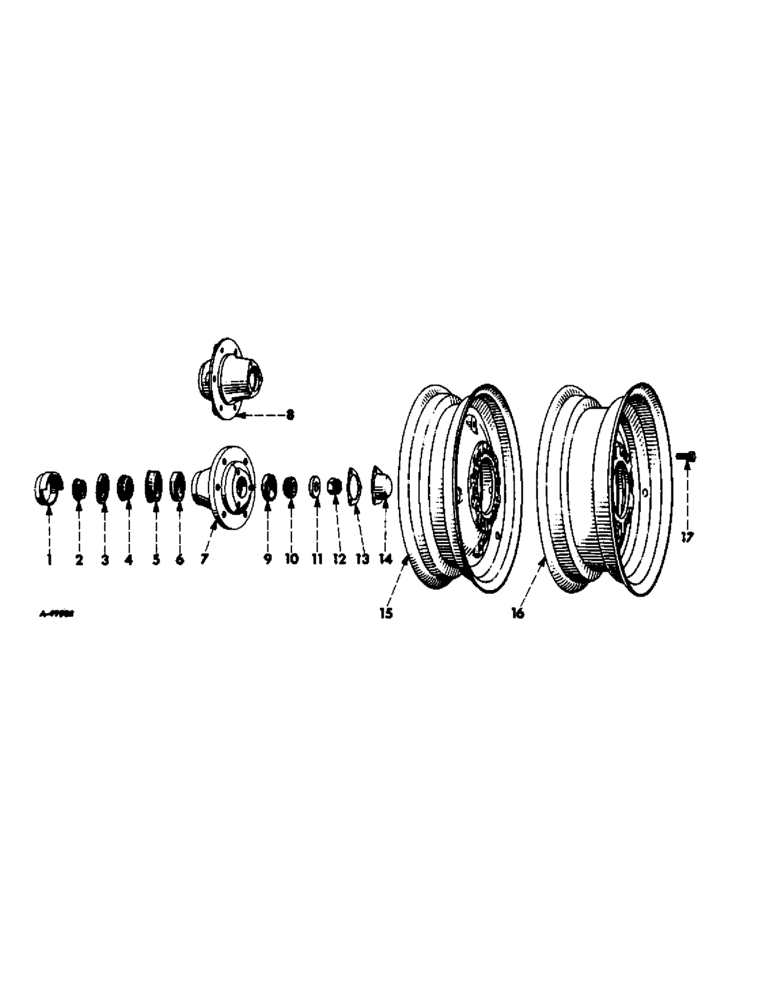

Запчасти Case IH 404 (095) - WHEELS, FRONT WHEELS, INTERNATIONAL SERIES (11) - WHEELS

1

43462D

DEFLECTOR

SHIELD, front wheel dust (2 for Unit A)

1шт.

1

48541D

SHIELD

front wheel dust (2 for Unit B)

1шт.

2

NSS

NOT SOLD SEPARAT

NOT USED

1шт.

3

368629R91

SEAL

OIL SEAL, front wheel (2 for Unit A)

1шт.

3

48539DA

PACKING RING

OIL SEAL, front wheel (2 for Unit B)

1шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, front wheel inner bearing (2 for Unit A)

1шт.

4

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, front wheel inner bearing (2 for Unit B)

1шт.

5

49117D

CUP ASSY.

RING, front wheel oil seal wear (2 for Unit A)

1шт.

5

48548D

WASHER

front wheel oil seal (2 for Unit B)

1шт.

6

651817R1

BEARING CUP

CUP, front wheel inner bearing (2 for Unit A)

1шт.

6

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

6

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel inner (2 for unit B)

1шт.

7

368626R11

HUB

ASSEMBLY, front wheel (2 for Unit A) (Composed of (1) cup 651814R1, (1) cup 651817R1, (1) hub 368626R1 (NSS), (1) ring 49117D)

1шт.

8

397092R11

HUB

ASSEMBLY, front wheel (Replaces 369141R1) (2 for Unit B)

1шт.

19700R91

FITTING

3/8-45 deg angle drive (Composed of (1) cup 371883R1, (1) cup 618024R1, (1) hub 397092R11 (NSS), (1) retainer 48548D)

2шт.

9

651814R1

BEARING CUP

CUP, front wheel outer bearing (2 for Unit A)

1шт.

9

371883R1

BEARING CUP

Front wheel outer (2 for Unit B)

1шт.

10

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, front wheel outer bearing (2 for Unit A)

1шт.

10

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

10

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Front wheel outer (2 for Unit B)

1шт.

11

369936R1

WASHER

front wheel outer bearing retainer (2 for Unit A)

1шт.

11

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

front wheel outer bearing retainer (2 for Unit B)

1шт.

12

102649

SLOTTED NUT,5/8"-18, G5

NUT, , Front wheel outer bearing retainer, 2 for unit A 5/8"-18, G5

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

12

427639

SLOTTED NUT,3/4"-16, G5

NUT, front wheel outer bearing retainer (2 for Unit B) PIN, 5/32 x 1-3/8" cotter

2шт.

13

49116D

GASKET,0.79mm Thk

front wheel hub cap (2 for Unit A)

1шт.

13

369860R1

GASKET,0.79mm Thk

front wheel hub cap (2 for Unit B)

1шт.

14

49115D

CYLINDER END CAP

CAP, front wheel hub (2 for Unit A)

1шт.

14

369859R1

CAP

front wheel hub (2 for Unit B)

1шт.

179814

SPACER

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

15

622192R91

WHEEL

ASSEMBLY, front (Disc Type 5KB-15DC rim for 5.90-15 tire) (International Lo-Boy Tractors)

2шт.

16

380065R91

WHEEL

ASSEMBLY, front (Disc type 4.25KA-16DC rim for 5.50-16 or 6.00-16 tire)

2шт.

16

364343R92

WHEEL

ASSEMBLY, front (Disc type 550F-16DC rim for 7.50-16 tire)

2шт.

17

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting

12шт.

375128R91

KIT

PACKAGE, front wheel bearing overhaul (2 for Unit A) (Consists of (1) cone 651815R91, (1) cone 651818R91, (1) cup 651814R1, (1) cup 651817R1, (1) gasket 49116D, (1) ring 49117D, (1) seal 368629R91)

1шт.
