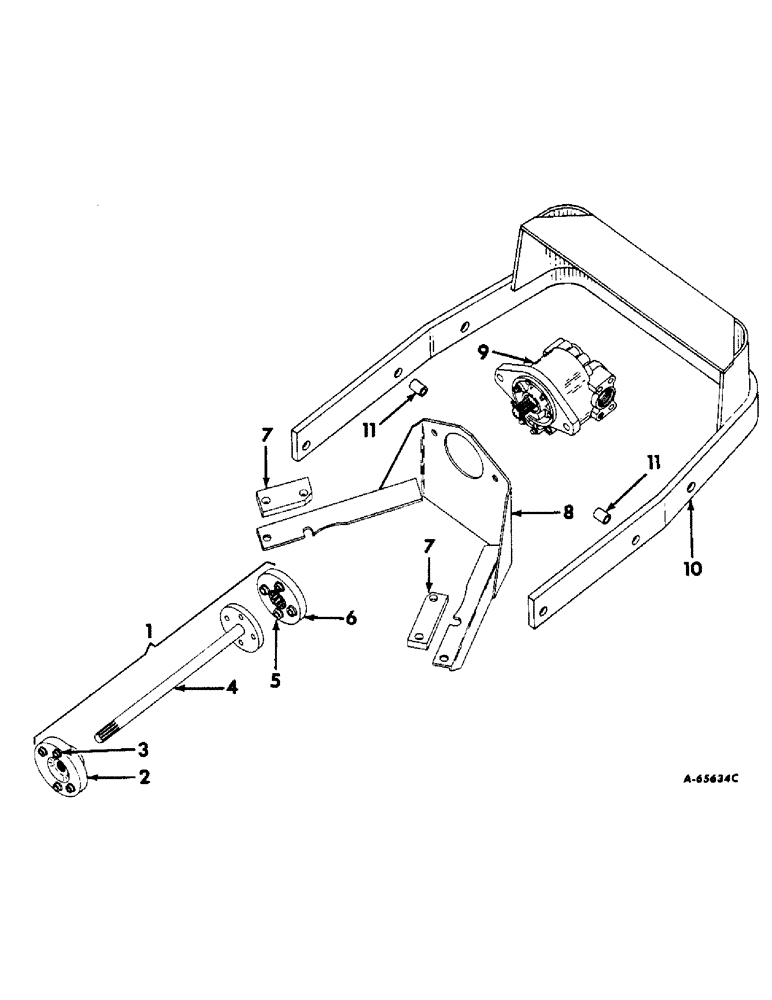

Запчасти Case IH 404 (123) - HYDRAULIC SYSTEM, FRONT POWER TAKE-OFF, INTERNATIONAL SERIES (07) - HYDRAULIC SYSTEM

1

379341R1

COUPLING ASSY, front PTO driven pump (used w/keyed pump shaft) (Order coupling, 488163R91 and pump, 383514R92)

1шт.

1

488163R91

SHAFT

COUPLING ASSY, front PTO driven pump (used w/splined pump shaft)

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

2

378870R91

HUB

ASSY., splined

1шт.

3

380809R1

BLOCK

& BUSHING ASSY.

4шт.

4

379342R1

FLANGE and SHAFT ASSY. (used w/keyed pump shaft) (Order flange & shaft, 488164R1, hub, 488161R91 and pump 383514R92)

1шт.

4

488164R1

SHAFT ASSY.

FLANGE and SHAFT ASSY. (used w/splined pump shaft)

1шт.

5

380810R1

BLOCK

& BUSHING ASSY.

4шт.

6

379346R91

HUB

ASSY., (used w/keped pump shaft) (flange & shaft, 488164R1, hub, 488161R91 & pump, 383514R92)

1шт.

6

488161

HUB ASSY. (used w/splined pump shaft)

1шт.

488161 "MAY" BE A 488161R91. PER GPN, EF#5 LINKS TO THIS REF#6

1шт.

442825

NUT, 5/16-18 C-Z hex lock

4шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

CAP, 5/16-18 x 1-1/2 C-Z hex-hd.

4шт.

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

1шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8-16 x 3/4 x .065 ga. C-Z

4шт.

7

379340R1

SPACER, pump bracket (tractors w/o heavy duty grill)

2шт.

8

379337R11

BRACKET ASSY., front PTO driven pump

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 C-Z hex-hd. cap

4шт.

446221

WASHER,7/16"

1/2 x 1-1/8 x .083 ga. C-Z

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

378872R91

PUMP ASSY, front PTO driven (Cessna) (has keyed shaft) (for components see list of parts under details of front PTO pump) (optional with 353513R92) (order flange and shaft, 488164R1, hub, 488161R91 and pump, 383514R92)

1шт.

9

383513R92

PUMP ASSY, front PTO driven (Thompson) (has keyed shaft) (for components see list of parts under details of front PTO pump) (optional with 378872R91) (order flange & shaft, 488164R1, hub, 488161R91 and pump, 383514R92)

1шт.

9

381151R91

PUMP

ASSY, front PTO driven (Cessna) (has splined shaft) (for components see list of parts under details of front PTO pump) (optional with 383514R92)

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z screw

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

9

383514R92

PUMP

ASSY., front PTO driven (Thompson) (has splined shaft) (for components see list of parts under details of front PTO pump) (optional with 381151R91)

1шт.

102637

NUT,1/2"-13, G5

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 C-Z hex hd. cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

469338R91

GUARD ASSY, pump

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

11

C13756

SPACER

pump guard

2шт.
