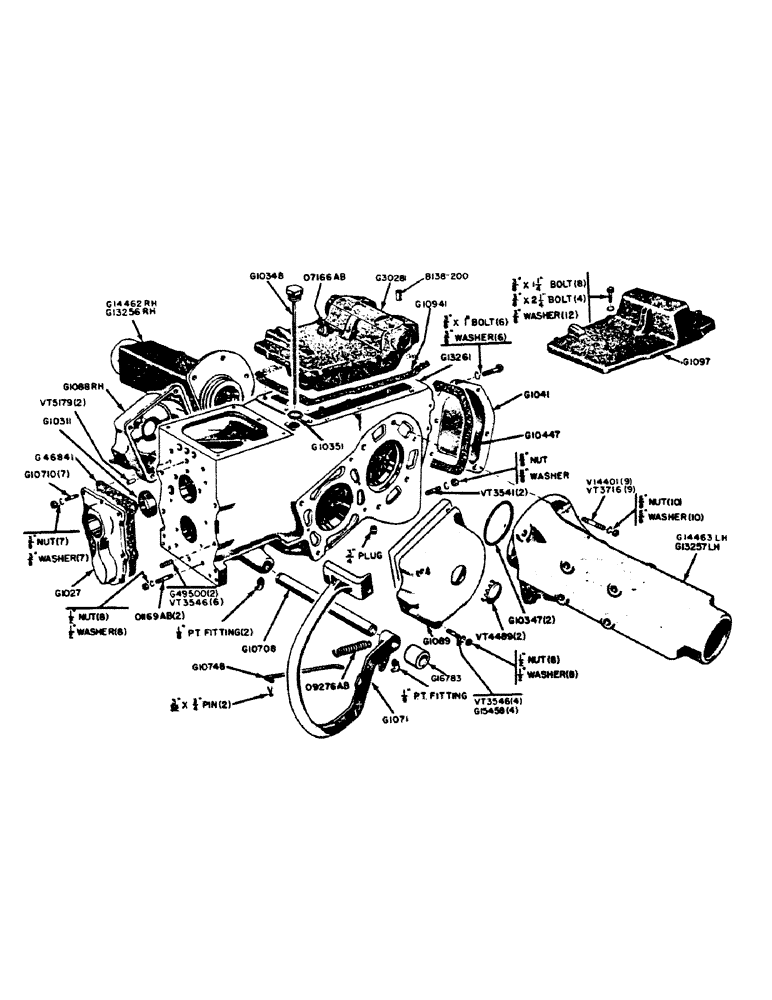

Запчасти Case IH 400B-SERIES (108) - TRANSMISSION CASE AND REAR AXLE HOUSINGS, UTILITY TRACTORS (06) - POWER TRAIN

G1027

COVER

- front transmission case (4 speed transmission only)

1шт.

G1041

COVER

- rear (P.T.O. opening)

1шт.

3/8" x 1" NC hex. hd. bolt w/lockwasher

6шт.

G1071

PEDAL - clutch

1шт.

1/8" 67-1/2deg. fitting (Lincoln #5300)

1шт.

G1088

COVER - R.H. brake

1шт.

G1089

COVER - L.H. brake

1шт.

G1096

CASE - transmission (Use G13261)

1шт.

G1097

COVER - top rear, transmission case (without Eagle Hitch)

1шт.

3/8" x 1-1/4" NC hex. hd. bolt w/lockwasher

8шт.

3/8" x 2-1/4" NC hex. hd. bolt w/lockwasher

4шт.

G1111

HOUSING - Eagle Hitch rockshaft (Use G30281) See Page 171

1шт.

G1116

HOUSING (Use G13256)

1шт.

G1117

HOUSING (Use G13257)

1шт.

G1320

HOUSING (Use G14462)

1шт.

G1321

HOUSING (Use G14463)

1шт.

G1350

HOUSING - Eagle Hitch rockshaft (Use G30281) See Page 171

1шт.

G10311

COLLAR

- pilot, for G1027 cover

1шт.

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - axle housing inner seal (5-1/4" dia.)

2шт.

G10348

DIPSTICK

- transmission oil level

1шт.

G10351

GASKET

- dipstick

1шт.

G10447

GASKET

- G1041, Serial Range: cover-case

1шт.

G10708

SHAFT

- clutch and brake pedals

1шт.

G10710

STUD

- front cover to transmission case (3/8" x 1-5/8")

7шт.

3/8" NF hex. nut and lockwasher

7шт.

G10748

LINK

ROD - link, clutch, Serial Range: pedal-lever

1шт.

3/32" x 3/4" cotter pin

2шт.

G10941

GASKET

- G1097 or G1111 to transmission case

1шт.

G13256

HOUSING - rear axle, R.H. (includes bearing cups) Before tractor #6128060

1шт.

5/8" x 1-3/4" NC hex. hd. bolt

1шт.

G13257

HOUSING - rear axle, L.H. (includes bearing cups) Before tractor #6128060

1шт.

G13261

CASE - transmission (includes 2-VT2067 snap rings, 2-VT2097 bearing cups and 7-G10710, 2-G49500, 2-01169AB, 2-VT3541, 8-VT3546, 4-G15458 and 9-VT3716 studs)

1шт.

3/4" sq. hd. pipe plug

1шт.

1/4" 45deg. fitting (Lincoln #5200)

2шт.

G14462

HOUSING - rear axle, R.H. (Includes bearing cups) Tractor #6128060 and after

1шт.

5/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher

1шт.

G14463

HOUSING - rear axle, L.H. (Includes bearing cups) Tractor #6128060 and after

1шт.

G15458

STUD

- brake cover to transmission case (1/2" x 4-1/2")

4шт.

1/2" NF hex. nut and lockwasher

4шт.

G16783

SPACER

- cross shaft (in place of G1071 pedal w/Case-O-Matic)

1шт.

G46841

GASKET

- front cover, transmission case

1шт.

G49500

STUD

- torque tube to transmission case (1/2" x 2-3/16")

2шт.

1/2" NF hex. nut and lockwasher

2шт.

1169AB

STUD - torque tube to transmission case (1/2" x 4-7/8")

2шт.

1/2" NF hex. nut and lockwasher

2шт.

7166AB

BREATHER - rear cover

1шт.

9276AB

SPRING - return, clutch pedal

1шт.

V14401

STUD - axle housing (5/8" x 2-11/16") Tractor #6128060 and after

9шт.

VT3541

STUD - draw bar support (5/8" x 2")

2шт.

5/8" NF hex. nut and lockwasher

2шт.

VT3546

X

STUD - torque tube and brake cover to transmission case (1/2" x 2-1/2")

10шт.

1/2" NF hex. nut and lockwasher

10шт.

VT3716

STUD - axle housing (5/8" x 2-1/2") Before tractor #6128060

9шт.

5/8" NF hex. nut and lockwasher

9шт.

VT4489

X

PLUG - button, brake cover

2шт.

VT5179

X

DOWEL - torque tube to transmission case (1/2" x 1-5/16")

2шт.

B138-200

ROLL PIN - E.H. rockshaft housing to transmission case (1/2"x1")

1шт.
