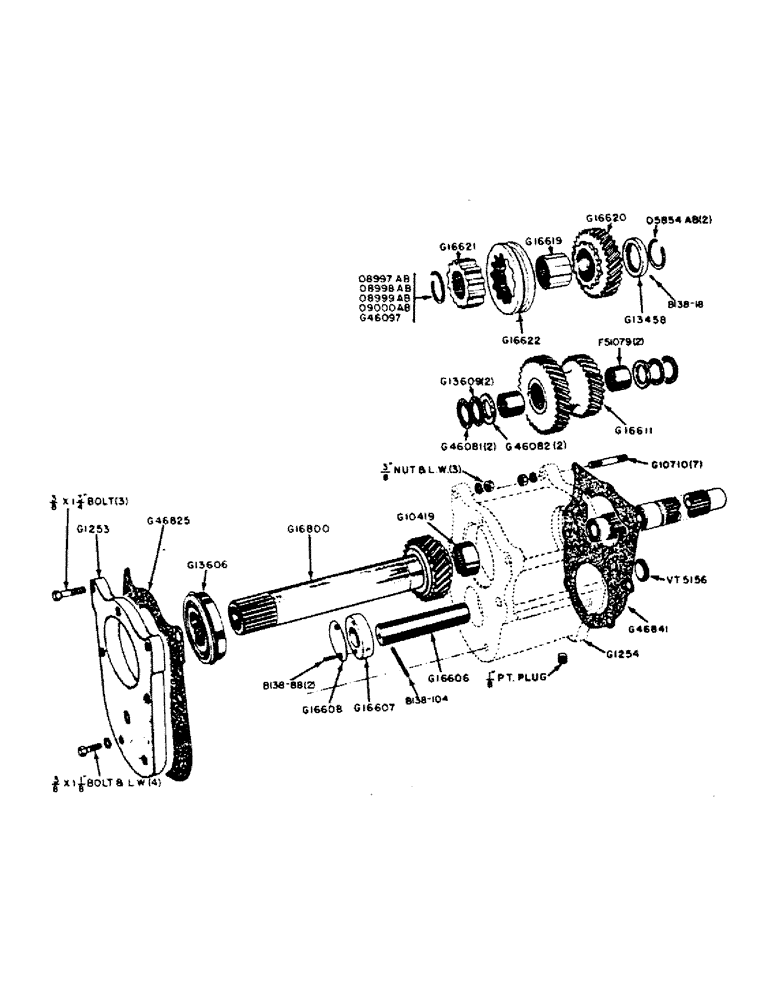

Запчасти Case IH 400B-SERIES (097) - DUAL RANGE GEAR AND HOUSING, 400B SERIES TRACTORS (06) - POWER TRAIN

F51079

NEEDLE BEARING

BEARING - needle, cluster gear (Torrington JH-16160H)

2шт.

G1253

PLATE - front cover, gear housing

1шт.

3/8" x 1-1/8" N.C. hex. hd. bolt w/lockwasher

4шт.

3/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher

3шт.

G1254

HOUSING

1шт.

1/8" socket hd. pipe plug

1шт.

G10419

NEEDLE BEARING

BEARING - needle, input gear (Torrington #BH2212)

1шт.

G13458

COLLAR

- thrust, output gear (includes B138-18 roll pin)

1шт.

G13606

BALL BEARING

BEARING - ball, input gear (N.D. #43208 LY1A)

1шт.

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Countershaft (Torrington #NTA1625)

2шт.

G16606

SHAFT

COUNTERSHAFT

1шт.

G16607

COLLAR

- countershaft

1шт.

G16608

SHIM,.005" Thk

Countershaft .005" Thk

1шт.

G16611

GEAR

- cluster, countershaft (34T and 27T)

1шт.

G16619

SLEEVE

- output gear

1шт.

G16620

GEAR

- output (32T)

1шт.

G16621

CARRIER

- shift collar (24T)

1шт.

G16622

X

COLLAR - shift

1шт.

G16800

GEAR

- input (25T)

1шт.

G46081

BEARING WASHER

WASHER - thrust, outer, countershaft (.031")

2шт.

G46082

WASHER

- thrust, inner, countershaft (.125")

2шт.

G46097

RING

SNAP RING - shift collar to main shaft (.087")

1шт.

G46825

GASKET

- front cover

1шт.

G46841

GASKET

- gear housing to transmission case

1шт.

5854AB

SNAP RING - thrust collar to main shaft

1шт.

8997AB

SNAP RING - shift collar to main shaft (.076")

1шт.

8998AB

SNAP RING - shift collar to main shaft (.080")

1шт.

8999AB

SNAP RING - shift collar to main shaft (.083")

1шт.

9000AB

SNAP RING - shift collar to main shaft (.091")

1шт.

VT5156

PLUG - rear, housing (1-1/2" Welch)

1шт.

B138-18

ROLL PIN - thrust collar (5/64" x 3/8")

1шт.

B138-88

ROLL PIN - countershaft collar (3/16" x 1/2")

2шт.

B138-104

ROLL PIN - collar to countershaft (5/64" x 3/8")

1шт.
