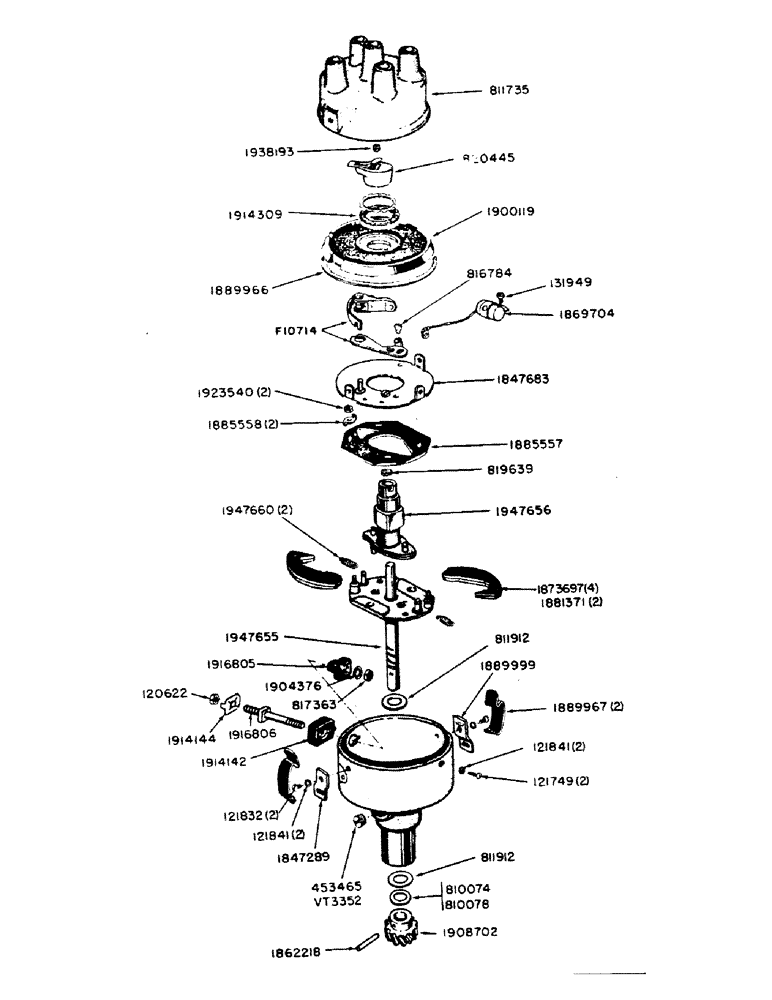

Запчасти Case IH 400B-SERIES (071A) - G11918 AND G11919 DISTRIBUTORS (04) - ELECTRICAL SYSTEMS

F10714

POINT

CONTACT SET - breaker points

1шт.

This part does not need to be obtained from a Delco-Remy service station. Unless indicated otherwise, the other parts in this parts list must be obtained from a Delco-Remy service station.

1шт.

120622

NUT,#8-32

Outside, terminal stud #8-32

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- support, breaker plate

2шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- attaching, anchor spring support

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, , Screw, breaker plate #8

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, , Attaching screw, spring support #8

2шт.

G11051

DISTRIBUTOR

PLUG - pipe, distributor housing (G11919)

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

- condenser attaching

1шт.

A30078

DISTRIBUTOR

PLUG - pipe, distributor housing (G11918)

1шт.

810074

WASHER - shim (.005")

1шт.

810078

WASHER - shim (.010")

1шт.

811735

COVER ASSY

CAP - distributor (Includes carbon button)

1шт.

811912

WASHER

- spacer, drive shaft

1шт.

811912

WASHER

- spacer, weight plate

1шт.

816784

SCREW - adjusting, contact set

1шт.

817363

NUT - terminal stud

1шт.

819639

WICK - felt, in cam

1шт.

G44040

ROTOR

ASSEMBLY

1шт.

1847289

SUPPORT - anchor spring, distributor cap

1шт.

1847683

PLATE - breaker

1шт.

1862218

PIN - attaching, drive gear

1шт.

G44042

CONDENSER

(Replaces 1869704)

1шт.

1873697

WEIGHT - governor (G11919)

4шт.

1881371

WEIGHT - governor (G11918)

2шт.

1885557

PLATE - hold down, governor weight

1шт.

1885558

LOCKWASHER - weight hold down plate

2шт.

1889966

GASKET - housing cover (not shown)

1шт.

1889967

SPRING - anchor, distributor cap

2шт.

1889999

SUPPORT - locator, distributor spring cover

1шт.

1900119

COVER

- distributor housing (Includes gasket and felt seal)

1шт.

1904376

WASHER

LOCKWASHER - inside, terminal stud

1шт.

1908702

HYDRAULIC SYSTEM

GEAR - drive

1шт.

1909003

PISTON ASSY +0.4

BUSHING - bearing, distributor housing (not shown)

1шт.

1914142

BUSHING - outside, terminal stud

1шт.

1914144

CLIP - lock, terminal stud (not shown)

1шт.

1914309

WASHER - felt, housing cover (not shown)

1шт.

1916805

BUSHING

- inside, terminal stud

1шт.

1916806

STUD

- terminal

1шт.

1923540

NUT

- attaching, weight hold down plate

2шт.

1938193

BUTTON - carbon, distributor cap (not shown)

1шт.

1947655

MAIN SHAFT AND WEIGHT PLATE ASSEMBLY

1шт.

1947656

CAM - advance and breaker

1шт.

1947657

SPRING - governor weight (G11918)

2шт.

1947360

SPRING - governor weight (G11919)

2шт.
