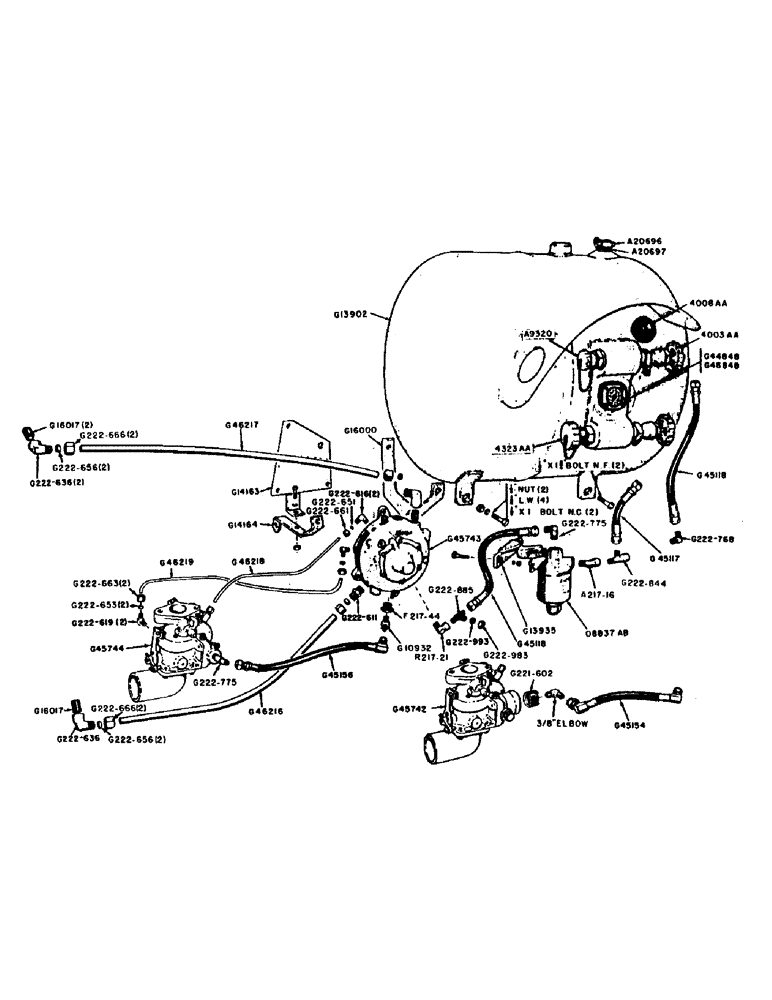

Запчасти Case IH 400B-SERIES (036) - SPARK IGNITION ENGINES, FUEL TANK L.P. GAS, L.P. GAS ATTACHMENTS, 400B SERIES (03) - FUEL SYSTEM

A9320

VALVE - vapor return

1шт.

A20696

SEAL

VALVE - Safety relief

1шт.

A20697

WIPER

CAP - rain

1шт.

G13902

TANK - fuel (Includes valve, gage and fittings)

1шт.

1/2" x 1" N.C. hex. hd. bolt w/hex. nut and lockwasher

2шт.

1/2" x 1" N.C. hex. hd. bolt w/hex. nut and lockwasher

2шт.

G16000

BRACKET - front support, fuel tank

1шт.

3/8" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

2шт.

G44848

GAGE - fuel (Includes gasket and 4-1/4" x 15/16" filister hd. screws)

1шт.

G46848

GASKET - fuel gage

1шт.

4003AA

X

VALVE - outlet, liquid and vapor

2шт.

4008AA

GAGE - fixed liquid level

1шт.

4323AA

VALVE - liquid filler

1шт.

G10932

ELBOW

- G45156 hose to regulator, L.P. gas attachments - 400B series

1шт.

G13935

BRACKET - support, 08837AB filter, L.P. gas attachments - 400B series

1шт.

G14163

BRACKET - support, regulator, L.P. gas attachments - 400B series

1шт.

1/4" x 3/4" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G14164

SUPPORT - regulator bracket and L.H. side panel, L.P. gas attachments - 400B series

1шт.

G16017

X

NIPPLE - brass, water line (3/8" P.T. x 1" long), L.P. gas attachments - 400B series

4шт.

G45117

HOSE - liquid, tank to filter (6" long), L.P. gas attachments - 400B series

1шт.

G45118

HOSE - vapor, tank to filter and filter to regulator (11" long), L.P. gas attachments - 400B series

2шт.

G45154

HOSE - regulator to carburetor (for G45742 carburetor) See G45156, L.P. gas attachments - 400B series

1шт.

3/8" 90deg. elbow (Anchor #6MA-82MB) 45deg. flare

1шт.

G45156

HOSE - regulator to carburetor (for G45744 carburetor), L.P. gas attachments - 400B series

1шт.

G45742

CARBURETOR (Ensign Model X G-1/1'4" #4353) Use G45744, L.P. gas attachments - 400B series

1шт.

G45743

REGULATOR (Ensign Model W #4361), L.P. gas attachments - 400B series

1шт.

5/16" x 1" N.F. hex. hd. bolt w/hex. nut and lockwasher

2шт.

G45744

CARBURETOR (Ensign Model XG - 1 x 1/4" #4431), L.P. gas attachments - 400B series

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

2шт.

G46216

LINE - water, regulator to lower elbow, L.P. gas attachments - 400B series

1шт.

G46217

LINE - water, outlet elbow to regulator, L.P. gas attachments - 400B series

1шт.

G46218

LINE - idle, regulator to carburetor, L.P. gas attachments - 400B series

1шт.

G46219

LINE - balance, regulator to carburetor, L.P. gas attachments - 400B series

1шт.

8837AB

FILTER - liquid (Ensign #6257), L.P. gas attachments - 400B series

1шт.

5/16" x 1" N.F. hex. hd. bolt w/hex. nut and lockwasher

2шт.

A217-16

ELBOW - hose to filter (124B - 1/4" P.T. 45deg.), L.P. gas attachments - 400B series

1шт.

R217-21

ELBOW - street, tee to regulator (116B - 1/4" P.T.), L.P. gas attachments - 400B series

1шт.

F217-44

BUSHING - reducing, elbow to regulator (110B - 1/2" O.D. x 3/8" P.T.), L.P. gas attachments - 400B series

1шт.

G221-602

BUSHING - reducing, elbow to G45742 carburetor (1" x 3/8"), L.P. gas attachments - 400B series

1шт.

G222-611

FITTING - water line to regulator (68F - 1/2" O.D. x 1/2" P.T. includes G222-656 sleeve and G222-666 nut), L.P. gas attachments - 400B series

1шт.

G222-616

ELBOW - idle line to regulator (69F - 3/16" O.D. x 1/8" P.T., includes G222-651 sleeve and G222-661 nut), L.P. gas attachments - 400B series

1шт.

G222-619

ELBOW - balance line (69F - 5/16" O.D. x 1/8" P.T., includes G222-653 sleeve and G222-663 nut), L.P. gas attachments - 400B series

2шт.

G222-636

ELBOW - water line (70F - 1/2" O.D. x 1/2" P.T. 90deg., includes G222-656 sleeve and G222-666 nut), L.P. gas attachments - 400B series

3шт.

G222-651

SLEEVE - idle line elbow (60F - 3/16"), L.P. gas attachments - 400B series

1шт.

G222-653

SLEEVE - balance line elbow (60F - 5/16"), L.P. gas attachments - 400B series

2шт.

G222-656

SLEEVE - water line fitting (60F - 1/2"), L.P. gas attachments - 400B series

4шт.

G222-661

NUT - idle line elbow (61F - 3/16"), L.P. gas attachments - 400B series

1шт.

G222-663

NUT - balance line elbow (61F - 5/16"), L.P. gas attachments - 400B series

2шт.

G222-666

NUT - water line fitting (61F - 1/2"), L.P. gas attachments - 400B series

4шт.

G222-768

ELBOW - hose to filter (49F - 3/8" x 1/4"), L.P. gas attachments - 400B series

1шт.

G222-775

ELBOW - hose to G45744 carburetor (49F - 1/2" O.D. x 1/2" P.T.), L.P. gas attachments - 400B series

1шт.

G222-844

TEE FITTING - fuel filter (53F - 3/8" O.D. x 1/4" P.T.), L.P. gas attachments - 400B series

1шт.

G222-885

TEE FITTING - regulator (51F - 3/8" O.D. x 1/4" P.T.), L.P. gas attachments - 400B series

1шт.

G222-983

CAP - tee fitting (640FB - 3/8"), L.P. gas attachments - 400B series

1шт.

G222-993

GASKET - brass, tee fitting cap (625F - 3/8"), L.P. gas attachments - 400B series

1шт.
