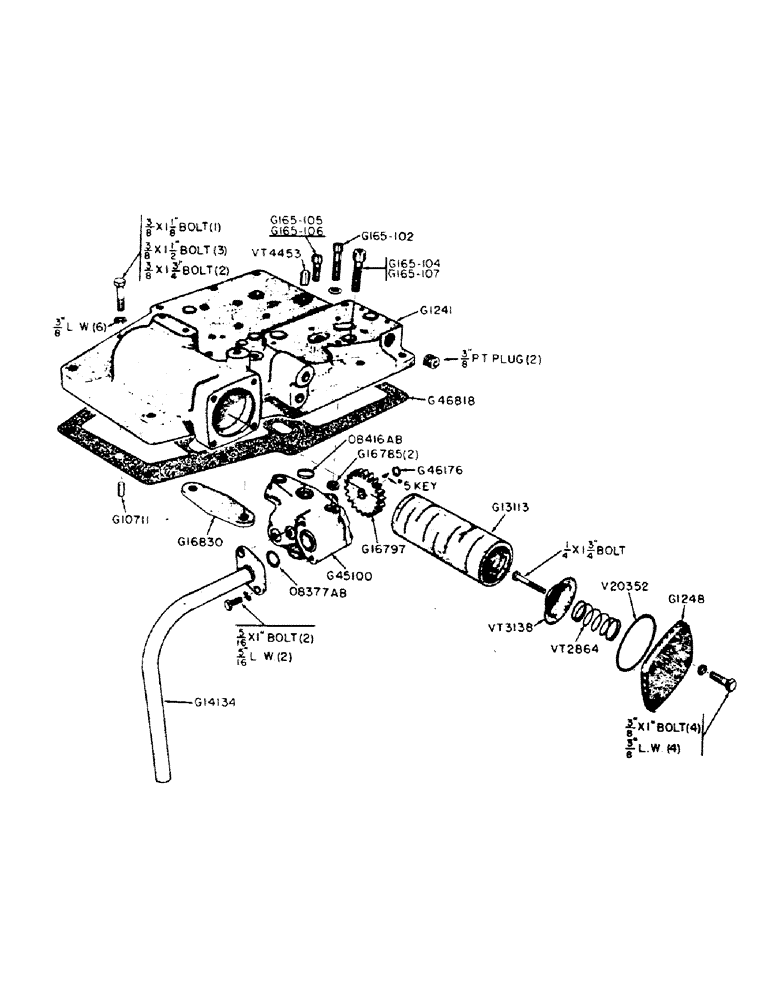

Запчасти Case IH 400B-SERIES (166) - HYDRAULIC PUMP AND ADAPTER, 400B SERIES TRACTORS (08) - HYDRAULICS

G165-104

SCREW (7/16" x 1-3/4") self-locking, Serial Range: pump-adapter

1шт.

G165-105

SCREW (7/16" x 7/8" NC) self-locking, opening cover

1шт.

G165106

SCREW (7/16" x 1" NC) self-locking, Serial Range: pump-adapter

1шт.

G165-107

SCREW (7/16" x 1-1/2" NC) self-locking, opening cover

1шт.

G1241

HOUSING - adapter, hydraulic pump

1шт.

3/8" socket hd. pipe plug (short)

2шт.

3/4" expansion plug

1шт.

3/8" x 1-1/8" NC hex. hd. bolt w/lockwasher

1шт.

3/8" x 1-1/2" NC hex. hd. bolt w/lockwasher

3шт.

3/8" x 1-3/4" NC hex. hd. bolt w/lockwasher

2шт.

G1248

COVER

CAP - oil filter, adapter housing

1шт.

3/8" x 1" NC hex. hd. bolt w/lockwasher

4шт.

G10711

PIN

- rear dowel, adapter housing to torque tube

1шт.

G13113

ELEMENT,2.25" OD x 6" L

FILTER - hydraulic oil

1шт.

G14134

TUBE - suction, G45100 pump

1шт.

5/16" x 1" NC hex. hd. bolt w/lockwasher

2шт.

G16785

RING

- dowel, G45100 pump to adapter housing

2шт.

G16797

GEAR

- drive, G45100 pump (20T)

1шт.

#5 Woodruff key

1шт.

G16830

COVER - hydraulic pump opening w/o hydraulics

1шт.

G45100

X

PUMP - hydraulic drive

1шт.

G46176

SNAP RING,#56, Ext

Ring, Snap, , drive gear to hydraulic pump #56, Ext

1шт.

G46818

GASKET

- adapter housing to torque tube

1шт.

8377AB

"O" RING - suction tube to hydraulic pump

1шт.

8416AB

"O" RING - pump to adapter housing

1шт.

V20352

SCREW

"O" RING - oil filter cap

1шт.

VT2864

SPRING

- retainer, oil filter element

1шт.

VT3138

X

CAP - retainer, oil filter element

1шт.

1/4" x 1-3/4" NC hex. hd. bolt w/lockwasher

1шт.

VT4453

X

PIN - front dowel, adapter housing to torque tube

1шт.
