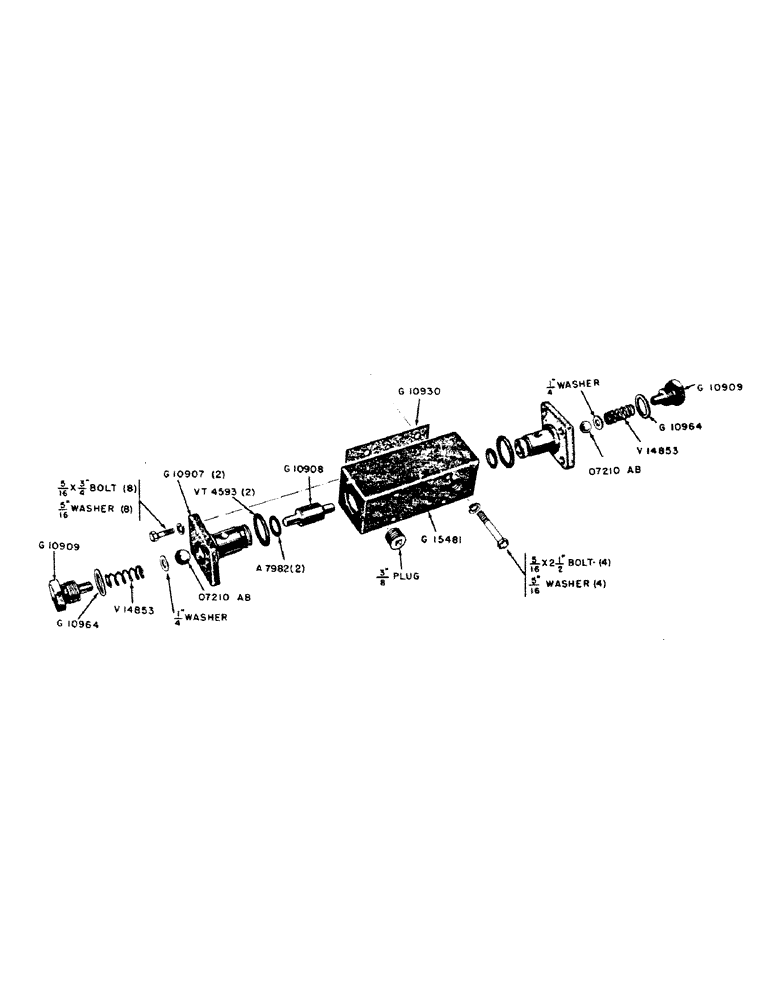

Запчасти Case IH 400B-SERIES (163) - PARTS FOR G13106 INTERLOCK (08) - HYDRAULICS

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - end cover inner seal

2шт.

G10907

COVER

- interlock end

2шт.

5/16" x 3/4" hex. hd. bolt, NC w/lockwasher

8шт.

G10908

PLUNGER

- interlock valve

1шт.

G10909

PLUG

- body end

2шт.

G10930

GASKET

- interlock to control body

1шт.

G10964

WASHER

GASKET - end plug

4шт.

G13106

INTERLOCK - hydraulic, complete

1шт.

3/8" ctsk. hd. pipe plug

1шт.

5/16" x 2-1/2" hex. hd. bolt, NC w/lockwasher

4шт.

G15481

BODY

- interlock

1шт.

7210AB

BALL - interlock check valve (1/2" dia.)

2шт.

V14853

X

SPRING - plunger, check valve ball

2шт.

9/16" OD x 1/4" ID #18 ga. plain washer

2шт.

VT4593

X

"O" RING - outer seal, end cover (1/16" dia.)

2шт.
