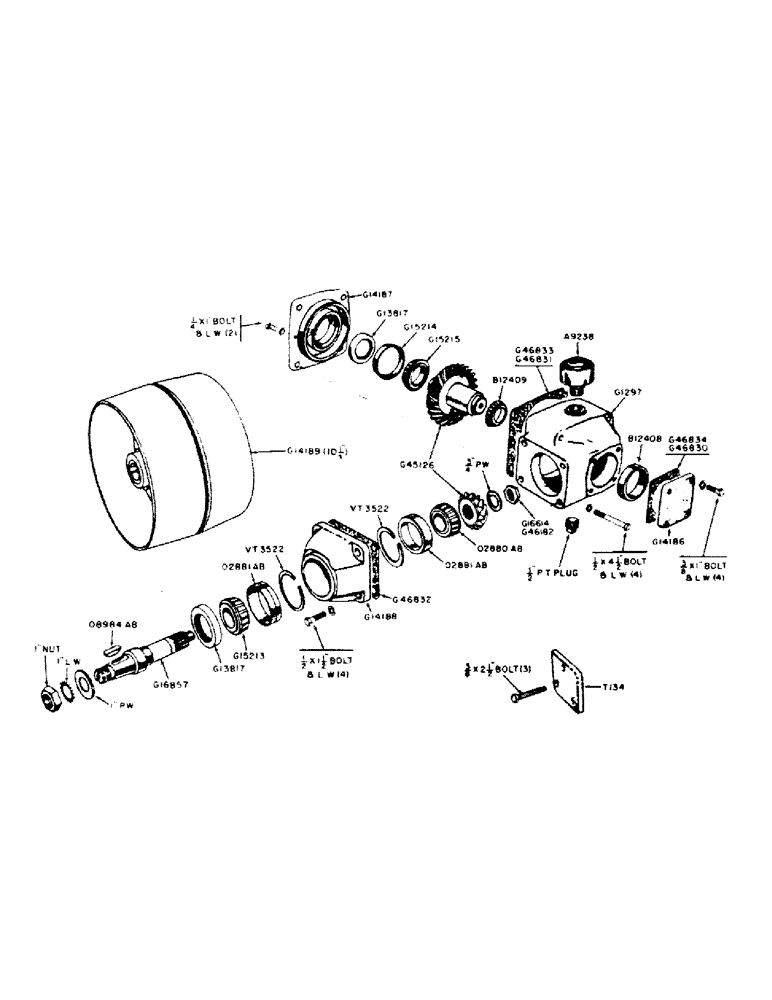

Запчасти Case IH 400B-SERIES (157) - REAR MOUNTED BELT PULLEY, 400B SERIES TRACTORS (06) - POWER TRAIN

A75179

BREATHER

- oil, pulley housing (Replaces A9238)

1шт.

A10059

FILTER, ELEMENT

ELEMENT - breather

1шт.

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - rear bearing (Timken #LM67010)

1шт.

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing, drive gear (Timken #LM67048)

1шт.

G1287

HOUSING (Use G14186)

1шт.

G1288

HOUSING (Use G14188)

1шт.

G1289

HOUSING (Use G14187)

1шт.

G1297

HOUSING - belt pulley

1шт.

1/2" std. sq. hd. pipe plug

1шт.

1/2" x 4-1/2" N.C. hex. hd. bolt w/lockwasher

4шт.

G13817

SEAL ASSY.

OIL SEAL - front bearing carrier and pulley shaft

2шт.

G14186

HOUSING - rear bearing (Includes B12408 bearing cup)

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

4шт.

G14187

HOUSING - front bearing (Includes G15214 bearing cup)

1шт.

1/4" x 1" N.C. hex. hd. bolt w/lockwasher

2шт.

G14188

HOUSING - output (Includes bearing cups and snap rings)

1шт.

1/2" x 1-1/2" N.C. hex. hd. bolt w/hex. nut and lockwasher

4шт.

G14189

PULLEY - belt (10-1/4" O.D.)

1шт.

G15213

ROLLER BEARING

CONE - outer bearing, pulley shaft (Timken #2585)

1шт.

G15214

BEARING CUP

CUP - front bearing (Timken #LM603011)

1шт.

G15215

ROLLER BEARING

CONE - bearing, drive gear (Timken #LM603049)

1шт.

G16614

NUT

- lock, drive pinion (3/4 - 24 threads) See G46182

1шт.

G16857

SHAFT - pulley (Both coarse and fine threads have been used. See G16614 and G46184 nuts)

1шт.

1" N.F. hex. nut w/ET Shakeproof lockwasher and plain washer

1шт.

G45126

GEAR - pinion drive (matched set of 2 w/stub shaft)

1шт.

G46182

NUT - lock, drive pinion (3/4" - 20 threads) See G16614

1шт.

3/4" SAE plain washer

1шт.

G46830

GASKET - rear bearing carrier (.005") Blue

1шт.

G46831

GASKET - front bearing carrier (.005") Blue

1шт.

G46832

GASKET - output housing (.003") Green

1шт.

G46833

GASKET

- front bearing carrier (.010") Brown

1шт.

G46834

GASKET - rear bearing carrier (.010") Brown

1шт.

A26679

ROLLER BEARING,1.25" ID x 0.9983"

CONE - inner bearing, pulley shaft (Timken #2580) (Replaces 2880AB)

1шт.

A26680

ROLLER BEARING,2.7510" OD x 0.75"

CUP - bearing, pulley shaft (Timken #2523) (Replaces 2881AB)

2шт.

126-144

WOODRUFF KEY,#129, 3/8" x 2 1/8", HT

KEY - pulley shaft (Woodruff) (Replaces 8984AB)

1шт.

VT3522

X

SNAP RING - bearing cup, pulley shaft

2шт.

T134

PULLER - belt pulley

1шт.

3/8" x 2-1/2" N.C. hex. hd. bolt

3шт.
