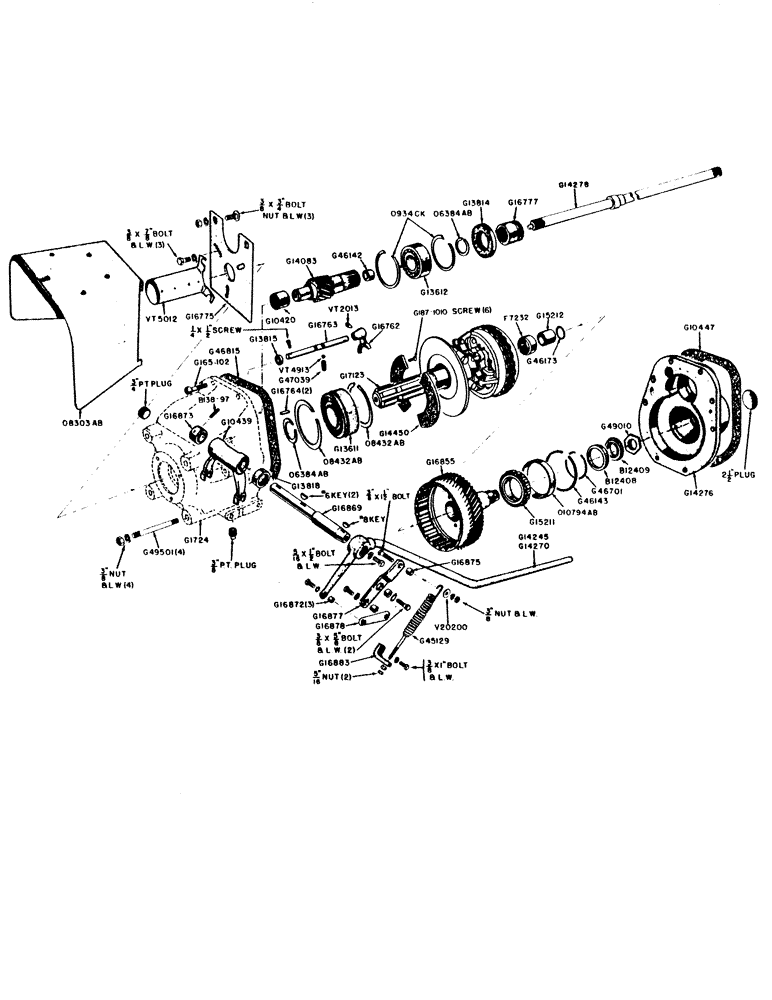

Запчасти Case IH 400B-SERIES (155A) - CONTROL LINKAGE, INDEPENDENT P.T.O., 400B SERIES TRACTORS (06) - POWER TRAIN

G10439

COUPLING

YOKE - shift

1шт.

#6 Woodruff key

2шт.

G13818

OIL RESERVOIR

OIL SEAL - clutch lever shaft

1шт.

G14245

LEVER - control, P.T.O. clutch (410B utility)

1шт.

G14270

LEVER - control, P.T.O. clutch (411B Gen. Purpose)

1шт.

G16869

SHAFT

- shift yoke

1шт.

5/16" x 1/2" NC hex. hd. bolt w/lockwasher

1шт.

#8 Woodruff key

1шт.

G16872

BUSHING - pivot

3шт.

G16873

SPACER - yoke shaft

1шт.

G16875

RETAINER - spring, clutch control lever

1шт.

3/8" x 1-1/2" NC hex. hd. bolt w/hex. nut, lockwasher and plain washer

1шт.

G16877

LINK - pivot, over - center

1шт.

3/8" x 3/4" NC hex. hd. bolt

1шт.

3/8" plain washer

1шт.

G16878

LINK - connecting, control lever to pivot link

1шт.

3/8" x 5/8" NF hex. hd. bolt

2шт.

G16883

BRACKET - anchor, over center spring

1шт.

3/8" x 1" NC hex. hd. bolt w/lockwasher

1шт.

G45129

SPRING

- over-center

1шт.

5/16" NC hex. nut

1шт.

5/16" NC hex. jam nut

1шт.

V20200

WASHER - spacer, control lever (1" OD x 11/32" ID x 1/16")

1шт.

B138-97

ROLL PIN - shift yoke to shaft (3/16" x 1-1/8")

1шт.
