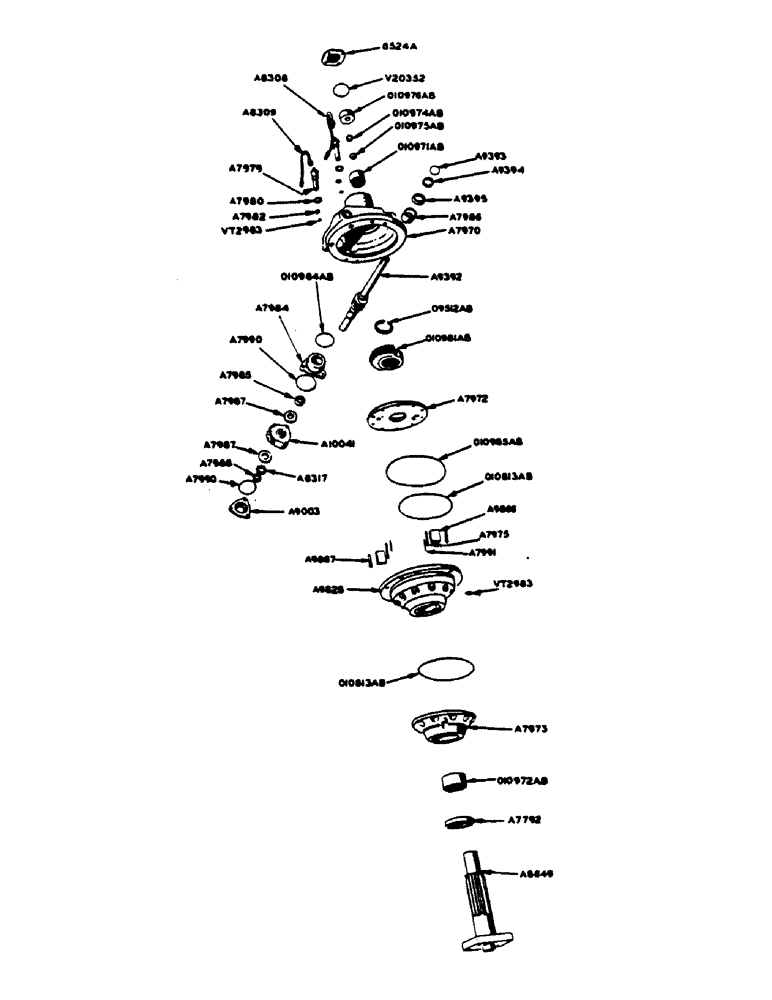

Запчасти Case IH 400-SERIES (158) - POWER STEERING GEAR, FOR GENERAL PURPOSE AND HIGH CLEARANCE TRACTORS (05) - STEERING

A7792

X

OIL SEAL - steering spindle upper

1шт.

A7970

HOUSING - steering gear

1шт.

1/2" sq. hd. pipe plug

1шт.

1/8" sq hd. pipe plug

1шт.

A7971

BODY - (use A9828)

1шт.

A7972

COVER - power steering vane, upper

1шт.

1/4" hex. ctsk. headless pipe plug

1шт.

A7973

COVER - power steering vane, lower

1шт.

1/4" hex. ctsk. headless pipe plug

1шт.

7/16" x 2-3/4" N.C. hex. socket hd. cap screw

10шт.

A7974

X

VANE - stationary (use 1-A9866 and 1-A9867)

1шт.

A7975

PIN

DOWEL PIN - stationary vane

2шт.

A7978

VANE - torque motor (use A9828)

1шт.

A7979

CONNECTOR - vane inlet and outlet

2шт.

A7980

LOCK NUT

LOCKNUT - vane inlet and outlet connector

2шт.

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - steering vane inlet and outlet connector

2шт.

A7983

SHAFT - (use A9392 shaft with A9003 cap)

1шт.

A7984

CARRIER - worm shaft bearing

1шт.

A7985

BEARING, NEEDLE,1.25" ID x 1.5" OD x 0.75"

BEARING - needle, steering worm shaft, front (Torrington no. GB-2012-OH)

1шт.

A7986

NEEDLE BEARING,1" ID x 1.25" OD x 3"

BEARING - needle, steering worm shaft, rear (Torrington no. GB-1612-OH)

1шт.

A7987

X

BEARING - thrust, steering worm shaft (Aetna no. A2194)

2шт.

A7988

NUT

- steering worm shaft thrust bearing

1шт.

A7989

CAP - steering valve (use A9003)

1шт.

A7990

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

"O" RING - steering valve cap and worm shaft bearing carrier

2шт.

A7991

X

SEAL - power steering vane hub

2шт.

A8308

TUBE

- power steering valve to housing, long

1шт.

A8309

TUBE - power steering valve to housing, short

1шт.

A8317

LOCK ASSY

LOCK - steering worm shaft nut

1шт.

A8342

PLATE - to adjust steering worm bearings

1шт.

A8352

ARBOR - for pressing in 010972AB needle bearing into A7973

1шт.

A8354

ARBOR - for pressing 010971AB needle bearing into A7970 housing

1шт.

A8649

SPINDLE - steering, upper section (4-1/32" spline)

1шт.

A9003

CAP - power steering valve

1шт.

3/8" x 3-3/4" N.C. hex. bolt w/lockwasher

3шт.

A9374

VALVE - power steering (use A10041)

1шт.

A9392

SHAFT - steering worm

1шт.

No. 11 Woodruff key

1шт.

A9393

SEAL

- dust, steering worm shaft

1шт.

A9394

RING

- quad, steering worm shaft

1шт.

A9395

CARRIER

- steering gear housing dust seal

1шт.

A9817

ARBOR - for pressing in A7985 steering worm shaft needle bearing into carrier

1шт.

A9818

ARBOR - for pressing in A7986 steering worm shaft needle bearing into housing

1шт.

A9828

1шт.

3/8" x 1-1/2" N.C. hex. bolt w/lockwasher

2шт.

5/8" x 2-1/4" N.C. hex. bolt w/lockwasher

6шт.

A9866

PIVOT

VANE - stationary

2шт.

A9867

SEAL

- stationary vane

2шт.

A10041

VALVE - power steering

1шт.

6524A

COVER - steering gear housing top

1шт.

5/16" x 7/8" N.C. hex. bolt w/lockwasher

4шт.

1/8" sq. hd. pipe plug

1шт.

O9512AB

X

SNAP RING - steering spindle upper section

1шт.

O10813AB

X

"O" RING - power steering vane body

2шт.

O10971AB

BEARING, ROLLER

BEARING - needle, steering upper spindle (small) (Torrington no. B-2824)

1шт.

O10972AB

X

BEARING - needle, steering upper spindle (large) (Torrington no. NB-37)

1шт.

O10974AB

X

BALL - thrust, steering upper spindle

1шт.

O10975AB

SADDLE - steering upper spindle thrust ball

1шт.

O10976AB

PLUG - steering upper spindle thrust ball retaining

1шт.

O10981AB

GEAR - steering worm

1шт.

O10984AB

X

"O" RING - steering worm shaft bearing carrier

1шт.

O10985AB

X

"O" RING - steering gear vane cover

1шт.

V20352

SCREW

"O" RING - steering gear housing top cover

1шт.

VT2983

X

"O" RING - power steering vane cover bolt

10шт.

VT2983

X

"O" RING - steering vane inlet and outlet connection seal

2шт.
