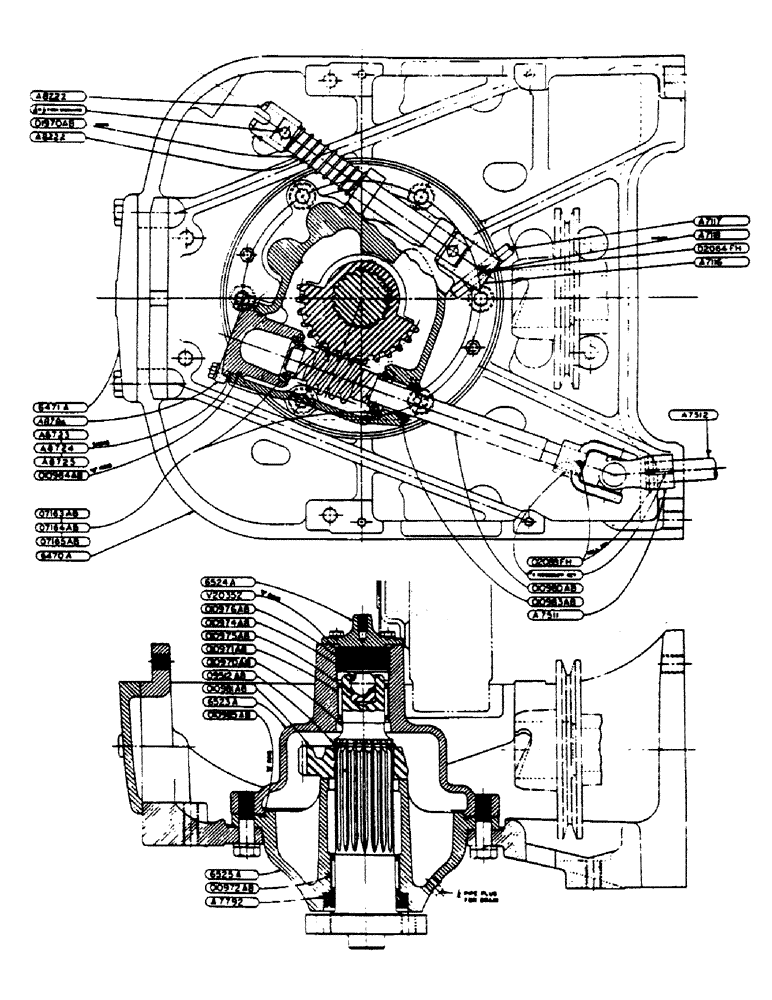

Запчасти Case IH 400-SERIES (151) - MECHANICAL STEERING ASSEMBLY, FOR GENERAL PURPOSE AND HIGH CLEARANCE TRACTORS (05) - STEERING
№
Артикул
Название
Примечание
Количество
A7075
GASKET
GASKET - rubber, steering worm shaft
1шт.
A7792
X
OIL SEAL - steering upper spindle
1шт.
A8352
ARBOR - for pressing in 010972AB needle bearing into 6525A
1шт.
A8354
ARBOR - for pressing 010971AB needle bearing into 6523A housing
1шт.
A8723
SHIM,.003" Thk
Steering worm shaft brg. carrier .003" Thk
4шт.
A8724
SHIM - steering worm shaft bearing carrier (.005")
3шт.
A8725
SHIM,.010" Thk
Steering worm shaft brg. carrier .010" Thk
4шт.
A8796
CARRIER - steering worm shaft bearing (tractor no. 8063999 and after) (see 6526A)
1шт.
6523A
HOUSING - steering gear
1шт.
1/8" - 90 degree Lincoln fitting No. 5400
1шт.
3/8" x 1-1/2" N.C. hex. bolt with lockwasher
2шт.
6524A
COVER - steering gear housing, top
1шт.
5/16" x 7/8" N.C. hex. bolt with lockwasher
4шт.
1/8" sq. hd. pipe plug
1шт.
6525A
HOUSING - steering upper spindle support
1шт.
5/8" x 2-1/4" N.C. hex. bolt with lockwasher
6шт.
1/4" sq. hd. pipe plug
1шт.
6526A
CARRIER - steering worm shaft bearing (prior to tractor no. 8063999) (see A8796)
1шт.
3/8" x 1-1/2" N.C. hex. bolt with lockwasher
3шт.
O7163AB
X
ROLLER ASSEMBLY - steering gear bearing (Timken No. 11BC)
2шт.
O7164AB
X
CONE - steering gear bearing (Timken No. 12CB)
2шт.
O7165AB
X
CUP - steering gear bearing (Timken No. 13C)
2шт.
O7166AB
X
BREATHER - steering gear housing
1шт.
O9512AB
X
SNAP RING - steering upper spindle (.109")
1шт.
O10970AB
SPINDLE - steering, upper section (1-9/16" spline)
1шт.
O10971AB
BEARING, ROLLER
BEARING - needle, steering upper spindle (small) (Torrington #B-2824)
1шт.
O10972AB
X
BEARING - needle, steering upper spindle (large) (Torrington #NB-37)
1шт.
O10974AB
X
BALL - thrust, steering upper spindle (1" dia.)
1шт.
O10975AB
SADDLE - steering upper spindle thrust ball
1шт.
O10976AB
PLUG - steering upper spindle thrust ball retaining
1шт.
O10980AB
WORM AND SHAFT - steering
1шт.
No. 11 Woodruff key
1шт.
O10981AB
GEAR - steering worm
1шт.
O10983AB
X
OIL SEAL - steering worm shaft
1шт.
O10984AB
X
"O" RING - steering worm shaft bearing carrier
1шт.
O10985AB
X
"O" RING - steering gear housing
1шт.
O243N
NIPPLE - breather, steering gear housing (1/2" x 4-1/8" std. black pipe)
1шт.
1/2" x 1/4" std. pipe reducing coupling
1шт.
V20352
SCREW
"O" RING - steering gear housing top cover
1шт.
Выбрано товаров: 39
