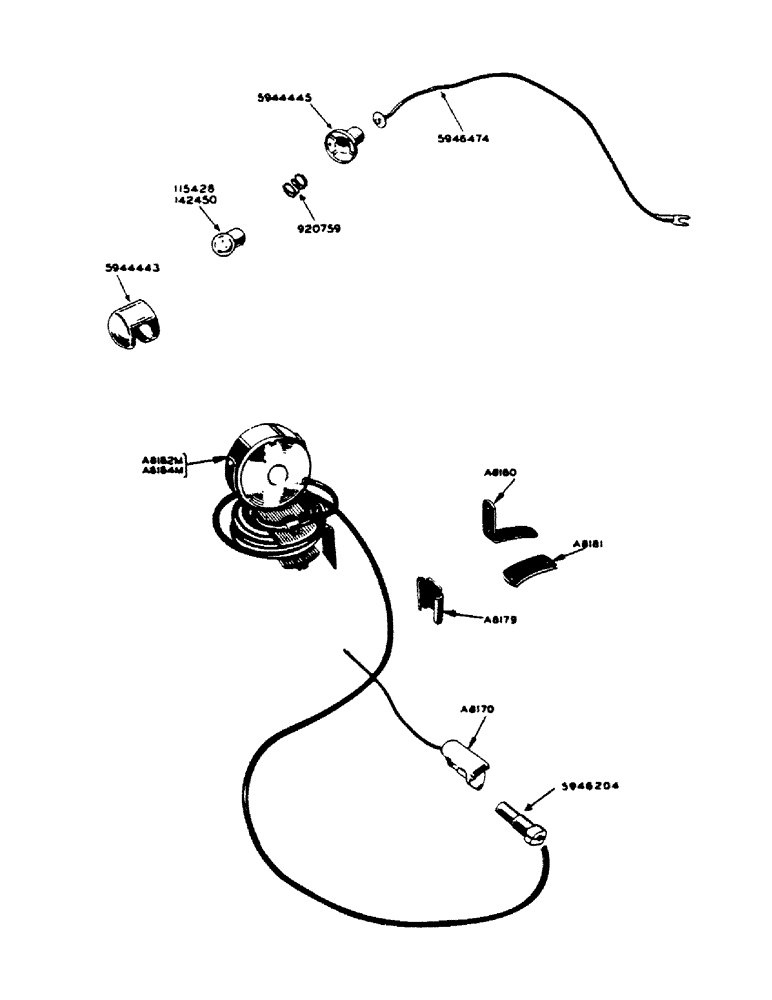

Запчасти Case IH 400-SERIES (090) - PARTS FOR A7642 AND A7656 DASH LAMPS AND WARNING LAMP (04) - ELECTRICAL SYSTEMS

115428

BULB - 3 C.P. - 6 volt (Mfg. #63) (for spark ignition engines)

1шт.

142450

BULB,C2R, #67, 13.5V

- 3 C.P. - 12 volt (Mfg. #67) (for diesel engines)

1шт.

920759

SPRING

1шт.

5944443

COVER

1шт.

5944445

SOCKET

1шт.

5946474

WIRE ASSEMBLY

1шт.

A8170

SOCKET

- electrical outlet, warning lamp

1шт.

No. 10 - 24 x 5/8" N.C. rhd. mach. screw w/nut and lockwasher, warning lamp

2шт.

A8177

LAMP WARNING - (6 volt) (use A8182M machinery attachement)

1шт.

A8178

LAMP WARNING - (12 volt) (use A8184M machinery attachment)

1шт.

A8179

SOCKET

- warning lamp bracket

2шт.

5/16" x 5/8" N.C. carr. bolt w/hex. nut and lockwasher, warning lamp

4шт.

A8180

SUPPORT - warning lamp socket

1шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher, warning lamp

2шт.

A8181

REINFORCEMENT - fender, for lamp socket support, warning

1шт.

A8182M

LAMP - warning, 6 volt (machinery item) (consists of lamp and 1-A8179, 1-A8180 and 1-A8181 with bolts, nuts and lockwasher)

1шт.

A8184M

LAMP - warning, 12 volt (machinery item) (consists of lamps and 1-8179, 1-A8181 with bolts, nuts and lockwashers)

1шт.
