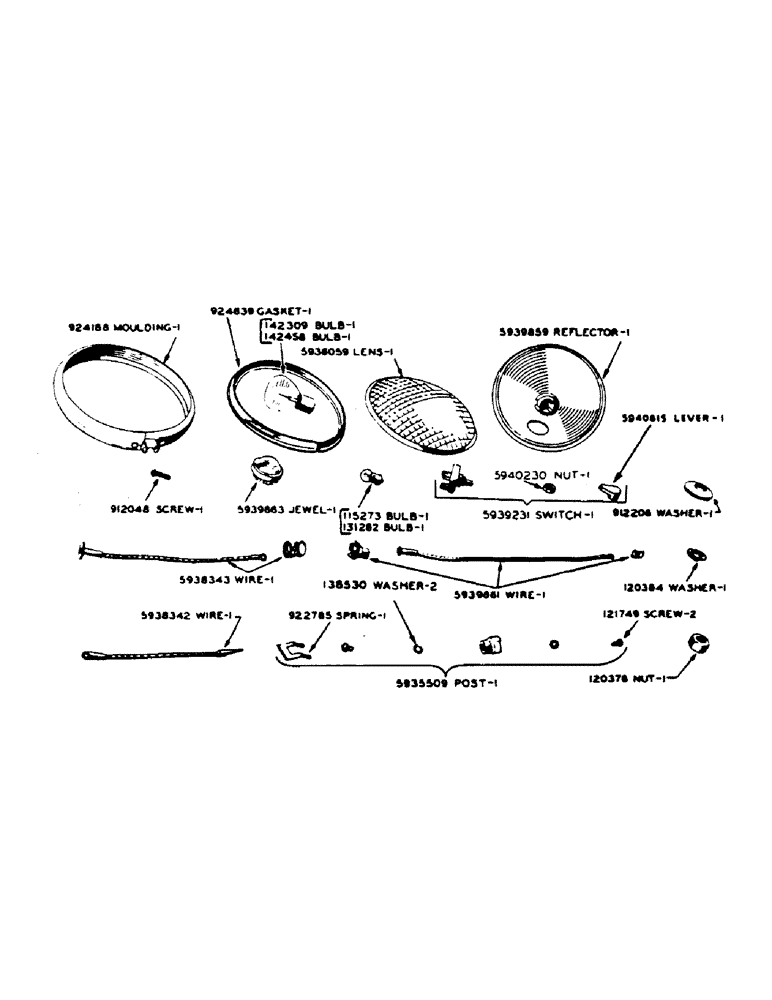

Запчасти Case IH 400-SERIES (089) - PARTS FOR 08810 AB AND 09897 AB COMBINATION FLOOD AND TAIL LAMP (04) - ELECTRICAL SYSTEMS

115273

BULB - (1 C.P., single contact, 6-8 volt, mfg. no. 51)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Mounting bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , Mounting bolt 1/2"

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal

2шт.

131282

BULB,C2V, #53, 14.4V

- (1 C.P., single contact, 12-16 volt, mfg. no. 53)

1шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Shakeproof for terminal screw Int Tooth, #8

2шт.

B50206

LAMP

BULB - (32 C.P., single contact, 6-8 volt, mfg. no. 1133L)

1шт.

A41264

BULB,#1156, 12V

- (32 C.P., single contact, 12-16 volt, mfg. no. 1143)

1шт.

912048

SCREW - molding

1шт.

912206

WASHER - mounting plate bearing

1шт.

922785

SUPPORT

SPRING - terminal post

1шт.

924188

MOLDING - assembly

1шт.

924639

GASKET - reflector seal

1шт.

5935509

TERMINAL POST - complete

1шт.

5936059

LENS

1шт.

5938342

WIRE ASSEMBLY - switch to terminal post

1шт.

5938343

WIRE ASSEMBLY - from 32 C.P., Serial Range: bulb-switch

1шт.

5939231

SWITCH ASSEMBLY

1шт.

5939859

REFELCTOR

1шт.

5939861

SOCKET - with wiring assembly, from switch to red light

1шт.

5939863

JEWEL ASSEMBLY

1шт.

5940230

NUT - retaining for switch

1шт.

5940815

LEVER - with screw

1шт.
