Запчасти Case IH 400-SERIES (088) - REAR LAMP AND OUTLET SOCKET (04) - ELECTRICAL SYSTEMS

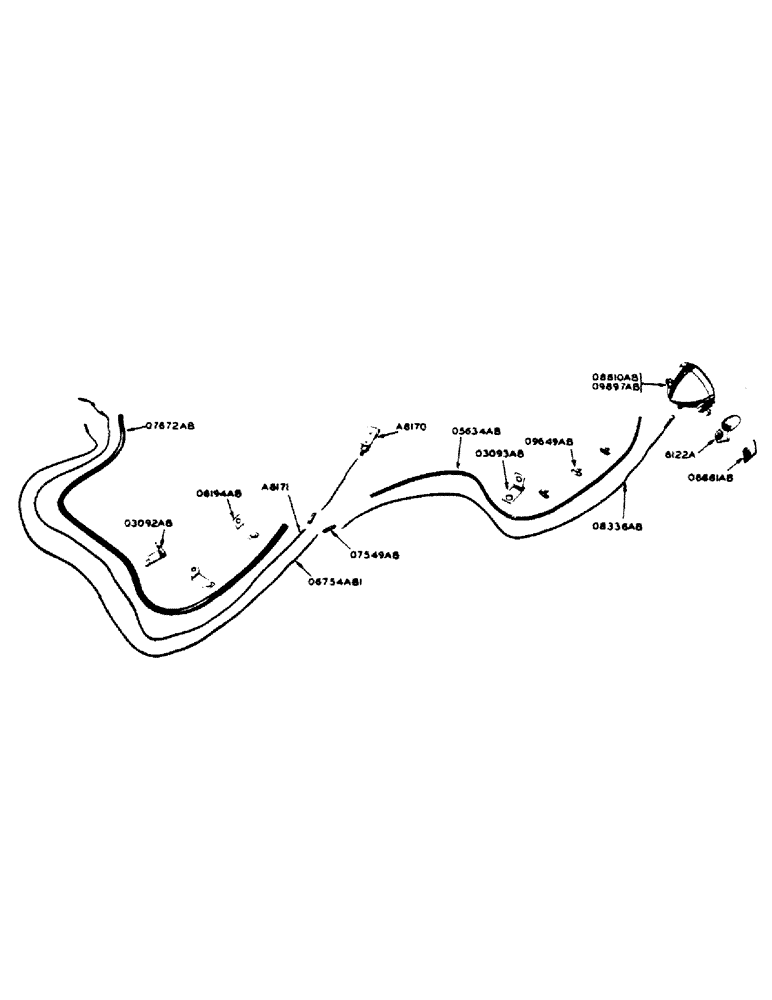

Схема запчастей Case IH 400-SERIES - (088) - REAR LAMP AND OUTLET SOCKET (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

A7922

CLIP

- tail lamp rear wire, on fuel tank support (for tractors without outlet socket) (see 03092AB)

1шт.

A7922

CLIP

- tail lamp front wire, on fuel tank support (for "400" special tractors)

1шт.

A8170

SOCKET

- electrical outlet

1шт.

No. 10 - 24 x 5/8" N.C. rhd. mach. screw w/nut and lockwasher

2шт.

A8171

WIRE - light switch (current side) to outlet socket (62" long) (for general purpose and std. 4 - wheel tractors) (see A9044)

1шт.

9 ampere SAE standard fuse

1шт.

A8212

WIRE - fender rear lamp (80-1/2" long) (for "400" Special tractors)

1шт.

A8213

LOOM - rear lamp wire (78-1/2" long) (for "400" Special tractors and orchard tractors)

1шт.

A8338

SUPPORT - tail lamp bracket (for high clearance tractors)

1шт.

A8581

WIRE - tail lamp front (24-1/2" long) (for "400" Special tractors)

1шт.

A9044

WIRE - light switch to outlet socket (current side) (34" long) (for orchard tractors) (see A8171)

1шт.

9 ampere SAE standard fuse

1шт.

6122A

X

BRACKET - tail lamp (for std. 4-wheel and General Purpose tractors)

1шт.

3/8" x 1-1/2" N.F. hex. bolt with hex. nut and lockwasher

1шт.

6123A

X

BRACKET - tail lamp (for orchard, high clearance and "400" Special tractors)

1шт.

3/8" x 1-3/4" N.F. hex. bolt with hex. nut and lockwasher

1шт.

O2999AB

WIRE - tail lamp to light switch (80" long) (for orchard tractors)

1шт.

O3092AB

CLIP - tail lamp and warning lamp wire (on fuel tank support) (see A7922)

1шт.

O3093AB

CLIP - tail lamp and warning lamp wire (on axle housing) (not for orchard)

1шт.

O3093AB

CLIP - tail lamp front wire on axle housing, tail lamp rear wire on axle housing and tail lamp rear wire on hydraulic housing (for high clearance tractors)

3шт.

O3093AB

CLIP - electrical outlet connector wire, on L.H. upper hydraulic housing bolt (for orchard tractors)

1шт.

O3093AB

CLIP - outlet socket wire, on hydraulic housing (for "400" Special tractors)

1шт.

O5634AB

LOOM - tail lamp rear wire

1шт.

O5636AB

LOOM - tail lamp front wire (for tractors without outlet socket) (see 07672AB)

1шт.

O5636AB

LOOM - for A8171 outlet socket wire (56-1/2" long) (for "400" Special tractors)

1шт.

O6174AB

LOOM - tail lamp front wire (51" long) (for high clearance tractors)

1шт.

O6182AB

CLIP - rear wire (5 on fender and 2 on fender front support angle) (for "400" Special tractors)

7шт.

1/4" x 1/2" N.C. rhd. mach. screw with hex. nut and lockwasher

7шт.

O6194AB

CLIP - rear lamp wire on transmission case top cover and front cover

2шт.

O6194AB

CLIP - tail lamp front wire, on transmission case front cover (high clearance tractors)

1шт.

O6194AB

CLIP - electrical outlet connector wire, on seat bracket (for orchard tractors)

1шт.

O6754AB1

WIRE - tail lamp, front (62" long) (not for orchard models)

1шт.

O7407AB

LOOM - electrical outlet connector (29" long) (for orchard tractors)

1шт.

O7408AB

LOOM - tail lamp rear wire (26" long) (for high clearance tractors)

1шт.

O7473AB

WIRE - tail lamp, rear (28" long) (for high clearance tractors)

1шт.

O7549AB

CONNECTOR - two wire line (for tractors with outlet socket)

2шт.

O7549AB

CONNECTOR - two wire line (for tractors without outlet socket)

1шт.

O7672AB

LOOM - tail lamp and warning lamp front wire (see 05636AB)

1шт.

O8336AB

WIRE - tail lamp, rear (43-1/2" long) (not for orchard models)

1шт.

O8810AB

LAMP

- combination flood and tail, 6 volt (for spark ignition tractors)

1шт.

O8814AB

LOOM - outlet socket wire (8" long)

1шт.

O8814AB

LOOM - electrical outlet socket and tail lamp front wire (8" long) (for "400" Special tractors)

2шт.

O8817AB

CLIP - tail lamp wire (on L.H. fender rear support angle) (for orchard tractors)

4шт.

O8881AB

REINFORCEMENT - fender lamp bracket (not for orchard models)

1шт.

O9498AB

BRACKET - electrical outlet socket (for "400" Special tractors and orchard tractors)

1шт.

1/2" x 3/4" N.C. hex. bolt with lockwasher

1шт.

O9649AB

CLIP - rear lamp rear wire, on fender

3шт.

1/4" x 3/4" N.C. truss hd. mach. screw w/hex. nut and lockwasher

3шт.

O9897AB

X

LAMP - combination flood and tail, 12 volt (for diesel tractors)

1шт.

Выбрано товаров: 49
