Запчасти Case IH 400-SERIES (086) - FRONT TRACTOR LAMP (04) - ELECTRICAL SYSTEMS

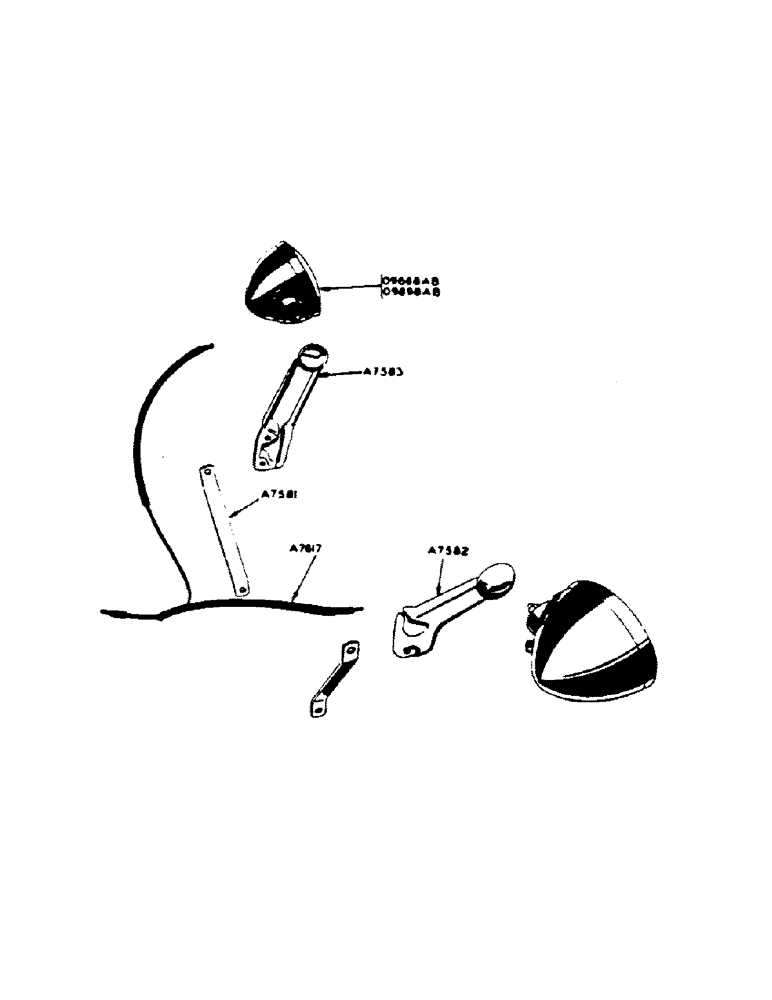

Схема запчастей Case IH 400-SERIES - (086) - FRONT TRACTOR LAMP (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

A7581

STRAP - head lamp support (for all but orchard tractors) (see A8156)

2шт.

3/8" x 3/4" N.C. hex. bolt with lockwasher

2шт.

3/8" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher (cadmium plated)

2шт.

A7582

BRACKET - head lamp, R. H. (for general purpose and high clearance tractors)

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher (cadmium plated)

1шт.

A7583

BRACKET - head lamp, L.H. (for general purpose and high clearance tractors)

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher (cadmium plated)

1шт.

A7617

WIRE - head lamp to light switch (for general purpose and high clearance tractors)

1шт.

A7949

WIRE - head lamp to light switch (for standard 4-wheel tractors)

1шт.

A7959

REINFORCEMENT - head lamp (for standard 4-wheel tractors)

2шт.

A8156

STRAP - head lamp support and radiator shutter control cable support (for tractors with radiator shutter) (see A7581)

1шт.

A9039

BRACKET - head lamp (for orchard models)

1шт.

5/8" x 1-1/4" N.C. hex. bolt w/lockwasher

2шт.

A9040

WIRE - head lamp (for orchard models)

1шт.

A9041

LOOM - master wire (60" long) (for orchard models)

1шт.

6122A

X

BRACKET - head lamp (for standard 4-wheel tractors)

2шт.

3/8" x 1-3/8" N.F. hex. bolt w/hex. nut and lockwasher (cadmium plated)

2шт.

6123A

X

BRACKET - head lamp (for orchard models)

2шт.

3/8" x 1-3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

O2825AB

X

CLIP - head lamp to light switch wire (on radiator upper shroud) (for standard 4-wheel and orchard tractors)

2шт.

1/4" x 1/2" N.C. rhd. mach. screw w/hex. nut and lockwasher

2шт.

O5634AB

LOOM - head lamp to light switch wire (39 1/2" long) (for orchard models)

1шт.

O6361AB

CLIP - head lamp wire, on radiator side members (for orchard models)

2шт.

O9668AB

LAMP - head, sealed unit, 6 volt, side mounting, R.H. or L.H. (for spark ignition tractors)

2шт.

O9898AB

X

LAMP - head, sealed unit, 12 volt, side mounting, R.H. or L.H (for diesel tractors)

2шт.

Выбрано товаров: 25
