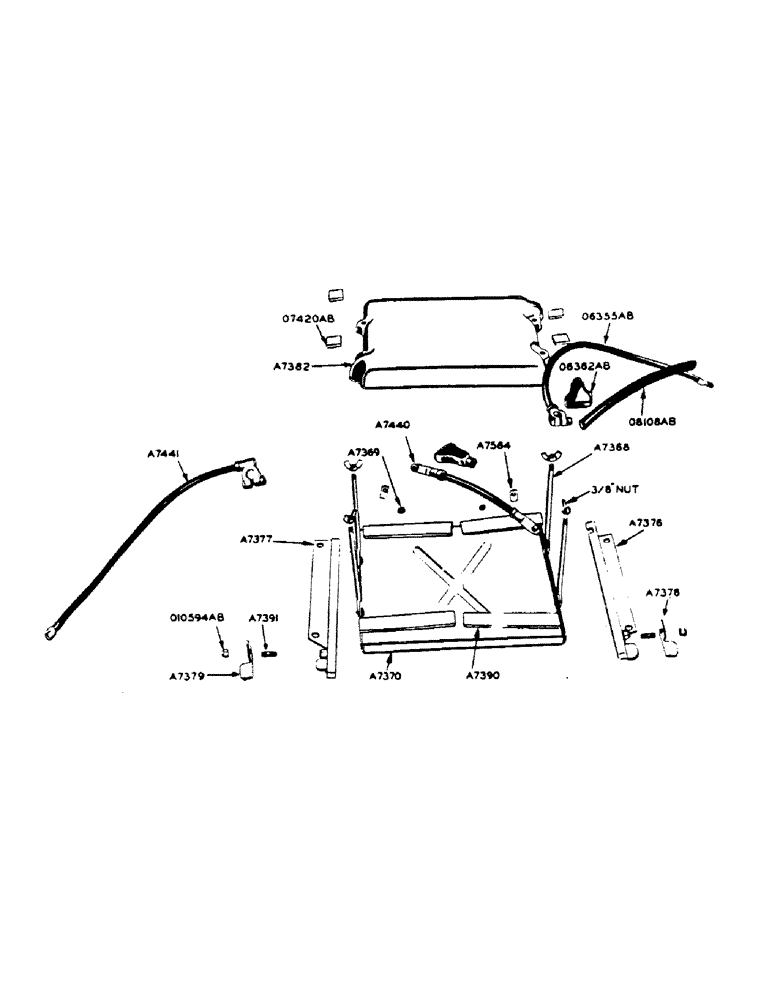

Запчасти Case IH 400-SERIES (085) - BATTERY, FOR DIESEL TRACTORS (04) - ELECTRICAL SYSTEMS

BATTERY - storage, 6 volt (exide #xf-19) (not furnished by J.I. Case Co.)

2шт.

A7368

BOLT - battery hold down (for all but orchard models)

4шт.

5/16" x 5/8" truss hd. rivet

4шт.

3/8" N.C. wing nut - zinc plated

4шт.

A7368

BOLT - battery hold down (for orchard models)

2шт.

5/16" x 5/8" truss hd. rivet

1шт.

5/16" x 3/4" N.F. hex. bolt with hex. nut and lockwasher

1шт.

3/8" plain washer

2шт.

3/8" N.C. wing nut - zinc plated

2шт.

A7369

BUMPER - rubber, for battery tray

2шт.

A7370

TRAY - battery, with hold down bolts and bumpers (for all but orchard models) (see A9109)

1шт.

5/16" x 3/4" carr. bolt with N.C. hex nut and lockwasher

2шт.

3/8" N.C. wing nut - zinc plated

4шт.

A7376

RAIL - battery tray, front, with latch and stud (for all but orchard models)

1шт.

1/2" x 1" N.C. hex. bolt with lockwasher

2шт.

A7377

RAIL - battery tray, rear, with latch and stud (for all but orchard models)

1шт.

1/2" x 1-1/2" N.C. hex. bolt with lockwasher

2шт.

A7378

LATCH - battery tray, front

1шт.

A7379

LATCH - battery tray, rear

1шт.

A7382

COVER - battery (for all but orchard models)

1шт.

A7390

PAD - rubber, for battery

4шт.

A7391

STUD

- battery tray latch (for all but orchard models)

2шт.

A7440

CABLE

-, Serial Range: battery-battery

1шт.

A7441

CABLE

- battery ground

1шт.

A7584

STRAP - battery tray stop (for all but orchard models)

2шт.

A9101

SPARE PART

SUPPORT - battery (for orchard models)

1шт.

1/2" x 1" N.C. hex. bolt with lockwasher

2шт.

A9102

STRAP - battery rail support (for orchard models)

1шт.

3/8" x 1" N.F. hex. bolt with hex nut and lockwasher

2шт.

A9103

CLIP - battery tray guide (for orchard models)

2шт.

3/8" x 1" N.F. hex. bolt with hex. nut and lockwasher

2шт.

A9107

ANGLE - battery tray stop (for orchard models)

1шт.

A9108

STRAP - battery tray stop (for orchard models)

2шт.

5/16" x 3/4" N.F. hex. bolt with hex. nut and lockwasher

2шт.

A9109

TRAY - battery, with hold down bolts and bumpers (for orhard models) (see A7370)

1шт.

3/8" N.C. wing nut - zinc plated

2шт.

A9114

RAIL - battery tray, R.H. (for orchard models)

1шт.

3/8" x 1" N.F. hex. bolt with hex. nut and lockwasher

1шт.

3/8" x 1-1/4" N.F. hex. bolt with hex. nut and lockwasher

1шт.

A9115

RAIL - battery tray, L.H. (for orchard models)

1шт.

3/8" x 1" N.F. hex. bolt with hex. nut and lockwasher

1шт.

3/8" x 1-1/4" N.F. hex. bolt with hex. nut and lockwasher

1шт.

A9119

FRAME - battery hold down (for orchard models)

1шт.

A9168

CABLE

- battery to starting motor (for orchard models) (see 06355AB)

1шт.

A9956

FUNNEL - for adding electrolyte (for dry charged battery)

1шт.

A9957

RING - code date stamping (for dry charged battery)

1шт.

O6194AB

CLIP - battery to starting motor cable, on clutch housing (for orchard models)

2шт.

1/2" x 3/4" N.C. hex. bolt with lockwasher

2шт.

O6355AB

X

CABLE - battery to starting motor (for all but orchard models) (see A9168)

1шт.

O6362AB

X

COVER - battery positive terminal

2шт.

O7420AB

X

PAD - rubber, for A7382 battery cover

4шт.

O7647AB

LOOM - battery to starting motor cable (22" long) (for orchard models) (see 08108AB)

1шт.

O8108AB

LOOM - battery to starting motor cable (14" long) (for all but orchard models) (see 07647AB)

1шт.

O10594AB

X

STOP NUT - battery tray latch stud (3/8" - 24 N.F. thrd.)

2шт.
