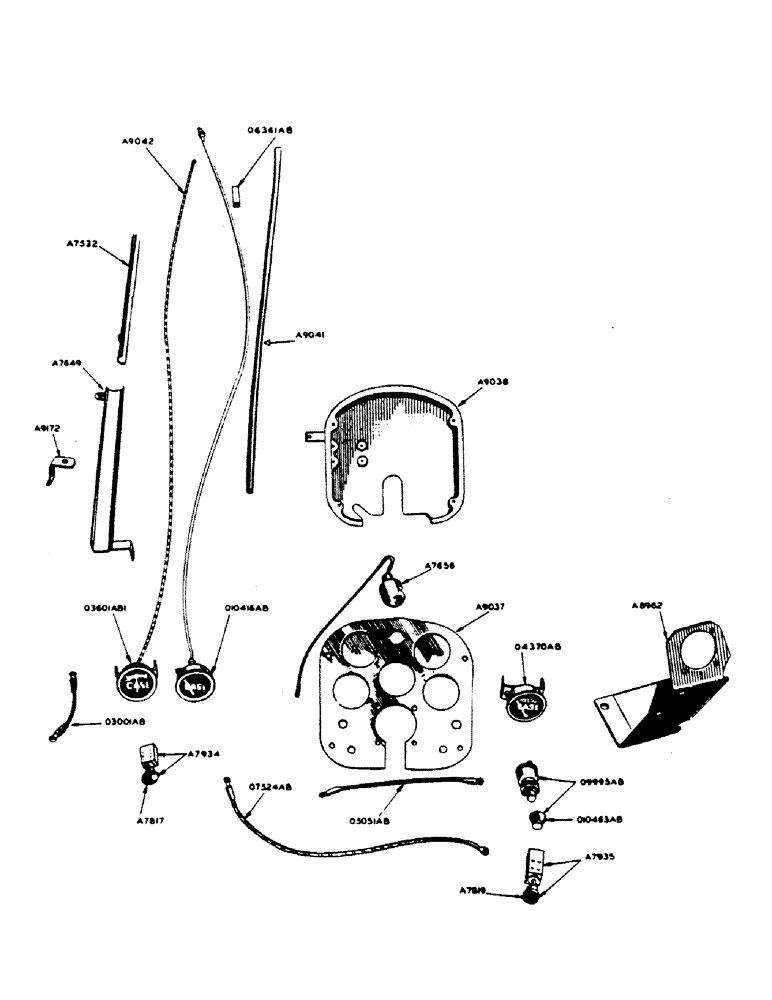

Запчасти Case IH 400-SERIES (080) - INSTR. PANEL & WIRES, FOR SPARK IGNITION ORCHARD TRACTORS AND GENERATOR AND STARTING MOTOR (04) - ELECTRICAL SYSTEMS

A7532

CONDUIT - for wires, fastens to cylinder block

1шт.

5/16" x 1/2" N.C. hex. bolt

2шт.

A7580

PANEL - instrument (all tractors except orchard) (see A8700 or A9037)

1шт.

1/4" x 1/2" N.C. truss hd. mach. screw (cadmium plated)

2шт.

1/4" x 3/4" N.C. truss hd. mach. screw with hex. nut (cadmium plated)

2шт.

1/4" shakeproof int. - ext. tooth lockwasher #4014-20-00 (cadmium plated)

4шт.

A7581

STRAP - instrument panel support (not for orchard models)

2шт.

3/8" x 3/4" N.C. hex. bolt with lockwasher

2шт.

3/8" x 1" N.F. hex. bolt with hex. nut and lockwasher (cadmium plated)

2шт.

A7642

LAMP

- dash (12 volt - 15" wire) (diesel only)

1шт.

#6 - 32 x 5/16" Parker-Kalon self tapping rhd. sheet metal screw (diesel only)

2шт.

A7643

MOLDING - rubber, instrument panel (not for orchard models)

2шт.

A7644

GAUGE

- fuel oil pressure (diesel only)

1шт.

A7649

CONDUIT - rear (L.H. side - bolts to fuel tank support) (see A8706)

1шт.

3/8" x 3/4" N.C. hex. bolt

1шт.

3/8" shakeproof ext. - int. tooth lockwasher #4020-26-00 (cadmium plated)

1шт.

5/16" x 5/8" N.C. truss hd. mach. screw with hex. nut

1шт.

5/16" shakeproof ext. - int. tooth lockwasher #4018-24-00

1шт.

A7656

X

LAMP - dash (6 volt - 15" wire) (spark ignition only)

1шт.

#6 - 32 x 5/16" Parker-Kalon self tapping rhd. sheet metal screw - type F (spark ignition only)

2шт.

A7776

LOOM - master, for wires underneath fuel tank (not for orchard models)

1шт.

A7817

KNOB

- light switch

1шт.

A7819

KNOB

- distributor ignition switch (spark ignition only)

1шт.

A7819

KNOB

- magneto ignition switch (spark ignition only)

1шт.

A7902

TUBE - fuel oil pressure gauge (1/8" tube x 58-1/2" long) (for all but orchard models) (see A8405) (diesel only)

1шт.

Imperial no. 68Fl connector (1/8" tube size x 1/8" pipe thrd.) (diesel only)

1шт.

Imperial no. 66FL female coupling (1/8" tube size x 1/8" pipe thrd.) (connects tube to gauge) (diesel only)

1шт.

A7934

SWITCH

- light, with A7817 knob

1шт.

A7935

SWITCH

- distributor ignition, with A7819 knob (see A9532) (spark ignition only)

1шт.

A8002

GAUGE ASSY.

GAUGE - fuel vacuum (for orchard models) (see A8214) (diesel only)

1шт.

A8214

GAUGE

- fuel vacuum (for all but orchard models) (see A8002) (diesel only)

1шт.

A8215

SUPPORT - fuel vacuum gauge (not for orchard models) (diesel only)

1шт.

1/2" x 1-3/4" N.C. hex. bolt (diesel only)

1шт.

A8216

TUBE

- fuel vacuum gage (73" long) (for all but orchard models) (see A9246) (diesel only)

1шт.

Imperial flex connector no. 68FL (1/8" tube size x 1/8" pipe thrd.) (from tube to vacuum gauge support) (diesel only)

1шт.

Imperial elbow no. 69FL (1/8" tube size x 1/8" pipe thrd.) (from tube to first stage filter tee) (diesel only)

1шт.

A8277

LOOM - fuel oil gauge tube and vacuum gauge tube (not for orchard models) (diesel only)

1шт.

A8405

TUBE - fuel oil pressure gauge (1/8" tube x 84" long) (for orchard models) (see A7902) (diesel only)

1шт.

Imperial brass #68FL connector (1/8" tube size x 1/8" pipe thrd.) (diesel only)

1шт.

Imperial brass #70FL female elbow (1/8" tube size x 1/8" P.T.) (diesel only)

1шт.

A8437

KIT

SWITCH - magneto ignition, with A7819 knob (see 08297AB) (spark ignition only)

1шт.

A8700

PANEL - instrument (for LP-gas tractors) (see A7580 or A9037) (spark ignition only)

1шт.

A8706

CONDUIT - rear, L.H. side (for LP-gas tractors) (see A7649) (spark ignition only)

1шт.

A9037

PANEL - instrument (for orchard models) (see A7580 or A8700)

1шт.

1/4" x 1/2" N.C. truss hd. mach. screw with lockwasher

4шт.

A9038

HOUSING - instrument panel (for orchard models)

1шт.

A9041

LOOM - master wire (60" long) (for orchard models)

1шт.

A9042

BOLT

WIRE - generator to ammeter (100" long) (for orchard models) (see 06418AB)

1шт.

A9172

BRACKET - conduit rear support (for orchard tractors)

1шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

A9246

TUBE - fuel vacuum gauge (94" long) (for orchard tractors) (see A8216) (diesel only)

1шт.

Imperial brass #69FL elbow (1/8" tube size x 1/8" pipe thrd.) (from tube to first stage filter tee) (diesel only)

1шт.

Imperial brass #70Fl female elbow (1/8" tube size x 1/8" pipe thrd.) (from tube to vacuum gauge) (diesel only)

1шт.

A9532

SWITCH - lock, distributor ignition (special) (see A7935) (spark ignition)

1шт.

O2347AB

CLIP - vacuum gauge tube, on cylinder block (for all but orchard tractors) (see 06168AB) (diesel only)

1шт.

O3001AB

WIRE - ammeter to light switch (5" long)

1шт.

O3001AB

WIRE - ammeter to starter switch (5" long) (for all but orchard tractors) (see 05051AB)

1шт.

O3601AB1

X

AMMETER

1шт.

O4370AB

X

GAUGE - lube oil pressure

1шт.

O5051AB

WIRE - starter switch to ammeter (9" long) (for orchard tractors) (see 03001AB)

1шт.

O6161AB

X

GAUGE - temperature (for all but orchard tractors) (see 010416AB)

1шт.

O6168AB

CLIP - vacuum gauge tube, on cylinder block (for orchard tractors) (see 02347AB) (diesel only)

1шт.

O6361AB

CLIP - temperature gauge tube (on water manifold)

1шт.

O6418AB

WIRE - ammeter to generator (76" long) (for all but orchard models) (see A9042)

1шт.

O7524AB

WIRE - ammeter to ignition switch (17-1/4" long) (spark ignition only)

1шт.

O8297AB

SWITCH - lock, magneto ignition (special) (see A8437) (spark ignition only)

1шт.

O8333AB

GROMMET - on instrument panel, for fuel tube (For LP-gas tractors) (spark ignition)

1шт.

O9995AB

X

SWITCH - starter with 010463AB boot

1шт.

O10416AB

GAUGE - temperature (for orchard tractors) (see 06161AB)

1шт.

O10463AB

BOOT

- rubber, for 09995AB starter switch

1шт.

A9042

BOLT

WIRE - generator to ammeter (100" long) (for orchard models) (see 06418AB)

1шт.

A10151

X

REGULATOR - voltage, for 010748AB 6 volt generator (Electric Auto-Lite no. VRR-4104A)

1шт.

O6418AB

WIRE - generator to ammeter (76" long) (for all but orchard models) (see A9042)

1шт.

O9872AB

STUD - generator belt adjusting strap

1шт.

3/8" N.F. hex. jam nut w/lockwasher, generator

1шт.

O10507AB

X

REGULATOR - voltage, for 010947AB 12 volt generator (Electric Auto-Lite no. VRT-4104A)

1шт.

O10747AB

STRAP - adjusting, for generator and power steering pump

1шт.

5/16" x 3/4" N.C. hex. hd. cap screw, generator

1шт.

5/16" no. 4018-24 shakeproof external - internal lockwasher, generator

1шт.

O10748AB

GENERATOR - 14-1/2 amps, 6 volt, 1/2" pulley (Electric Auto-Lite no. GHd-6001AF) (for spark ignition engines)

1шт.

O10749AB

CARRIER - generator

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher, generator

2шт.

5/8" light N.F. hex. nut w/lockwasher, generator

1шт.

O10947AB

GENERATOR - 10 amps, 12 volt, 1/2" pulley (Electric Auto-Lite no. GHH-6001J) (for diesel engines only)

1шт.

A7338

MOTOR - starting, 12 volt (Electric Auto-Lite no. MCK-4005) (for diesel engines only)

1шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher, starting motor

2шт.

1/2" x 2-3/4" N.C. hex. bolt w/lockwasher, starting motor

1шт.

A7342

MOTOR - starting, 6 volt (Electric Auto-Lite no. MAX-4095) (for spark ignition engines)

1шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher, starting motor

2шт.

1/2" x 2-3/4" N.C. hex. bolt w/lockwasher, starting motor

1шт.

A7658

WIRE - starter siwtch to starting motor (60" long) (for all but orchard models) (see A9043)

1шт.

A9043

GUIDE

WIRE - starter switch to starting motor (82-1/2" long) (for orchard models) (see A7658)

1шт.

O3001AB

WIRE - starter switch to ammeter (5" long) (for all but orchard models) (see 05051AB), starting motor

1шт.

A21753

CAP

NIPPLE - starting cable terminal, motor

1шт.

O5051AB

WIRE - starter switch to ammeter (9" long) (for orchard models) (see 03001AB), starting motor

1шт.

O6418AB

WIRE - ground, starting switch to starting motor (76" long) (for orchard models) (see 07197AB)

1шт.

O7197AB

WIRE - ground, starting button to starting motor (57" long) (for all but orchard models) (see 06418AB)

1шт.

O7653AB

LOOM - starter button to starting motor wires (10" long)

1шт.

O9866AB

X

GASKET - starting motor

1шт.

O9995AB

X

SWITCH - starter with 010463AB boot, starting motor

1шт.

O10244AB

CLIP - for starter switch wires, on fuel tank front support, starting motor

1шт.

1/4" x 5/8" N.C. truss hd. mach. screw w/hex. nut (calmium plated), starting motor

1шт.

O10463AB

BOOT

- rubber, for 09995AB starter switch, starting motor

1шт.
