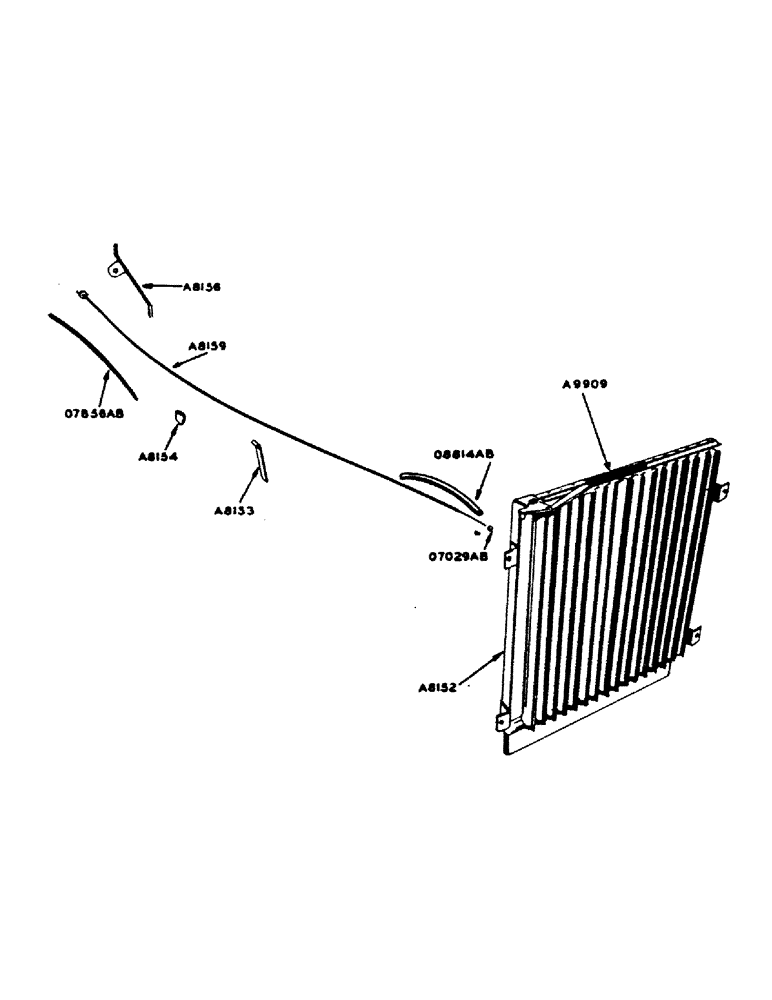

Запчасти Case IH 400-SERIES (098) - RADIATOR SHUTTER (02) - ENGINE

A8152

SHUTTER - radiator

1шт.

1/4" x 5/8" N.F. hex. bolt with lockwasher

4шт.

A8153

CLIP - shutter control cable support (on cylinder block)

1шт.

5/16" x 5/8" N.C. rhd. mach. screw

1шт.

5/16" shakeproof ext. - int. tooth lockwasher #4018-24

1шт.

A8154

CLIP - shutter control cable support (on rear hood latch clip)

1шт.

5/16" x 7/8" N.F. hex bolt

1шт.

A8156

SUPPORT - shutter control cable and head lamp support strap (for all but orchard models)

1шт.

A8159

CONTROL - flexible, radiator shutter (for all but orchard models) (See A9251)

1шт.

A9251

CONTROL - flexible, radiator shutter (for orchard models) (see A8159)

1шт.

A9252

BRACKET - shutter control (for orchard models)

1шт.

A9909

SPRING - radiator shutter

1шт.

O7029AB

CLAMP - shutter control wire

1шт.

No. 8 x 1/4" rhd. mach. screw

1шт.

O7281AB

CLIP - shutter control cable, on rear fuel tank stud (for orchard models)

1шт.

O7856AB

LOOM - radiator shutter control, rear

1шт.

O8814AB

LOOM - radiator shutter control, front

1шт.
