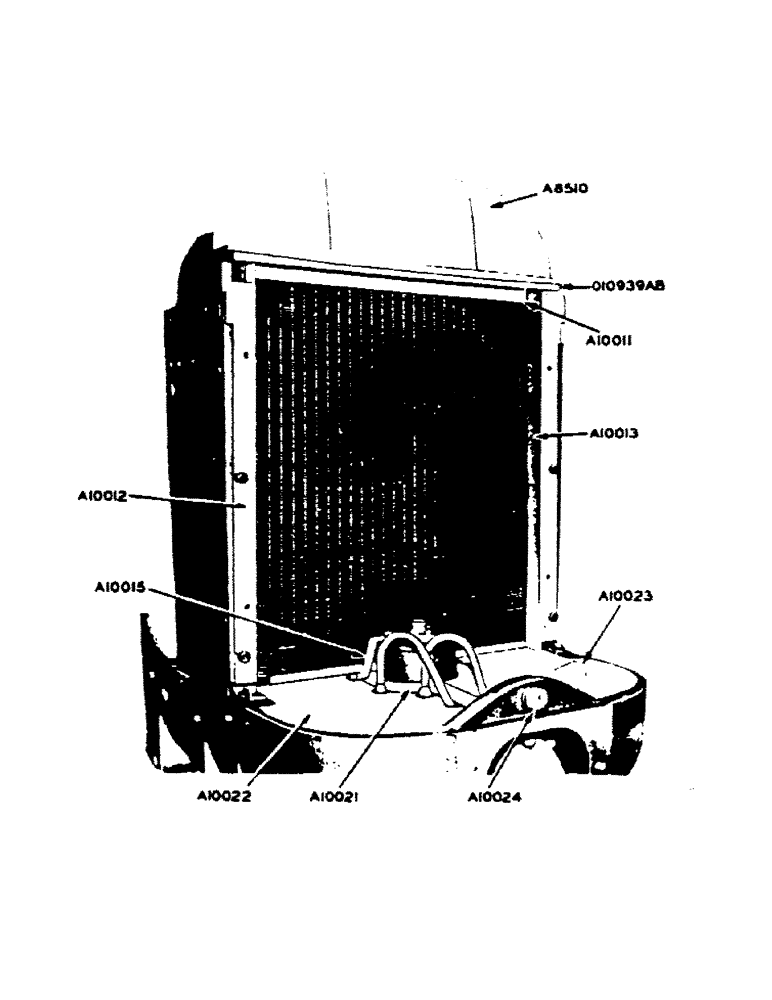

Запчасти Case IH 400-SERIES (097) - RADIATOR BAFFLES, FOR GENERAL PURPOSE TRACTORS WITH COTTON OR CORN PICKER (02) - ENGINE

A10011

BAFFLE - radiator top brace

1шт.

A10012

BAFFLE - radiator side member, R.H.

1шт.

A10013

BAFFLE - radiator side member, L.H.

1шт.

A10015

CLIP - radiator bracket baffle

3шт.

1/4" x 5/8" N.C. rhd. mach. screw

3шт.

A10016

SUPPORT - radiator bracket baffle, front

1шт.

1/4" x 5/8" N.C. rhd. mach. screw w/hex. nut and lockwasher

2шт.

A10021

PLATE - radiator bracket baffle (for tractors with power steering)

1шт.

1/4" x 5/8" N.C. rhd. mach. screw w/hex. nut and lockwasher

1шт.

1/4" x 5/8" N.C. rhd. mach. screw

1шт.

A10022

BAFFLE - radiator bracket, R.H.

1шт.

1/4" x 5/8" N.C. rhd. mach. screw w/hex. nut and lockwasher

1шт.

A10023

BAFFLE - radiator bracket, L.H.

1шт.

A10024

BOLT - radiator grille, "A" frame and baffle

1шт.

5/8" N.C. hex. nut

1шт.
