Запчасти Case IH 400-SERIES (094) - RADIATOR AND GRILLE (02) - ENGINE

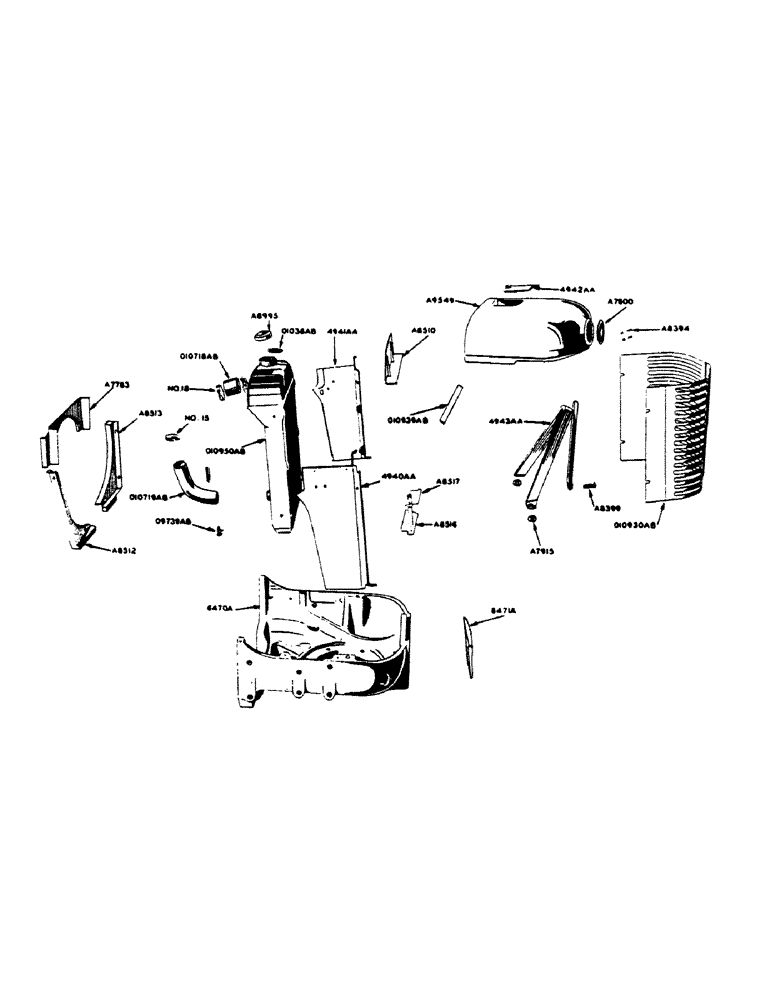

Схема запчастей Case IH 400-SERIES - (094) - RADIATOR AND GRILLE (02) - ENGINE

Артикул

Название

Примечание

Количество

A7600

EMBLEM CASE/IH

MEDALLION - grille

1шт.

A7783

SHROUD - radiator, upper

1шт.

1/4" - 20 Tinnerman speed grip nut - their #C7988 - 1420

4шт.

1/4" x 1/2" N.C. truss hd. mach. screw (Cadmium plated)

2шт.

1/4" x 5/8" N.C. truss hd. mach. screw (Cadmium plated)

2шт.

A7915

SHIM,.0359" Thk

Cultivator support "A" frame (General purpose tractors) .0359" Thk

8шт.

A8394

PINS AND CLIPS - for medallion (set of 4)

1шт.

A8399

BOLT,Hex, Tap, 5/8" - 11 x 1 3/4", Gr 5

- radiator grille and "A" frame (for general purpose tractors)

1шт.

A8510

BAFFLE - radiator upper

1шт.

1/4" x 1/2" N.C. rhd. mach. screw with hex. nut

2шт.

1/4" x 1/2" N.F. rhd. mach. screw

2шт.

1/4" shakeproof int. - ext. tooth lockwasher #4014-20-00

4шт.

A8512

SHROUD - radiator, R.H.

1шт.

1/4" x 1/2" N.C. truss hd. mach. screw (Cadmium plated)

3шт.

1/4" - 20 Tinnerman Speed Grip nut (their No. C7988-1420)

3шт.

A8513

SHROUD - radiator, L.H.

1шт.

1/4" x 1/2" N.C. truss hd. mach. screw (Cadmium plated)

2шт.

1/4" - 20 Tinnerman Speed Grip Nut (their No. C7988-1420)

2шт.

A8516

BAFFLE - radiator, with clip, lower R.H. (for general purpose tractors)

1шт.

A8517

BAFFLE - radiator, with clip, lower L.H. (for general purpose tractors)

1шт.

A8520

PLATE - radiator baffle, with clips, lower (for standard 4-wheel tractor)

1шт.

3/8" x 1" N.C. hex. bolt with lockwasher

2шт.

A8995

CAP

- radiator filler

1шт.

A9549

CARRIER

COVER - radiator grille (for general purpose tractors)

1шт.

1/4" - 20 Tinnerman speed nut - type "J" their #C8748-1420-3B

3шт.

1/4" - 20 Tinnerman speed grip nut - their #C7988-1420

2шт.

1/4" x 1/2" N.C. truss hd. mach. screw (cadmium plated)

2шт.

1/4" x 5/8" N.C. truss hd. mach. screw (cadmium plated)

3шт.

A9550

COVER - radiator grille (for standard 4-wheel tractors)

1шт.

1/4" - 20 Tinnerman speed grip nut - their #C7988-1420)

4шт.

1/4" x 5/8" N.C. truss hd. mach. screw (cadmium plated)

2шт.

1/4" x 1/2" N.C. truss hd. mach. screw (cadmium plated)

2шт.

6470A

BRACKET - radiator (for general purpose tractors)

1шт.

3/4" x 2" N.C. hex. bolt with lockwasher

4шт.

6471A

COVER - radiator bracket, front (for general purpose tractors)

1шт.

5/8" x 1-1/2" N.C. hex bolt with lockwasher

2шт.

O1036AB

X

GASKET - radiator filler cap

1шт.

O9739AB

X

VALVE - water drain, for radiator (1/4" P.T.)

1шт.

O10718AB

X

HOSE - radiator inlet

1шт.

No. 18 hose clamp (2-7/8" O.D. hose)

2шт.

O10719AB

HOSE

- radiator to water pump

1шт.

No. 15 hose clamp (2-3/8" O.D. hose)

2шт.

O10930AB

GRILLE - radiator (for general purpose tractors)

1шт.

5/8" x 1-3/4" N.C. hex. bolt with lockwasher (zinc plated)

2шт.

1/4" x 1/2" N.C. truss hd. mach. screw (cadmium plated)

5шт.

1/4" shakeproof int. tooth lockwasher #1214-00 (cadmium plated)

1шт.

O10939AB

BRACE - radiator side member, top

1шт.

O10950AB

RADIATOR

1шт.

O10964AB

GRILLE - radiator (for standard 4 - wheel tractors)

1шт.

1/4" x 1/2" N.C. truss hd. mach. screw (cadmium plated)

4шт.

O6480HT

X

SPACER - radiator grille bolt (for high clearance models)

1шт.

4940AA

MEMBER - radiator side, R.H.

1шт.

3/8" x 1" N.C. hex. bolt with lockwasher

1шт.

5/16" x 5/8" N.F. hex. bolt with lockwasher

1шт.

5/16" x 1-1/2" N.F. hex. bolt with lockwasher

2шт.

3/8" x 7/8" N.C. hex. bolt with lockwasher

1шт.

1/4" - 20 Tinnerman speed grip nut - #C7988-1420

2шт.

4941AA

MEMBER - radiator side, L.H.

1шт.

3/8" x 1" N.C. hex. bolt with lockwasher

1шт.

5/16" x 5/8" N.F. hex. bolt with lockwasher

1шт.

5/16" x 1-1/2" N.F. hex. bolt with lockwasher

2шт.

3/8" x 7/8" N.C. hex. bolt with lockwasher

1шт.

1/4" - 20 Tinnerman speed grip nut - #C7988-1420

2шт.

4942AA

X

DOOR - radiator filler cap

1шт.

4943AA

"A" FRAME - cultivator support (for general purpose tractors)

1шт.

5/8" x 1-3/4" N.C. hex. bolt with lockwasher

2шт.

Выбрано товаров: 66
