(075) - POWRCEL DIESEL ENGINE, PARTS FOR 010060AB STARTING FLUID DISPENSER

Запчасти Case IH 400-SERIES (075) - POWRCEL DIESEL ENGINE, PARTS FOR 010060AB STARTING FLUID DISPENSER (02) - ENGINE

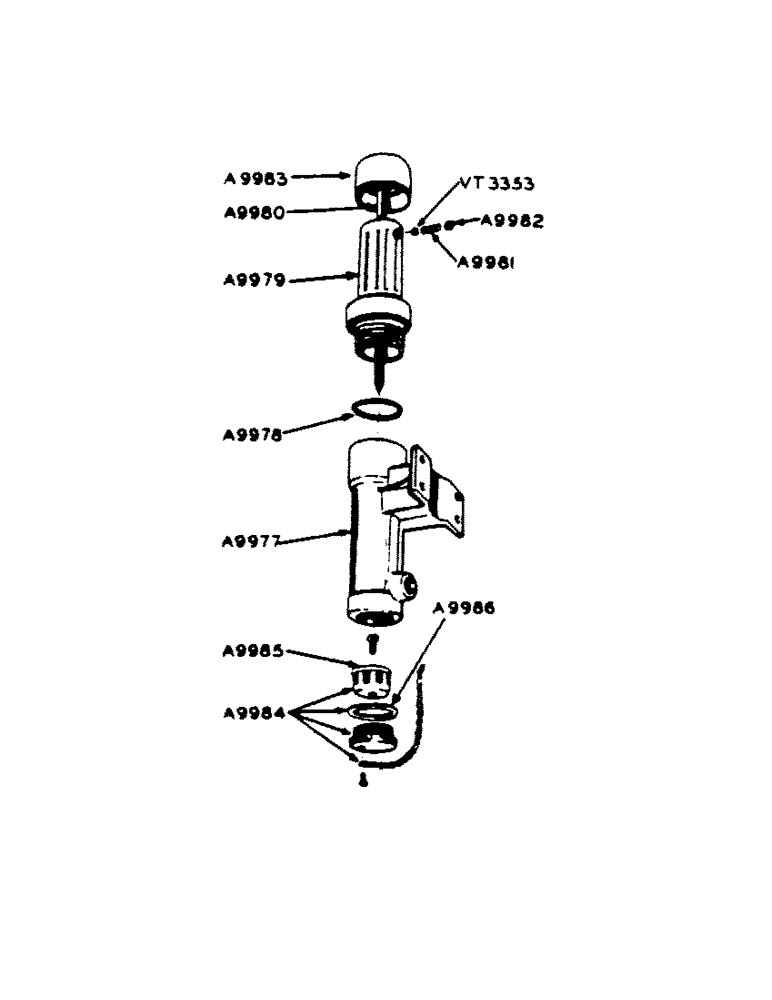

Схема запчастей Case IH 400-SERIES - (075) - POWRCEL DIESEL ENGINE, PARTS FOR 010060AB STARTING FLUID DISPENSER (02) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A9977

BODY - lower

1шт.

A9978

GASKET - body

1шт.

A9979

CHAMBER - upper capsule, short

1шт.

A9980

PLUNGER ASSEMBLY - short

1шт.

A9981

SPRING - plunger lock

1шт.

A9982

PLUG - plunger lock

1шт.

A9983

KNOB - plunger

1шт.

A9984

PLUG - and strainer assembly, with chain

1шт.

A9985

STRAINER

1шт.

A9986

GASKET

- for A9984 plug

1шт.

VT3353

X

BALL - plunger lock (3/16" dia.)

1шт.
