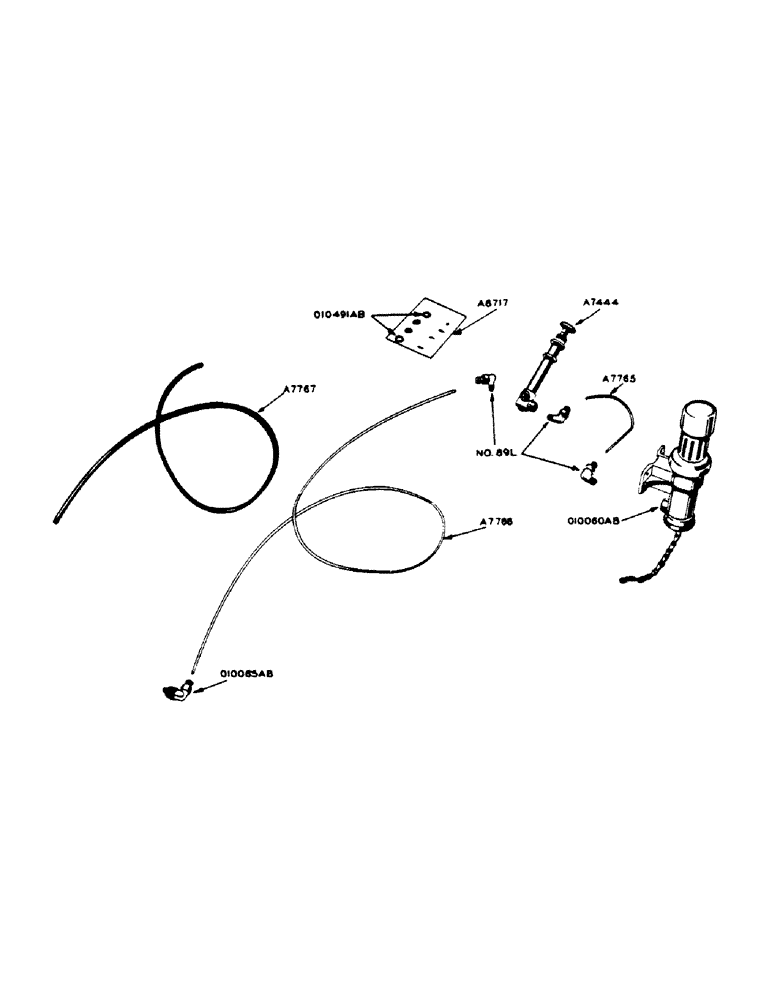

Запчасти Case IH 400-SERIES (074) - POWRCEL DIESEL ENGINE, STARTING FLUID PRIMER PUMP (02) - ENGINE

A7444

PUMP - starting fluid primer

1шт.

A7765

TUBE - starting fluid dispenser to primer pump

1шт.

Imperial hi-duty elbow #89L (1/8" tube size x 1 8" pipe thrd.)

2шт.

A7766

TUBE - starting fluid primer pump to manifold (for all but orchard models) (see A8003)

1шт.

A7767

LOOM - for A7766 tube

1шт.

A7922

CLIP

- primer pump to manifold tube, on steering gear housing (for orchard models)

1шт.

A8003

TUBE

- starting fluid primer pump to manifold (for orchard models) (see A7766)

1шт.

Imperial hi-duty elbow #89L (1/8" tube size x 1/8" pipe thrd.) (connects tube to primer pump)

1шт.

A8717

KIT - service, for A7444 pump (consists of 2 springs, 1 ball, 1 guide pin, 2 washers, 2 - 010491AB "O" rings and 1 diaphragm)

1шт.

A9245

LOOM - for A8003 tube

1шт.

O10060AB

DISPENSER - starting fluid

1шт.

No. 10 - 24 x 5/8" rhd. mach. screw with lockwasher (zinc plated)

3шт.

No. 10 -24 x 3/4" rhd. mach. screw with lockwasher (zinc plated)

1шт.

O10065AB

NOZZLE - starting fluid priming elbow (connects, Serial Range: tube-manifold)

1шт.

O10491AB

X

"O" RING - for A7444 pump (in service kit)

2шт.
