Запчасти Case IH 400-SERIES (073) - POWRCEL DIESEL ENGINE, ENGINE HOUR METER (02) - ENGINE

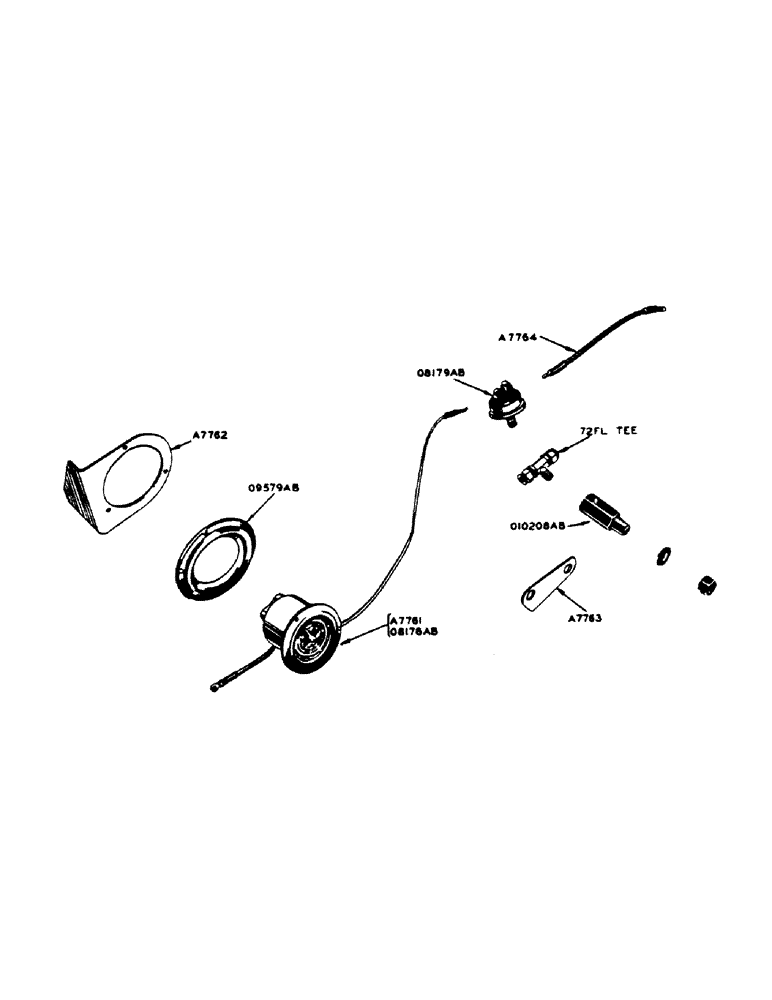

Схема запчастей Case IH 400-SERIES - (073) - POWRCEL DIESEL ENGINE, ENGINE HOUR METER (02) - ENGINE

Артикул

Название

Примечание

Количество

A7761

METER

- engine hour (12 volts - for diesel engine)

1шт.

No. 6 - 32 x 3/8" rhd. mach. screw with lockwasher

3шт.

A7762

BRACKET - hour meter mounting

1шт.

1/4" x 5/8" N.F. hex. bolt with hex. nut and lockwasher

2шт.

A7763

SUPPORT - hour meter switch

1шт.

A7764

WIRE - starting motor to hour meter switch (8-1/4" long)

1шт.

O8178AB

METER - engine hour (6 volts - for spart ignition engines)

1шт.

No. 6 - 32 x 3/8" rhd. mach. screw with lockwasher

3шт.

O8179AB

X

SWITCH - hour meter pressure

1шт.

O9579AB

X

FLANGE - rubber, hour meter resilient mounting

1шт.

No. 6 - 32 x 3/8" rhd. mach. screw with nut and lockwasher

1шт.

No. 6 - 32 x 5/8" rhd. mach. screw with lockwasher

1шт.

O10208AB

CONNECTOR - pressure switch

1шт.

1/2" N.F. hex. nut and lockwasher

1шт.

Imperial #72FL tee (1/4" tube x 1/8" pipe thrd.)

1шт.

Выбрано товаров: 15
