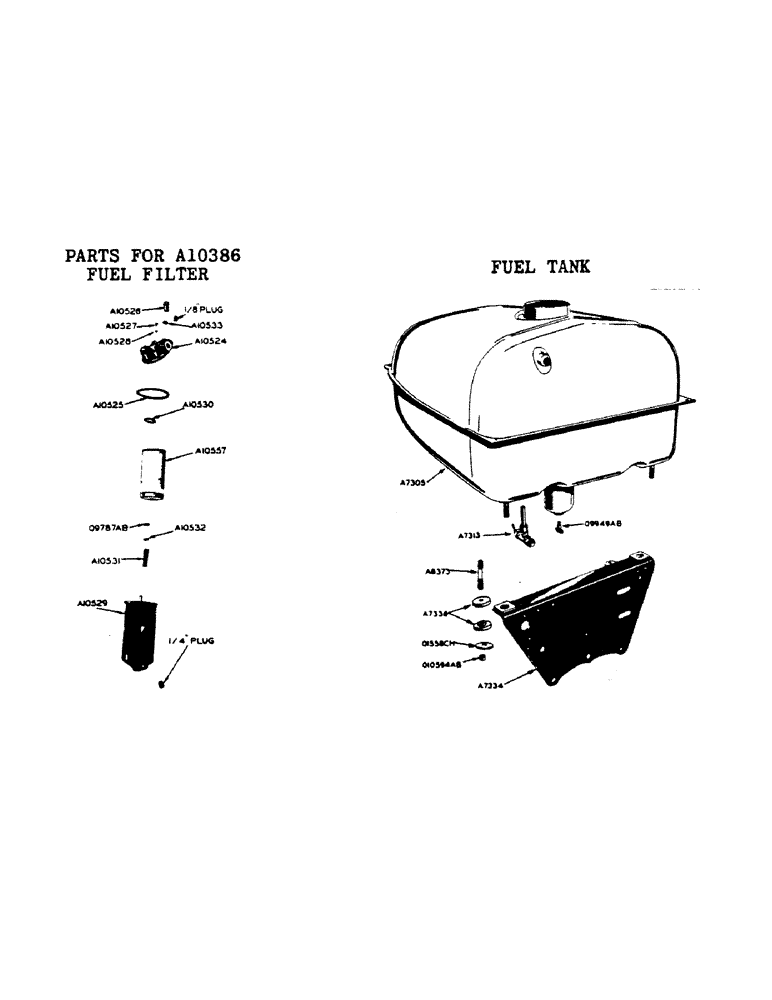

Запчасти Case IH 400-SERIES (071) - POWRCEL DIESEL ENGINE, PARTS FOR A10386 FUEL FILTER AND A7305 FUEL TANK (02) - ENGINE

A10524

HEAD

1шт.

1/8" sq. hd. pipe plug

1шт.

A10525

GASKET

- for head

1шт.

A10526

NUT

1шт.

A10527

SCREW - bleed

1шт.

A10528

GASKET

- bleed screw

1шт.

A10529

CASE

1шт.

1/4" brass plug

1шт.

A10530

GASKET

- for element

1шт.

A10531

SPRING

1шт.

A10532

RETAINER - for "O" ring

1шт.

A10533

GASKET - for nut

1шт.

A10557

FILTER

ELEMENT

1шт.

O9787AB

X

"O" RING

1шт.

A7305

TANK - fuel

1шт.

A7313

VALVE

- needle, fuel tank

1шт.

A7334

SUPPORT - fuel tank, front

1шт.

1/2" x 1-1/2" N.C. hex. bolt with lockwasher, fuel tank

2шт.

1/2" x 1-3/4" N.C. hex. bolt with lockwasher, fuel tank

1шт.

A7336

CUSHION

BUSHING - fuel tank support

6шт.

A8373

STUD

- fuel tank mounting

3шт.

A9146

SUPPORT - fuel tank, rear (for orchard models)

1шт.

3/8" x 1-1/4" N.F. hex. bolt with nut and lockwasher, fuel tank

1шт.

A9147

GEAR

BRACE - fuel tank rear support (for orchard models)

1шт.

O9949AB

X

VALVE - water drain, for fuel tank

1шт.

O10594AB

X

STOP NUT - fuel tank mounting stud (3/8" - 24 N.F. thrd.)

3шт.

O1558CH

X

WASHER - fuel tank mounting stud

3шт.

A26304

CAP

gas, fuel tank

1шт.
