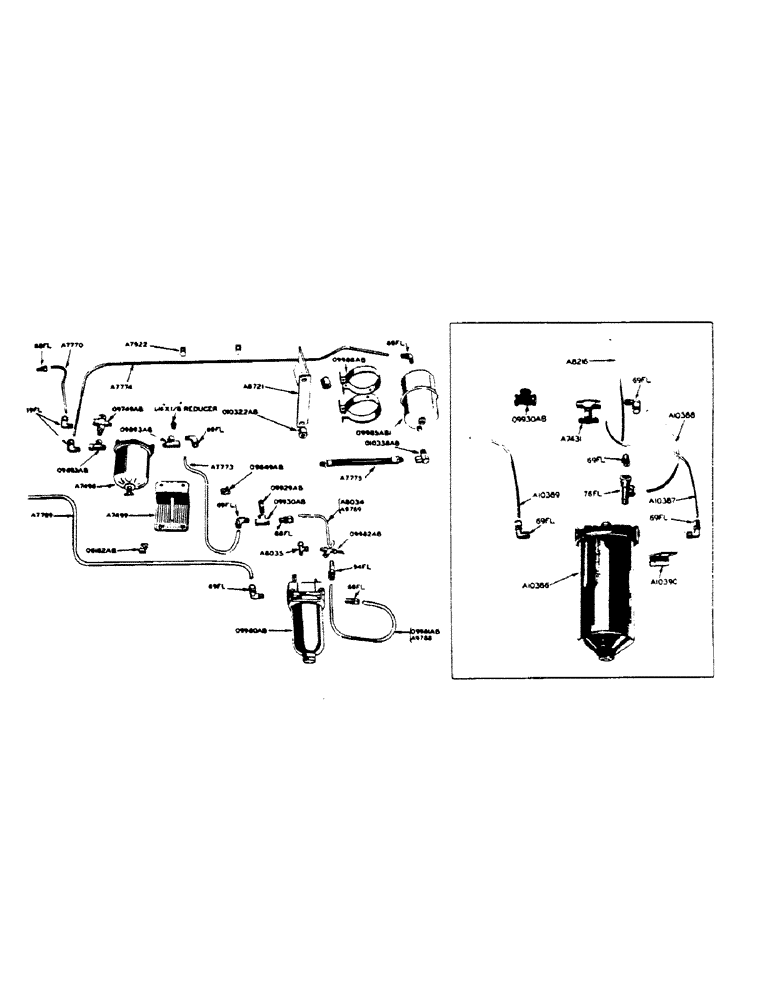

Запчасти Case IH 400-SERIES (068) - POWRCEL DIESEL ENGINE, FUEL FILTERS AND TUBES, FIRST STAGE, SECOND STAGE AND FINAL STAGE (02) - ENGINE

A7431

VALVE

- needle, 1/4" male x 1/8" female, A10386 filter (see 09982AB)

1шт.

A7769

TUBE - fuel tank to 09980AB first stage filter (see A10389)

1шт.

Imperial flex elbow No. 69FL (3/8" tube size x 1/4" pipe thrd.) (Connects tube to 09980AB first stage filter)

1шт.

A8034

TUBE - 09980AB first stage filter bleeder by-pass (prior to tractor no. 8086108) (see A9789 and A10388)

1шт.

Imperial flex connector No. 68FL (1/4" tube size x 1/4" pipe thrd.) (connects tube to 09930AB tee)

1шт.

A8035

X

TEE - for 09980AB first stage filter (1/8")

1шт.

A9788

TUBE - 09980AB first stage filter to fuel pump (tractor no. 8086108 and after) (see 09981AB and A10387)

1шт.

Imperial flex elbow no. 69FL (3/8" tube size x 1/4" pipe thrd.) (connects tube to first stage filter)

1шт.

Imperial flex 45 degree elbow no. 94FL (3/8" tube size x 1/4" pipe thrd.) (connects tube to fuel pump)

1шт.

A9789

TUBE - 09980AB first stage filter bleeder by-pass (tractor no. 8086108 and after) (see A8034 and A10388)

1шт.

Imperial flex elbow no. 69FL (1/4" pipe thrd.) (connects tube to 09930AB tee)

1шт.

A10386

SPARE PART

FILTER - first stage fuel

1шт.

1/4" x 3/4" N.C. hex. bolt w/lockwasher

2шт.

Imperial flex tee no 76FL (1/4" tube x 1/8" pipe thrd.) (connects filter to vacuum gauge and bleeder by-pass tubes)

1шт.

A10387

TUBE

- A10386 first stage filter to fuel pump (see 09981AB and A9788

1шт.

Imperial flex elbow no. 69FL (3/8" tube size x 1/4" pipe thrd.) (connects tube to first stage filter)

1шт.

Imperial flex 45 degree elbow no. 94FL (3/8" tube x 1/4" pipe thrd.) (connects tube to fuel pump)

1шт.

A10388

TUBE

- for A10386 filter bleeder by- pass (see A8034 and A9789)

1шт.

Imperial flex elbow no. 69FL (1/4" tube size x 1/8" pipe thrd.) (connects tube with A7431 needle valve)

1шт.

Imperial flex tee no. 76FL (1/4" tube size x 1/8" pipe thrd.) (connects A10386 filter with A10388 tube and vacuum tube)

1шт.

A10389

TUBE - fuel tank to A10386 first stage filter (see A7769)

1шт.

Imperial flex. elbow no. 69FL (3/8" tube size x 1/4" pipe thrd.) (connects tube to A10386 first stage filter)

1шт.

A10390

BRACKET

- for A10386 first stage filter

1шт.

3/8" x 7/8" N.C. hex. bolt w/lockwasher

2шт.

O6182AB

CLIP - for tube from fuel tank to first stage filter

1шт.

O9929AB

X

NIPPLE - brass pipe, connects 09930AB tee to fuel pump (1/4" x 1-1/2" long)

1шт.

O9930AB

X

TEE - 1/4" brass female, for fuel pump

1шт.

A10915

KIT

FILTER - first stage fuel (use 1 - A10386 filter with 1 - A7431 needle valve, 1 - A10387 tube, 1 - A10388 tube, 1 - A10390 bracket, 2-1/4" x 3/4" N.C. hex. bolt w/lockwasher, 1 - 69FL elbow 1/4" tube x 1/8" P.T. and 1 - 76FL tee) (Replaces O9980AB)

1шт.

O9981AB

TUBE - 09980AB first stage filter to fuel pump (prior to tractor no. 8086108) (see A9788 and A10387)

1шт.

Imperial flex. connector no. 68FL (3/8" tube size x 1/4" pipe thrd.) (connects tube to first stage filter)

1шт.

Imperial flex. 45 degree elbow no. 94FL (3/8" tube size x 1/4" pipe thrd.) (connects tube to fuel pump)

1шт.

O9982AB

VALVE - needle, on 09980AB filter (1/4" tube x 1/8" P.T.) (see A7431)

1шт.

A7496

HEAD

FILTER - second stage fuel, and tubes

1шт.

3/8" x 1" N.F. hex. nut and lockwasher, second stage fuel filter and tubes

2шт.

A7499

BRACKET - second stage filter, fuel, and tubes

1шт.

5/16" x 3/4" N.C. hex. bolt w/lockwasher, second stage fuel filter and tubes

2шт.

A7770

TUBE - relief valve to fuel tank (5/16" tubing), second stage, filter

1шт.

Imperial flex. elbow no. 69FL (5/16" tube size x 1/4" pipe thrd.), second stage fuel filter

1шт.

Imperial flex connect no. 68FL (5/16" tube size x 1/4" pipe thrd.) (connects tube to tank), second stage fuel filter

1шт.

A7773

TUBE - fuel pump to second stage filter (5/16" tubing)

1шт.

Imperial flex. elbow no. 69FL (5/16" tube size x 1/4" pipe thrd.) (connects tubes with 09930AB tee and 09893AB tee), second stage fuel filter

2шт.

A7774

TUBE - second stage filter to final stage filter (5/16" tubing), fuel

1шт.

Imperial flex. elbow No. 69FL (5/16" tube size x 1/4" pipe thrd.) (connects tube to 09893AB tee and 09985AB1 filter), second stage, fuel

2шт.

A7922

CLIP

- for second stage filter to final stage filter tube (A7774), fuel

2шт.

O9649AB

CLIP - for A7773 tube, on fuel pump, second stage, filter

1шт.

O9749AB

VALVE - relief (American Bosch No. VA7928A), second stage fuel filter and tubes

1шт.

O9893AB

TEE - second stage filter (1/4"), fuel, and tubes

2шт.

1/4" to 1/8" brass reducing bushing, second stage fuel filter and tubes

1шт.

A7774

TUBE - second stage filter to final stage filter (5/16" tubing), fuel

1шт.

Imperial flex. elbow no. 69FL (5/16" tube size x 1/4" pipe thrd.) (connects tube to 09893AB tee and 09985AB1 filter), final stage, fuel

2шт.

A7775

FUEL HOSE,0.38" ID x 9.25"

Final Stage Filter To Fuel Pump, And Tubes 0.38" ID x 9.25"

1шт.

A8721

BRACKET - final stage filter, fuel, and tubes

1шт.

7/16' x 2" N.C. hex. bolt w/lockwasher, final stage fuel filter and tubes

2шт.

O9985AB1

FILTER - final stage fuel, and tubes

1шт.

O9986AB

CLAMP - final stage filter, fuel, and tubes

2шт.

5/16" x 1/2" N.C. hex. bolt w/plain washer, final stage fuel filter and tubes

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut, final stage fuel filter and tubes

3шт.

1/4" x 1-1/2" N.C. rhd. mach. screw w/hex. nut, final stage fuel filter and tubes

2шт.

O10322AB

SPACER - final stage filter bracket, fuel, and tubes

2шт.

O10338AB

UNION

- 90 degree adapter, connects A7775 hose to final stage filter, fuel, and tubes

1шт.

Imperial Brass No. 60FL sleeve for 1/4" tubing, for A7772, A8034 and 09984AB tubes, and nuts, fuel

1шт.

Imperial Brass No. 60FL sleeve for 5/16" tubing, for A7770, A7773 and A7774 tubes, and nuts, fuel

1шт.

Imperial Brass No. 60FL sleeve for 3/8" tubing, for A7769 and 09981AB tubes, and nuts, fuel

1шт.

Imperial Brass No. 61FL nut for 1/4" tubing, for A7772, A8034 and 09984AB tubes, and sleeves, fuel

1шт.

Imperial Brass No. 61FL nut for 5/16" tubing, for A7770, A7773 and A7774 tubes, and sleeves, fuel

1шт.

Imperial Brass No. 61FL nut for 3/8" tubing, for A7769 and 09981AB tubes, and sleeves, fuel

1шт.
