Запчасти Case IH 400-SERIES (064) - POWRCEL DIESEL ENGINE, SINGLE PLUNGER FUEL PUMP AND DRIVE ASSEMBLY (02) - ENGINE

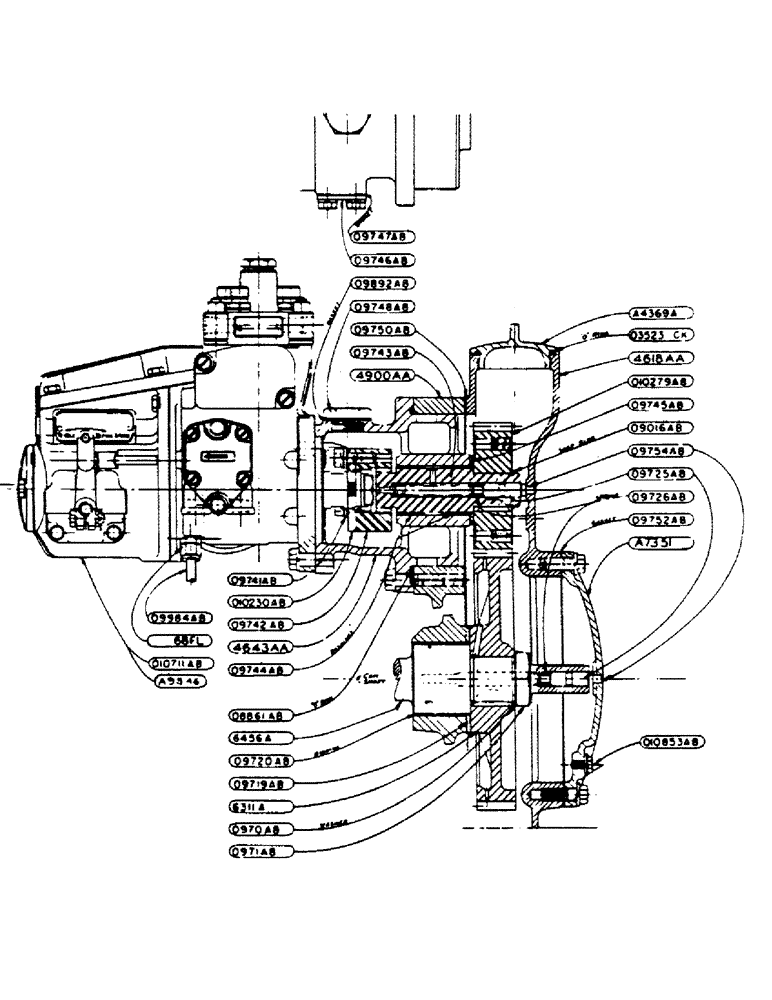

Схема запчастей Case IH 400-SERIES - (064) - POWRCEL DIESEL ENGINE, SINGLE PLUNGER FUEL PUMP AND DRIVE ASSEMBLY (02) - ENGINE

Артикул

Название

Примечание

Количество

A9546

PUMP - fuel (american bosch no. psb-4a-75d-35494bd) (for engines 15000 R.P.M.

1шт.

6314A

HOUSING (use 4643aa)

1шт.

O8861AB

X

"0" RING - fuel pump drive shaft housing

1шт.

O9016AB

X

SNAP RING - fuel pump drive shaft

1шт.

O9725AB

X

PLUNGER - fuel pump drive shaft thrust

1шт.

O9726AB

X

SPRING - fuel pump drive shaft thrust plunger

1шт.

O9741AB

WASHER - serrated, fuel pump coupling

3шт.

5/16" x 1" N.F. hex. bolt with lockwasher

3шт.

O9742AB

COUPLING - fuel pump drive

1шт.

5/16" x 1" N.F. hex. bolt with lockwasher

3шт.

O9743AB

SHAFT AND PINION - fuel pump drive

1шт.

O9744AB

BUSHING - fuel pump drive shaft

2шт.

O9745AB

X

WASHER - thrust, fuel pump drive shaft

1шт.

O9746AB

PLATE - plate pump drive shaft housing

1шт.

5/16" x 3/4" N.C. hex. bolt with lockwasher

2шт.

O9747AB

GASKET

- fuel pump drive shaft housing plate

1шт.

O9748AB

PLUG - fuel pump drive shaft housing

1шт.

O9892AB

STUD

GASKET, fuel pump drive shaft housing plug

1шт.

O9984AB

TUBE - fuel pump lube oil, cylinder block to fuel pump (1/4" tubing)

1шт.

Imperial flex connectin, no. 68fl (1/4" tube size x 1/8" pipe thrd.) (connects tube to fuel pump)

1шт.

Imperial flex elbow, no. 69fl (1/4" tube size x 1/8" pipe thrd.) (connects tube with cylinder block)

1шт.

O10230AB

HUB - drive, fuel pump

1шт.

O10279AB

X

GEAR - fuel pump drive

1шт.

no. 141 Woodruff key

1шт.

O10339AB

SEAL - 6" lead wire, for fuel pump

2шт.

O10711AB

PUMP - fuel (Americal Bosch no. psb-4a-75c-3594) (for engines with 1450 R.M.P. rated speed) (use A9546)

1шт.

3/8" x 1-1/8" N.C. hex. bolt with lockwasher (fastens pump to housing)

2шт.

3/8" x 1-1/2" N.F. hex. bolt with lockwasher (fastens pump to housing)

1шт.

4643AA

HOUSING - fuel pump drive shaft, with 2 - 09744AB bushings

1шт.

3/8" x 1-1/4" N.C. hex. bolt with lockwasher (fastens housing to cylinder block)

3шт.

Выбрано товаров: 30
