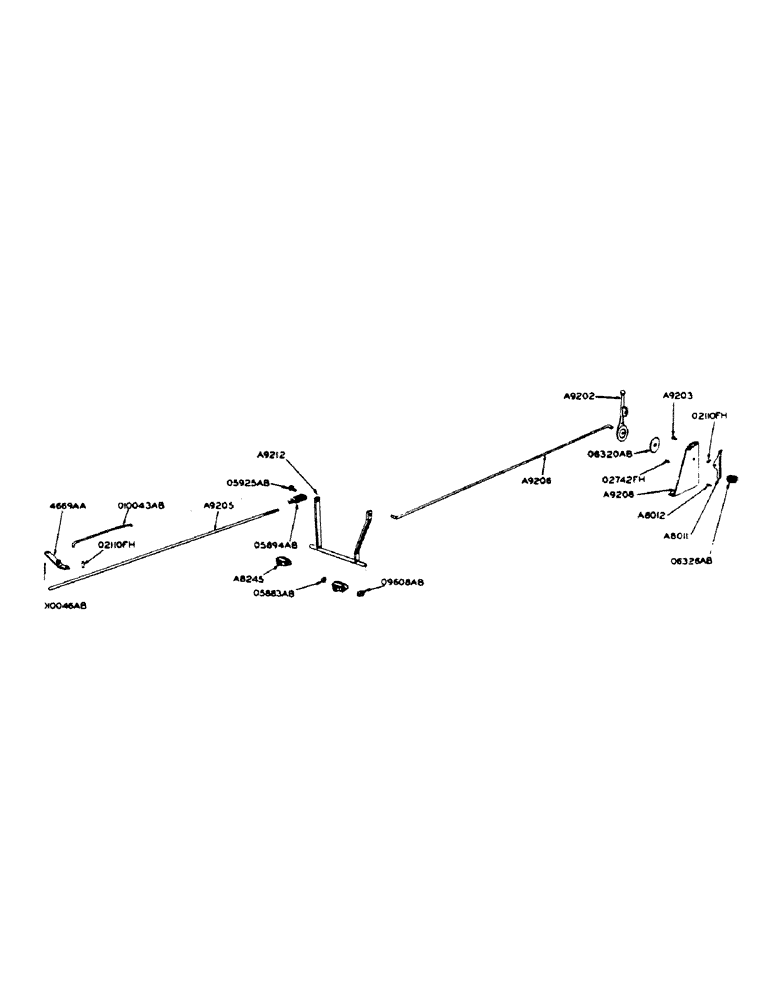

Запчасти Case IH 400-SERIES (062) - POWRCEL DIESEL ENGINE, THROTTLE CONTROL, FOR ORCHARD MODELS (02) - ENGINE

A8011

LOCK - throttle shut-off

1шт.

A8012

SPRING

- throttle shut-off lock

1шт.

A8245

SUPPORT - throttle control link bearing

2шт.

1/2" x 2" N.C. hex. bolt w/lockwasher

2шт.

A9202

LEVER - hand, throttle control

1шт.

5/16" x 2-1/2" N.F. hex. bolt w/dbl. hex. nut

1шт.

A9203

STOP - throttle control lever

1шт.

5/16" N.F. hex. jam nut

1шт.

5/16" shakeproof ext. - int. tooth lockwasher #4018-24 (cadmium plated)

1шт.

5/16" plain washer

1шт.

A9205

ROD - throttle control, front

1шт.

3/8" N.F. hex. jam nut

1шт.

A9206

ROD - throttle control, rear

1шт.

3/32" x 5/8" cotter pin

2шт.

A9208

BRACKET - throttle hand lever, with 02742FH roll pin

1шт.

1/2" x 1-3/4" N.C. hex. bolt w/lockwasher

2шт.

A9212

LINK - throttle control

1шт.

1/2" plain washer

1шт.

O5883AB

WASHER - spring, throttle bell crank stud

1шт.

O5894AB

YOKE

END - throttle front rod

1шт.

O5925AB

X

PIN - throttle front rod yoke end

1шт.

3/32" x 3/4" cotter pin

1шт.

O6320AB

X

DISC - friction, throttle lever

1шт.

O6326AB

X

SPRING - throttle control lever shaft

1шт.

O9608AB

X

"E" RING - throttle control link shaft

1шт.

O10043AB

ROD - fuel pump throttle

1шт.

3/32" x 5/8" cotter pin

2шт.

O10046AB

SCREW - front throttle control lever pivot

1шт.

O2110FH

X

ROLL PIN - 1 on the throttle control front rod and 1 on throttle shut-off lock (3/16" x 3/4")

2шт.

O2742FH

X

ROLL PIN - throttle hand lever stop (1/4" x 3/4")

1шт.

4669AA

LEVER - throttle control, front

1шт.
