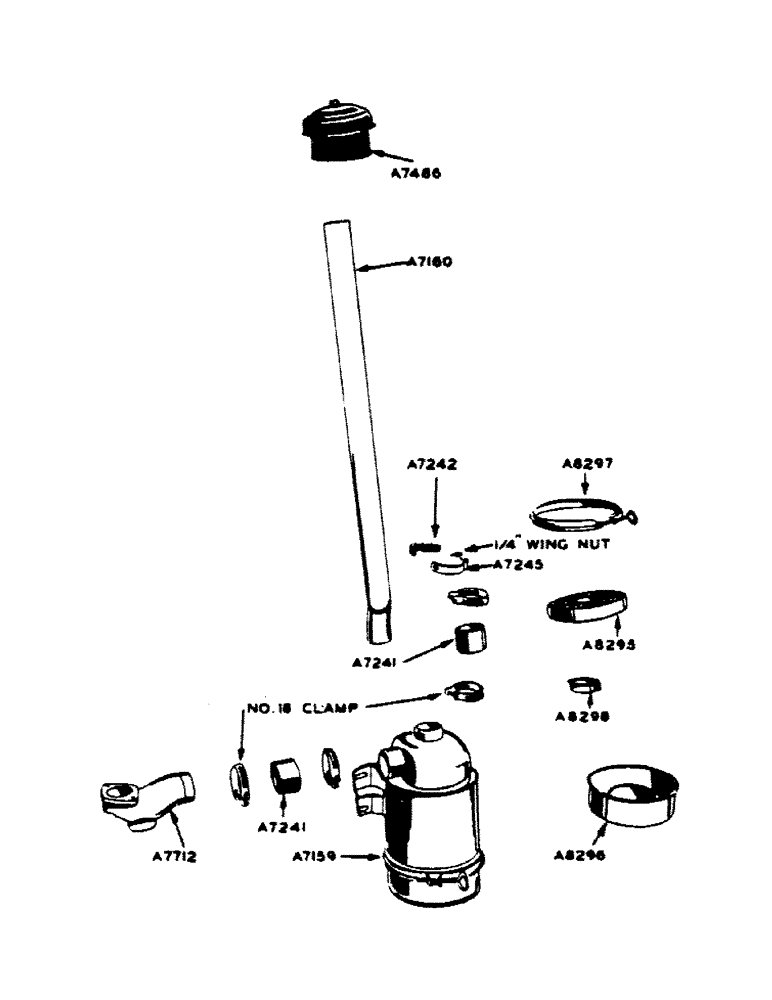

Запчасти Case IH 400-SERIES (057) - POWRCEL DIESEL ENGINE, AIR CLEANER (02) - ENGINE

A7159

SPARE PART

AIR CLEANER - (7")

1шт.

3/8" x 3/4" N.C. hex. bolt with lockwasher

4шт.

3/8" shakeproof external - internal tooth lockwasher #4020-26

4шт.

A7160

SPINDLE

PIPE - air intake (2-1/4" O.D.)

1шт.

A7241

HOSE - air cleaner

2шт.

No. 16 hose clamp (2-5/8" O.D hose)

4шт.

A7242

SUPPORT - air intake pipe

1шт.

5/16" x 3/4" N.C. carr. bolt with hex nut

1шт.

5/16" shakeproof ext. int. tooth lockwasher #4018-24

1шт.

A7245

STRAP - air intake pipe, with "T" bolt

1шт.

1/4" N.C. wing nut - cadium plated

1шт.

A7486

X

PRE-SCREENER - air intake (2-1/4")

1шт.

A7295

SCREEN, parts for A7159 air cleaner

1шт.

A8296

CUP - oil, parts for A7159 air cleaner

1шт.

A8297

CLAMP

- oil cup retaining, parts for A7159 air cleaner

1шт.

A8298

CLAMP - screen retaining, parts for A7159 air cleaner

1шт.
