Запчасти Case IH 400-SERIES (056) - POWRCEL DIESEL ENGINE, INTAKE AND EXHAUST MANIFOLD (02) - ENGINE

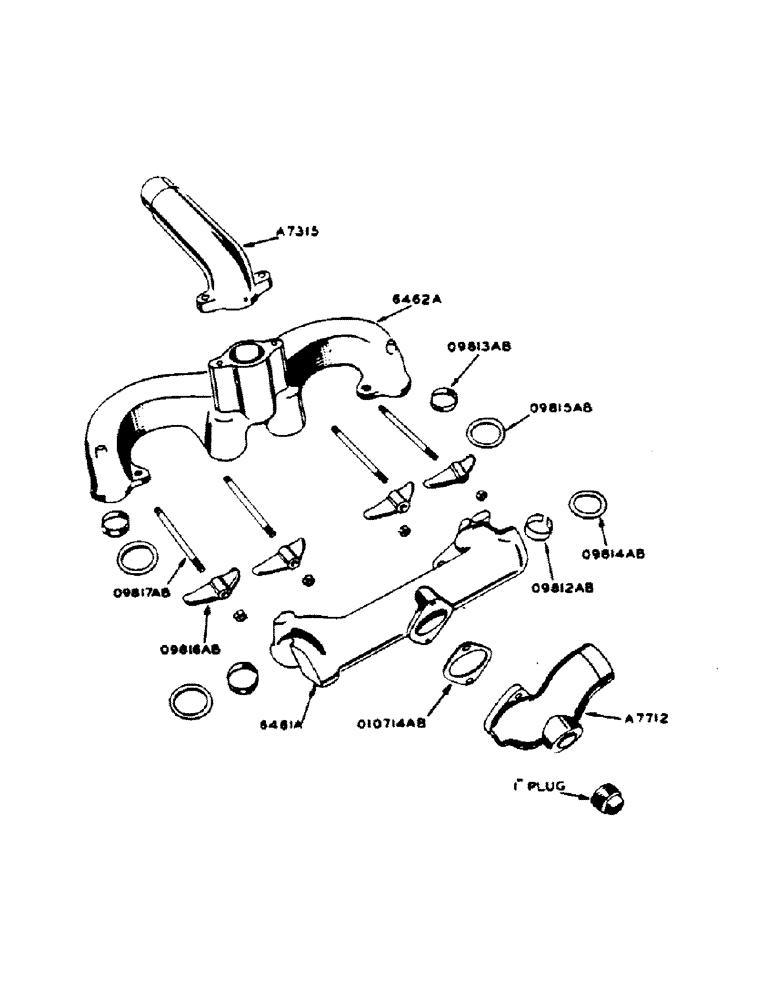

Схема запчастей Case IH 400-SERIES - (056) - POWRCEL DIESEL ENGINE, INTAKE AND EXHAUST MANIFOLD (02) - ENGINE

Артикул

Название

Примечание

Количество

A7315

ELBOW - exhaust

1шт.

1/2" x 1-1/4" N.C. hex bolt

2шт.

A7712

ELBOW - intake manifold

1шт.

3/8" x 1-1/8" N.C. hex bolt with lockwasher 1" sq. hd. pipe plug

1шт.

6461A

MANIFOLD - intake

1шт.

1/8" sq hd. pipe plug

2шт.

6462A

MANIFOLD - exhaust

1шт.

O9812AB

FERRULE

- intake manifold

2шт.

O9813AB

X

FERRULE - exhaust manifold

4шт.

O9814AB

X

GASKET - intake manifold

2шт.

O9815AB

X

GASKET - exhaust manifold

4шт.

O9816AB

CLAMP - intake and exhaust manifold

4шт.

O9817AB

X

STUD - intake and exhaust manifold

4шт.

7/16" hex. nut, light, N.F. thrd., with plain washer

4шт.

O10714AB

X

GASKET - intake manifold elbow

1шт.

Выбрано товаров: 15
