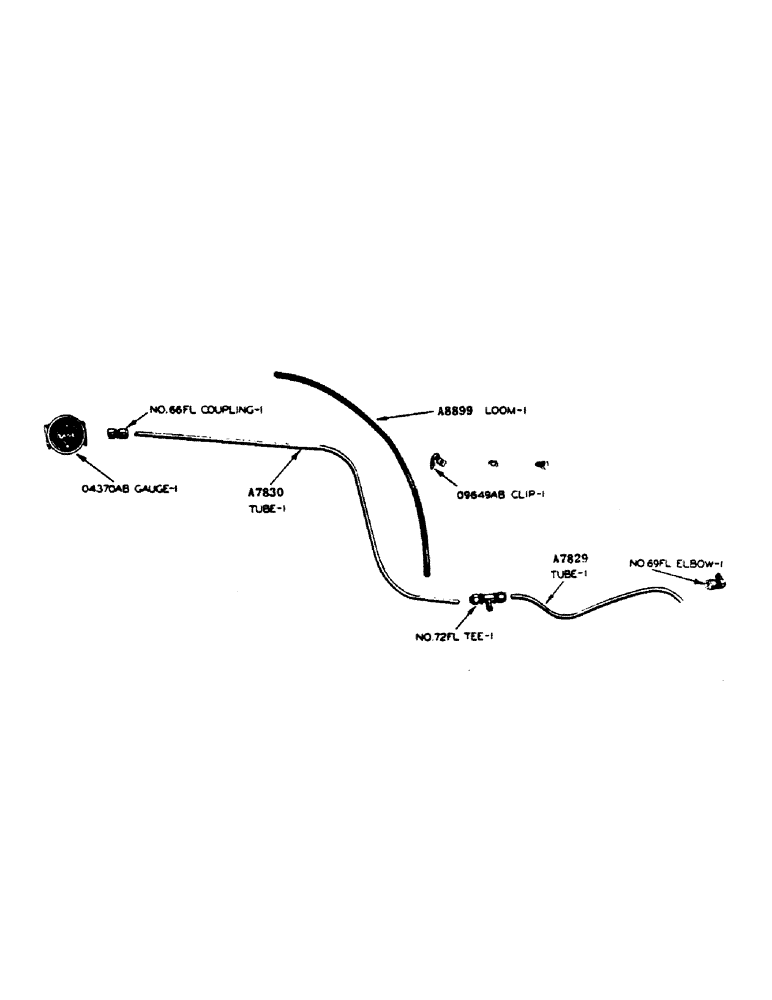

Запчасти Case IH 400-SERIES (054) - POWRCEL DIESEL ENGINE, LUBRICATING OIL PRESSURE GAUGE (02) - ENGINE

A7829

TUBE - oil gauge, front (14-1/2" long)

1шт.

Imperial flex union No. 62FL (1/4" tube size)(Connects A7829 and A7830 tubes)(for tractors without hour meter)

1шт.

Imperial flex elbow No. 69FL (1/4" tube size x 1/8" pipe thrd.) (Connects tube to cylinder block)

1шт.

Imperial flex tee No. 72FL (1/4" tube size x 1/8" pipe thrd.) (Connects tube with A7830 tube and 010208AB pressure switch connector) (for tractors with hour meter)

1шт.

A7830

TUBE - oil gauge, rear (44" long) (for all but orchard models) (see A9046)

1шт.

Imperial flex union no. 62FL (1/4" tube size) (Connects A7829 and A7830 tubes) (for tractors without hour meter)

1шт.

Imperial flex female coupling No. 66FL (1/4" tube size x 1/8" pipe thrd.)

1шт.

(Connects tube to oil gauge)

1шт.

Imperial flex tee No. 72FL (1/4" tube size x 1/8" pipe thrd.) (Connects tube with A7829 and 010208AB pressure switch connector) (for tractors with hour meter)

1шт.

A8899

LOOM - for A7830 rear tube

1шт.

A9046

TUBE - oil gauge, rear (73" long) (for orchard models)(see A7830)

1шт.

Imperial flex female elbow No. 70FL (1/4" tube x 1/8" P.T.) (Connects, Serial Range: tube-gauge)

1шт.

O4370AB

X

GAUGE - oil pressure

1шт.

O9649AB

CLIP - oil gauge tube (on fuel tank front support)

1шт.

1/4" x 1/2" N.C. hex. bolt w/lockwasher

1шт.
