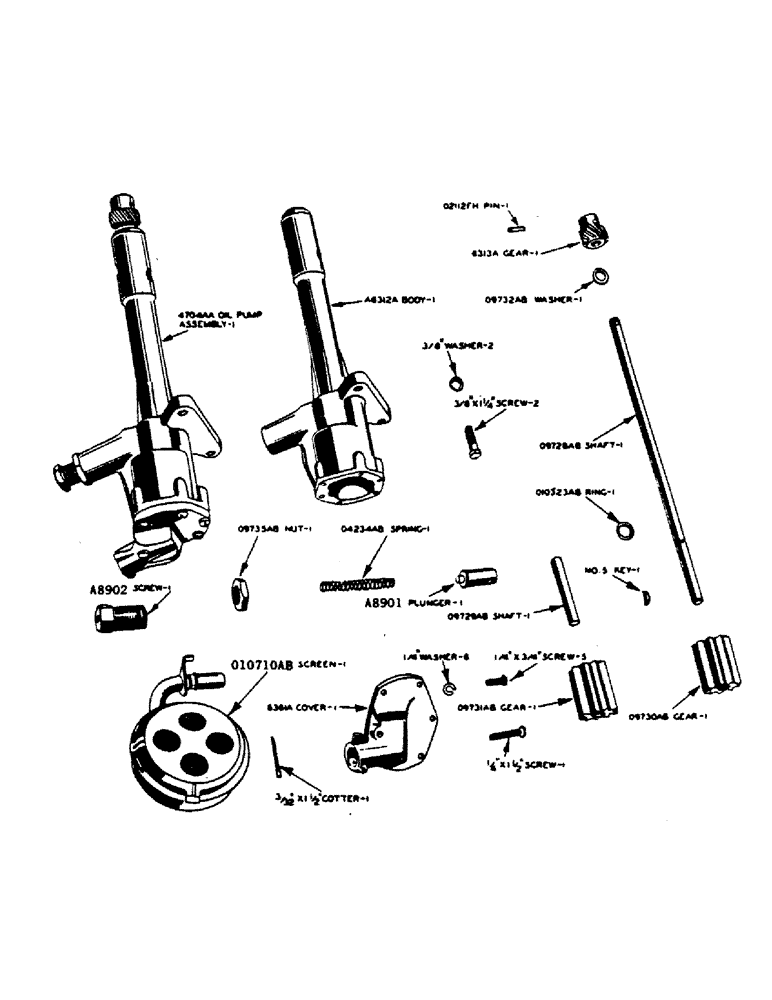

Запчасти Case IH 400-SERIES (053) - POWRCEL DIESEL ENGINE, OIL PUMP (02) - ENGINE

A8901

X

PLUNGER - oil pump relief

1шт.

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, oil pump relief

1шт.

A6312A

BODY - oil pump

1шт.

3/8" x 1-1/4" N.C. hex. bolt with lockwasher

2шт.

6313A

GEAR - oil pump drive

1шт.

6361A

COVER - oil pump body

1шт.

1/4" x 3/4" N.C. rhd. mach. screw with lockwasher

5шт.

1/4" x 1-1/2" N.C. rhd. mach. screw with lockwasher

1шт.

O4234AB

X

SPRING - oil pump relief plunger

1шт.

O9728AB

X

SHAFT - drive, oil pump

1шт.

O9729AB

SHAFT - stub, oil pump

1шт.

O9730AB

X

GEAR - oil pump, with keyway

1шт.

No. 5 Woodruff key

1шт.

O9731AB

X

GEAR - oil pump, without keyway

1шт.

O9732AB

X

WASHER - thrust, oil pump drive gear

1шт.

O9733AB

PLUNGER - oil pump relief (use A8901 and A8902)

1шт.

O9734AB

SCREW - adjusting, oil pump relief (use A8901 and A8902)

1шт.

O9735AB

NUT - oil pump relief adjusting screw

1шт.

O10323AB

RING

SNAP RING - oil pump drive shaft

1шт.

O10710AB

SCREEN - oil pump, float-O-type

1шт.

3/32" x 1-1/2" cotter pin

1шт.

O2112FH

X

ROLL PIN - oil pump drive gear (3/16" x 7/8")

1шт.

4704AA

X

PUMP - oil, assembly, less screen

1шт.
