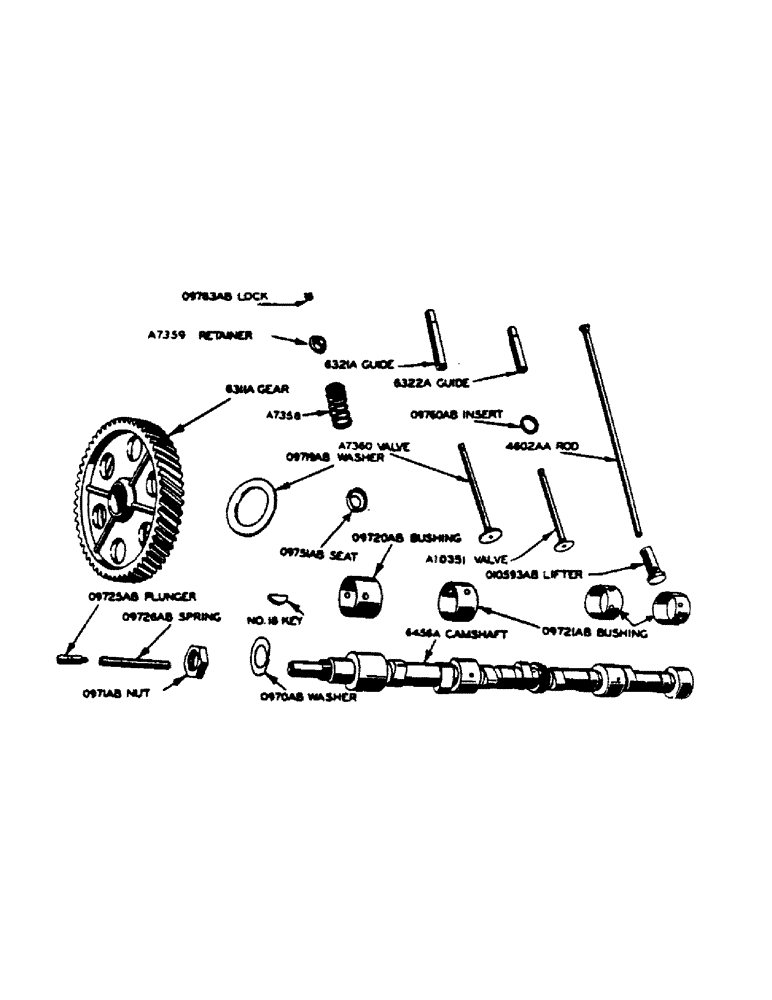

Запчасти Case IH 400-SERIES (052) - POWRCEL DIESEL ENGINE, VALVES, PUSH RODS AND CAMSHAFT (02) - ENGINE

A7205

LIFTER - push rod (.010" oversize)(see 010593AB)

8шт.

A7358

SPRING

- inlet and exhaust valve

8шт.

A7359

RETAINER - inlet and exhaust valve spring

8шт.

A7360

VALVE,ENGINE,INLET,S

VALVE - inlet

4шт.

A7361

X

VALVE - exhaust (use A10351)

1шт.

A10351

VALVE, ENG EXHAUST,

VALVE - exhaust (scraper type)

4шт.

6311A

X

GEAR - camshaft

1шт.

No. 18 Woodruff key

1шт.

A26294

GUIDE

- inlet valve (Replaces 6321A)

4шт.

A11803

GUIDE

- exhaust valve (Replaces 6322A)

4шт.

6456A

CAMSHAFT

1шт.

O970AB

X

LOCKWASHER - camshaft nut

1шт.

O971AB

X

NUT - camshaft (1-1/8" hex., N.C. thrd.)

1шт.

O9719AB

WASHER - camshaft thrust

1шт.

A27850

BUSHING

- camshaft, front (Replaces O9720AB)

1шт.

A27851

BUSHING,55.66mm ID x 57.24mm OD x 36.75mm L

- camshaft, second, thrid and rear (Replaces O9721AB)

3шт.

O9725AB

X

PLUNGER - camshaft thrust

1шт.

O9726AB

X

SPRING - camshaft thrust plunger

1шт.

O9751AB

X

SEAT - inlet and exhaust valve spring

8шт.

O9760AB

INSERT - exhaust valve seat

4шт.

O9763AB

LOCK - valve spring retainer (2 required per valve)

16шт.

O10593AB

HYDRAULIC LIFT

LIFTER - push rod (standard size)(see A7205)

8шт.

4602AA

ROD

- push

8шт.
