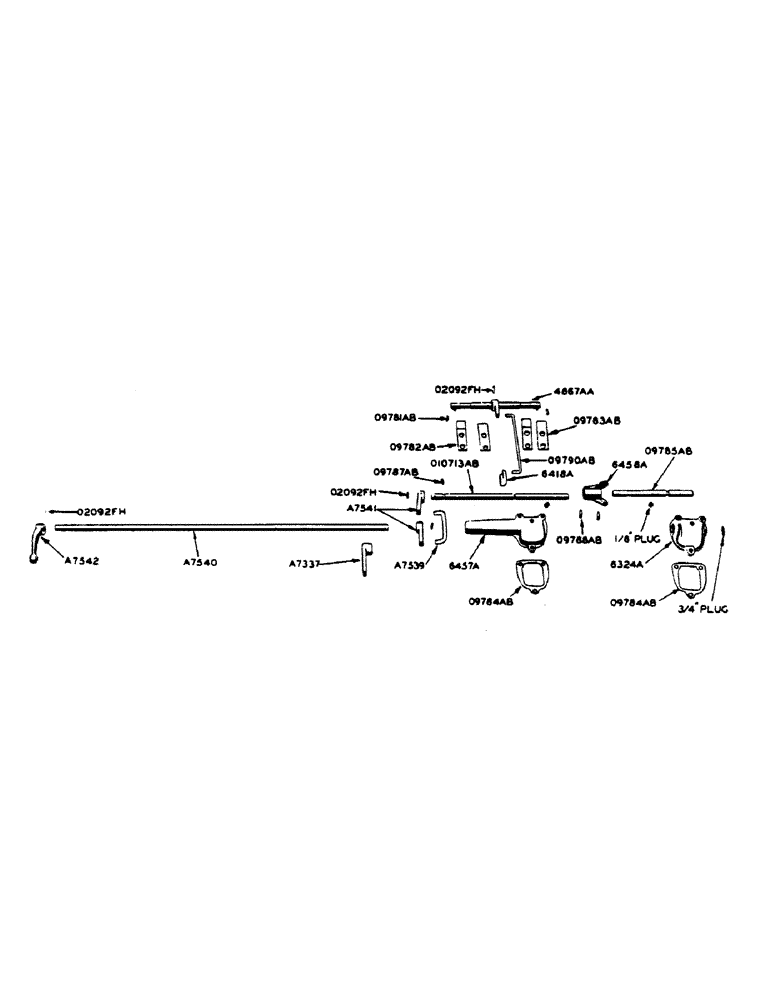

Запчасти Case IH 400-SERIES (050) - POWRCEL DIESEL ENGINE, DECOMPRESSOR (02) - ENGINE

A7337

BRACKET - decompressor rod

1шт.

5/16" x 7/8" N.F. hex. bolt w/hex nut and lockwasher

2шт.

A7539

LINK - decompressor control

1шт.

1/8" x 3/4" cotter pin

2шт.

A7540

SHAFT - decompressor hand lever (for all but orchard models) (see A9247)

1шт.

A7541

LEVER - decompressor control shaft

2шт.

A7542

LEVER - hand, decompressor control

1шт.

A9247

SHAFT - decompressor hand lever (for orchard models)(see A7540)

1шт.

A9248

SUPPORT - decompressor control (for orchard models)

1шт.

1/2" x 1-3/4" N.C. hex. bolt w/lockwasher

2шт.

6324A

HOUSING - decompressor intermediate control lever

1шт.

3/4" Welch plug

1шт.

1/8" slotted hd. pipe plug

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

1шт.

6418A

LEVER - decompressor control

4шт.

6457A

HOUSING - decompressor intermediate control lever, rear

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

1шт.

5/16" x 1-34" N.C. hex. bolt w/lockwasher

2шт.

1/8" slotted hd. pipe plug

1шт.

6458A

COUPLING - decompressor intermediate control shaft stop

1шт.

1/4" x 1" N.C. sq. hd. oval point set screw w/hex. nut

2шт.

O9781AB

PIN - decompressor trip

4шт.

O9782AB

BRACKET - decompressor shaft, top

4шт.

7/16" x 4" N.C. hex. bolt w/lockwasher

4шт.

O9783AB

BRACKET - decompressor shaft, bottom

4шт.

O9784AB

GASKET - decompressor control lever housing

2шт.

O9785AB

SHAFT - decompressor intermediate control, short

1шт.

O9787AB

X

"O" RING - decompressor intermediate control shafts

3шт.

O9788AB

X

SET SCREW - decompressor control shaft

2шт.

O9790AB

LINK - decompressor control, upper

2шт.

1/16" x 5/8" cotter pin

4шт.

O10713AB

SHAFT - decompressor intermediate control, rear

1шт.

O2092FH

X

ROLL PIN (3/16" X 1") - for 6418A, A7541 and A7542 levers

7шт.

4867AA

SHAFT - decompressor, with lever and trip pin

2шт.
