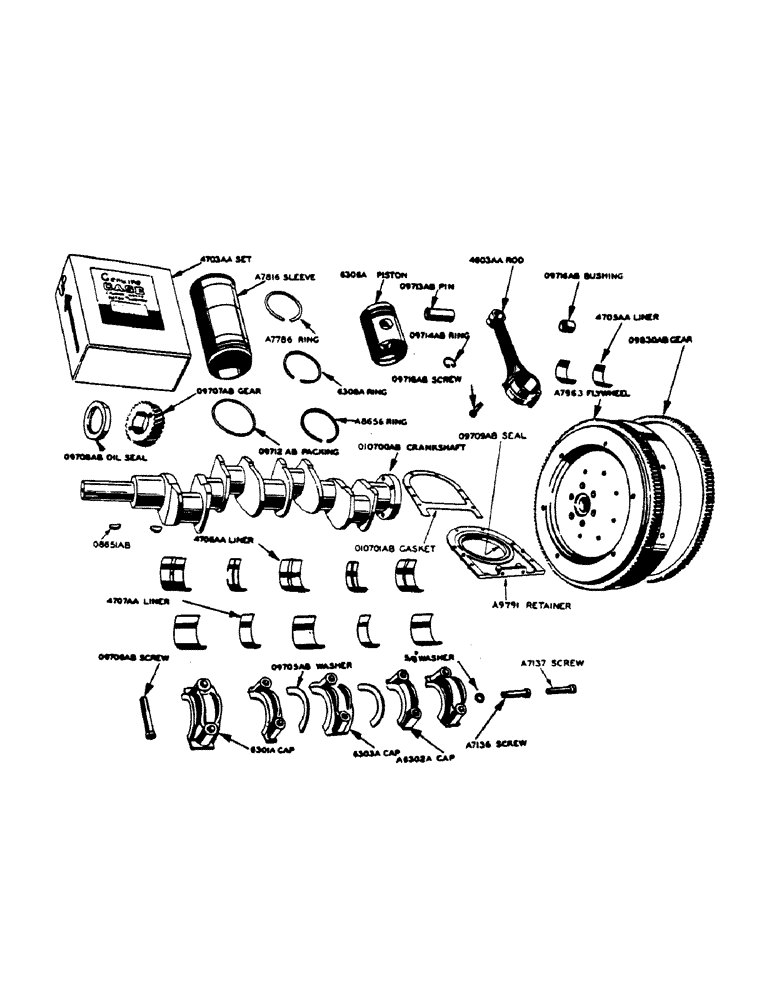

Запчасти Case IH 400-SERIES (048) - POWRCEL DIESEL ENGINE, PISTONS AND CONNECTING RODS, CRANKSHAFT (02) - ENGINE

A7173

X

LINERS - connecting rod bearing top and bottom half (.002" undersize)

4шт.

A7175

X

LINERS - connecting rod bearing, top and bottom half (.010" undersize)

4шт.

A7177

SHIELD

LINERS - connecting rod bearing, top and bottom half (.020" undersize)

4шт.

A7179

X

LINERS - connecting rod bearing, top and bottom half (.030" undersize)

4шт.

A7786

OIL SEAL

RING - piston, top (see note)

4шт.

A7816

X

SLEEVE - cylinder

4шт.

A8095

KIT

RINGS - piston, set of (16) Perfect Circle 2-in-1 chrome

1шт.

A8656

RING

- piston, oil (see note)

4шт.

6306A

X

PISTON

4шт.

6308A

X

RING - piston, second and third (see note)

8шт.

6309A

RING - piston, oil (use A8656)

1шт.

O9712AB

X

"O" RING - cylinder sleeve

8шт.

O9713AB

PIN - piston

4шт.

O9714AB

X

RING - piston pin retainer

8шт.

O9716AB

BUSHING - connecting rod

4шт.

O9718AB

X

CAP SCREW - connecting rod

8шт.

4603AA

X

ROD - connecting, with cap, bushings and cap screws

4шт.

4703AA

X

SET OF (2) - cylinder sleeves, pistons, rings and pistons pins

2шт.

4705AA

X

LINER - connecting rod bearing, top and bottom half (standard size)

4шт.

A7136

HEX SOC SCREW,Sl Hex, 9/16" - 18 x 2 5/32"

SCREW - dowel, flywheel, crankshaft

2шт.

A7137

HEX SOC SCREW,Sl Hex, 5/8" - 18 x 2 1/8"

CAP SCREW - flywheel, crankshaft

4шт.

A7151

SUPPORT

FLYWHEEL - (use A7963), crankshaft

1шт.

A7182

KIT

LINERS - crankshaft bearing (wide-upper and lower) (.002" undersize)

3шт.

A7185

CHAIN

LINERS - crankshaft bearing (narrow-upper and lower) (.002" undersize)

2шт.

A7188

BEARING LINER

LINERS - crankshaft bearing (wide-upper and lower) (.010" undersize)

3шт.

A7191

SPINDLE

LINERS - crankshaft bearing (narrow-upper and lower) (.010" undersize)

2шт.

A7194

KIT

LINERS - crankshaft bearing (wide-upper and lower) (.020" undersize)

3шт.

A7197

LINERS - crankshaft bearing (narrow-upper and lower) (.020" undersize)

2шт.

A7200

KIT

LINERS - crankshaft bearing (wide-upper and lower) (.030" undersize)

3шт.

A7203

LINERS - crankshaft bearing (narrow-upper and lower) (.030" undersize)

2шт.

A7204

WASHER

- crankshaft thrust (.006" oversize) (see 09705AB)

2шт.

A7963

FLYWHEEL - with ring gear, crankshaft

1шт.

A9791

RETAINER

- crankshaft rear oil seal, with dowel pins

1шт.

3/8" x 1-1/8" N.C. hex. bolt with lockwasher, crankshaft

6шт.

6301A

CAP - crankshaft bearing, wide

2шт.

6302A

CAP - crankshaft bearing, narrow (use A6302A)

1шт.

A6302A

X

CAP - crankshaft bearing, narrow

2шт.

6303A

CAP - crankshaft thrust bearing

1шт.

6452A

RETAINER - crankshaft rear oil seal (use A9791)

1шт.

O8651AB

X

KEY - Woodruff, for crankshaft

2шт.

O9705AB

X

WASHER - crankshaft thrust (standard size) (see A7204)

2шт.

O9706AB

SCREW - crankshaft bearing cap

10шт.

O9707AB

X

GEAR - crankshaft

1шт.

O9708AB

X

OIL SEAL - crankshaft, front

1шт.

A23085

OIL SEAL

OIL SEAL - crankshaft, rear (Replaces O9709AB)

1шт.

O9710AB

PIN - dowel, for 6452A retainer, crankshaft

2шт.

O9830AB

X

RING GEAR - flywheel (137 teeth), crankshaft

1шт.

O10035AB

X

"O" RING - flywheel, crankshaft

1шт.

O10700AB

CRANKSHAFT

1шт.

O10701AB

X

GASKET - crankshaft rear oil seal retainer

1шт.

4706AA

X

LINER - crankshaft bearing (wide-upper lower) (standard size)

3шт.

4707AA

LINER - crankshaft bearing (narrow-upper and lower) (standard size)

2шт.
