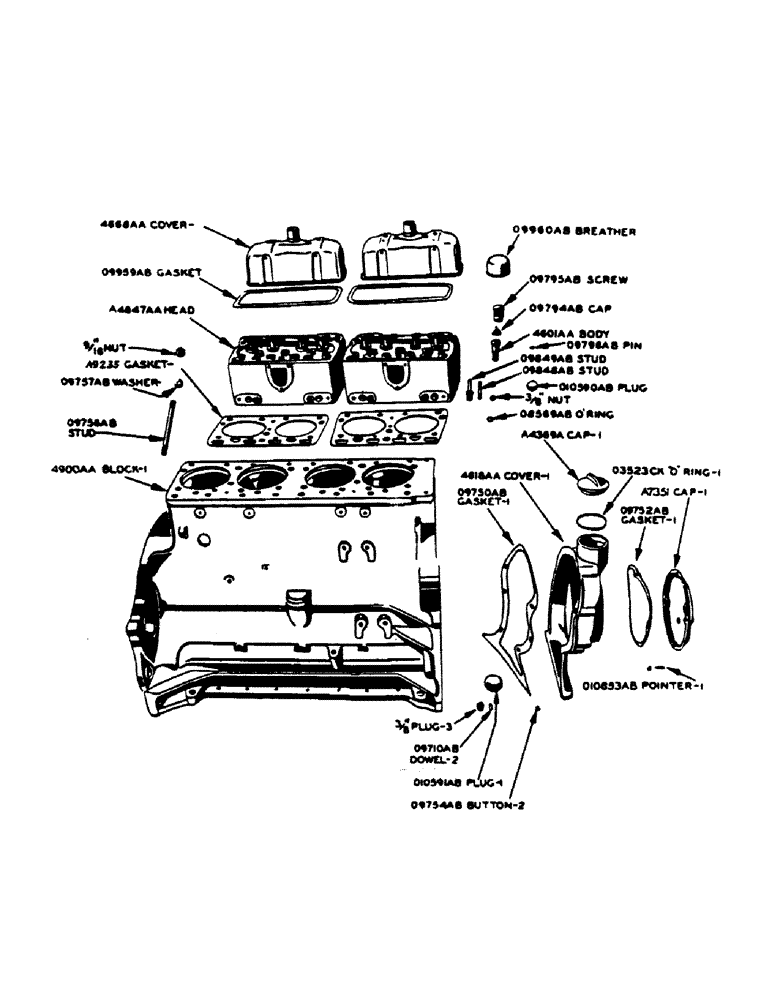

Запчасти Case IH 400-SERIES (046) - POWRCEL DIESEL ENGINE, CYLINDER HEAD, POWRCWL, CYLINDER BLOCK, OIL PAN, TIMING GEAR COVER (02) - ENGINE

A7669

RING

- rubber, for A9235 cylinder head gasket

4шт.

A7670

GASKET - cylinder head (use A9235)

1шт.

A9235

CYLINDER HEAD GASKET

- cylinder head

2шт.

A6320A

HEAD - cylinder (use A4647AA)

1шт.

O8569AB

X

"O" RING - in cylinder head gasket for oil passage

2шт.

O9756AB

X

STUD - cylinder head 9/16" hex. nut, light, N.F. thrd

18шт.

O9757AB

X

WASHER - cylinder head stud

18шт.

O9848AB

X

STUD - nozzle holder, small

4шт.

3/8" hex. nut, light, N.F. thrd.

4шт.

O9849AB

STUD - nozzle holder, large

4шт.

3/8" light N.F. hex nut

4шт.

O9959AB

X

GASKET - cylinder head cover

2шт.

O9960AB

X

BREATHER - cylinder head cover

2шт.

105590AB

WELCH PLUG - for cylinder head (Cadmium plated) (1-5/8" dia.)

4шт.

A4647AA

HEAD - cylinder, with valve guides and valve inserts

2шт.

4668AA

COVER - cylinder head

2шт.

O9794AB

X

CAP - powrcel

4шт.

O9795AB

X

SCREW - powrcel clamp

4шт.

O9796AB

PIN - locating powrcel body (1/8" dia. x 5/16" long)

4шт.

4601AA

X

BODY - powrcel

4шт.

A7509

PLUG

WELCH PLUG - for cylinder block (1-3/8" dia.)

1шт.

A7532

CONDUIT - fastens to cylinder block, for wires

1шт.

5/16" x 1/2" N.C. hex. bolt, cylinder block

2шт.

6400A

BLOCK - (use 4900AA), cylinder

1шт.

O9738AB

FELT WASHER - lube oil level gauge, cylinder block

1шт.

O9739AB

X

VALVE - water drain, for cylinder block (1/4" P.T.)

1шт.

O10591AB

X

WELCH PLUG - for cylinder block (Cadmium plated) (1-13/16" dia.)

1шт.

V22152

CAP

PLUG - Welch, distributor hole in block (1-1/2" dia.), cylinder

1шт.

4642AA

X

GAUGE - lube oil level, with felt washer, cylinder block

1шт.

4900AA

BLOCK - cylinder, with bearing caps, camshaft bushings and plugs

1шт.

3/8" ctsk. headless pipe plug, cylinder block

4шт.

1" ctsk. headless pipe plug, cylinder block

1шт.

2-3/8" Welch plug, cylinder block

1шт.

1/8" slotted hd. pipe plug, cylinder block

3шт.

A7616

GASKET KIT

GASKETS - set of oil pan

1шт.

O9843AB

X

PLUG - drain, oil pan, magnetic

1шт.

O9844AB

X

GASKET - oil pan drain plug

1шт.

4903AA

PAN - oil

1шт.

3/8" x 7/8" N.C. hex. bolt with lockwasher, oil pan

26шт.

A7351

CAP - timing gear cover, with thrust button

1шт.

3/8" x 3/4" N.C. hex. bolt with lockwasher, timing gear cover

1шт.

3/8" x 1-1/8" N.C. hex. bolt with lockwasher, timing gear cover

3шт.

A4369A

CAP - oil filter, timing gear cover

1шт.

6316A

COVER - timing gear (Use 4618AA)

1шт.

6469A

CAP - timing gear cover (Use A7351)

1шт.

O9710AB

PIN - dowel, timing gear cover

2шт.

O9750AB

X

GASKET - timing gear cover

1шт.

O9752AB

X

GASKET - timing gear cover cap

1шт.

O9754AB

BUTTON - thrust, timing gear cover and cover cap

2шт.

O10853AB

POINTER - timing, gear cover

1шт.

1/4" x 1/2" N.C. hex. bolt, timing gear cover

2шт.

1/4" shakeproof ext. - int. tooth lockwasher no. 4014-20, timing gear cover

2шт.

O3523CK

X

"O" RING - for A4369A oil filler cap, timing gear cover

1шт.

4618AA

COVER - timing gear, with 09708AB oil seal, dowel pin and thrust button

1шт.

3/8" x 1" N.C. hex. bolt with lockwasher 3/8" x 2-1/2" N.C. hex. bolt with lockwasher, timing gear cover

8шт.

A20153

GASKET

SET, timing gear cover

1шт.

A189508

GASKET

Sub from A20153, timing gear cover

1шт.
