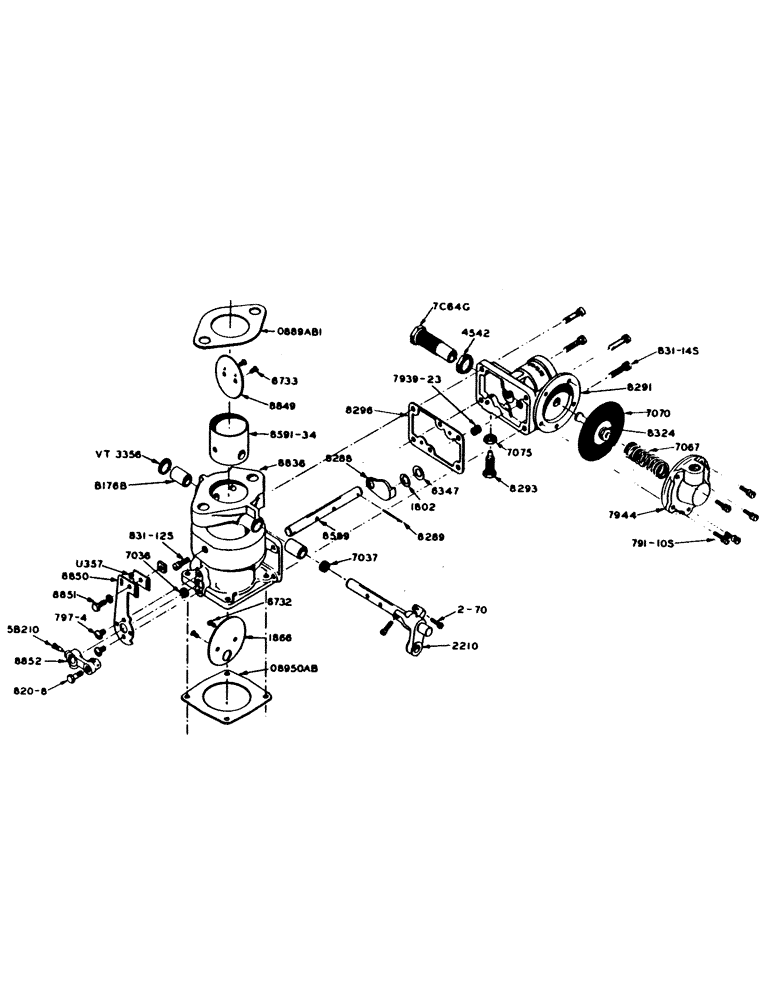

Запчасти Case IH 400-SERIES (042) - POWRDYNE GAS ENGINE, 4077AA ENSIGN CARBURETOR PARTS MODEL 1-1/4" XG -- NO. 8833 (02) - ENGINE

2-70

KEY

SCREW - throttle stop adjusting

2шт.

5B210

SCREW - "B" set, choke lever

1шт.

7C64G

SCREW - fuel adjusting

1шт.

B176B

BUSHING - throttle bearing

2шт.

U357

CLAMP - choke tube

1шт.

791-10S

SCREW - economizer cover, and lockwasher

5шт.

Part of Repair Parts Kit P/N 1850

1шт.

797-4

SCREW - choke tube support

2шт.

Part of Repair Parts Kit P/N 1850

1шт.

820-8

SCREW - swivel, choke lever

1шт.

831-12S

SCREW - set, and lockwasher, for venturi

1шт.

831-14S

SCREW - gas inlet, and lockwasher

4шт.

Part of Repair Parts Kit P/N 1850

1шт.

1802

TOY

WASHER - spring

1шт.

Part of Repair Parts Kit P/N 1850

1шт.

1850

KIT - repair parts, Includes: P/N 2-70, P/N 5B210, P/N 791-10S, P/N 797-4, P/N 831-14S, P/N 1802, P/N 4824, P/N 6732, P/N 6733, P/N 7036, P/N 7037, P/N 7067, P/N 7070, P/N 7075, P/N 8289, P/N 8293, P/N 8296, P/N 8589, P/N O889AB1, P/N O8950AB

1шт.

1866

HAIR PIN COTTER

DISC - choke

1шт.

2210

SPARE PART

SHAFT - throttle, sand stop lever assembly

1шт.

4542

LOCKNUT - fuel adjusting screw

1шт.

4824

SHAFT - throttle (see 2210)

1шт.

Part of Repair Parts Kit P/N 1850

1шт.

6347

THREADED TIE-ROD

WASHER - valve lever

1шт.

6732

SCREW - choke shaft disc

2шт.

Part of Repair Parts Kit P/N 1850

1шт.

6733

SCREW - throttle shaft disc

2шт.

Part of Repair Parts Kit P/N 1850

1шт.

7036

BOLT,Hex, 1 1/4" - 12 x 3 1/2", Gr 8

WASHER - dust, choke lever

1шт.

Part of Repair Parts Kit P/N 1850

1шт.

7037

TESTER

WASHER - dust, throttle shaft

1шт.

Part of Repair Parts Kit P/N 1850

1шт.

7067

CYLINDER END CAP

SPRING - economizer

1шт.

Part of Repair Parts Kit P/N 1850

1шт.

7070

DIAPHRAGM - (see 8324)

1шт.

Part of Repair Parts Kit P/N 1850

1шт.

7075

LOCTITE

LOCKNUT - starting adjusting screw

1шт.

Part of Repair Parts Kit P/N 1850

1шт.

7939-23

SCREW - bleed

1шт.

7944

HYDRAULIC HOSE,0.50" ID x 100.00", SAE J517,SAE J516,SAE 100R17

COVER - economizer

1шт.

8288

BUSHING

LEVER - valve

1шт.

8289

WASHER

PIN - valve lever

1шт.

8291

SPINDLE

INLET - gas, and economizer

1шт.

8293

CAP

SCREW - starting adjusting

1шт.

8296

DECAL

GASKET - gas inlet and economizer

1шт.

8324

TUBE

DIAPHRAGM - economizer, assembly

1шт.

8589

SHAFT - choke

1шт.

8591-34

VENTURI -

1шт.

8836

BEARING CUP

BODY - (partial assembly)

1шт.

8849

X

DISC - throttle

1шт.

8850

SPRING

SUPPORT - choke tube

1шт.

8851

SCREW - choke tube clamp, with nut

1шт.

8852

LEVER - choke, assembly

1шт.

O889AB1

X

GASKET -, Serial Range: carburetor-manifold

1шт.

O8950AB

X

GASKET - carburetor adapter Screw - No. 12-24x5/8" rhd. mach. Washer - No. 12 std. lock

4шт.

VT3356

PLUG - 1/2" Welch

1шт.
