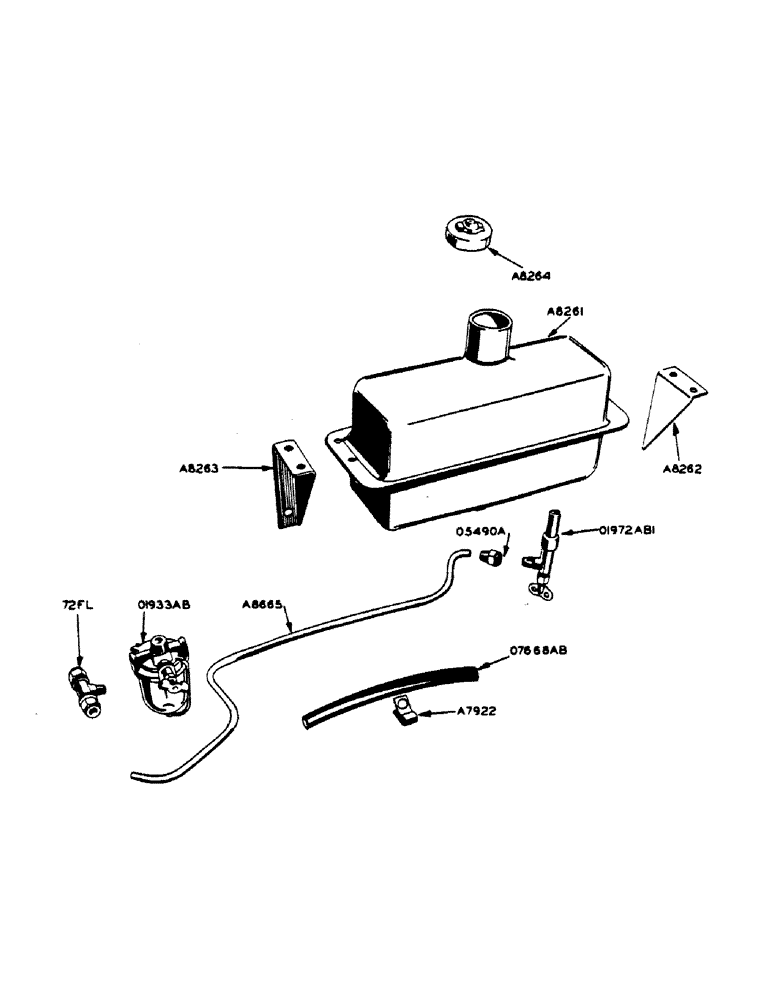

Запчасти Case IH 400-SERIES (036) - POWRDYNE GAS ENGINE, STARTING TANK FOR LOW COST FUEL (02) - ENGINE

A7922

CLIP

- for A8665 tube, on fuel tank front support

1шт.

A8261

TANK - fuel auxiliary 5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

A8262

SUPPORT - auxiliary fuel tank, front 3/8" x 3/4" N.C. hex. bolt w/lockwasher

1шт.

A8263

SUPPORT - auxiliary fuel tank, rear 3/8" x 3/4" N.C. hex. bolt w/lockwasher

1шт.

A8264

CAP - auxiliary fuel tank

1шт.

A8665

TUBE - needle valve to strainer with 1-05490A nut

1шт.

O5490A

X

NUT - for A8665 5/16" flared tube - needle, Serial Range: valve-strainer

1шт.

O1972AB1

VALVE - needle, auxiliary fuel tank

1шт.

O7668AB

LOOM - for tube from auxiliary tank needle, Serial Range: valve-strainer

1шт.
