(035) - POWRDYNE GAS ENGINE, PARTS FOR 01933AB FUEL STRAINER

Запчасти Case IH 400-SERIES (035) - POWRDYNE GAS ENGINE, PARTS FOR 01933AB FUEL STRAINER (02) - ENGINE

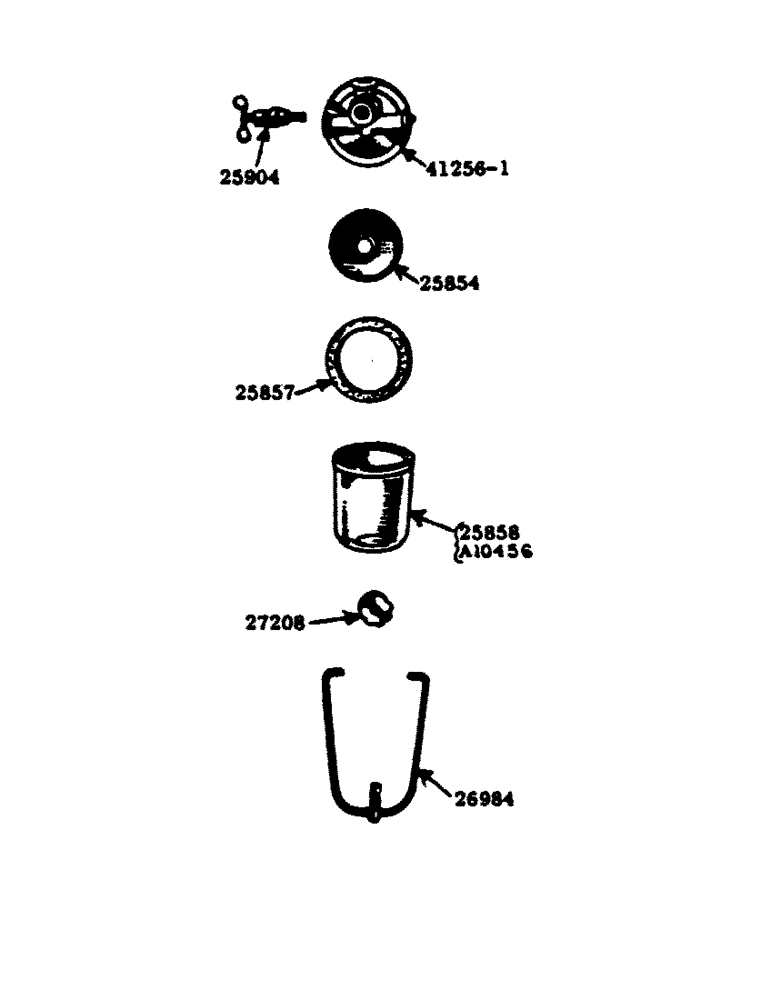

Схема запчастей Case IH 400-SERIES - (035) - POWRDYNE GAS ENGINE, PARTS FOR 01933AB FUEL STRAINER (02) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

25854

SCREW

SCREEN ASSEMBLY

1шт.

25857

BEARING

GASKET - cork

1шт.

25858

RIVET

BOWL - glass (see A10456)

1шт.

25904

VALVE - needle, assembly

1шт.

26984

BAIL ASSEMBLY

1шт.

27208

SLEEVE

CUP AND NUT - assembly

1шт.

41256-1

BODY - strainer

1шт.

A10456

BOWL - metal (special for use with mounted corn and cotton pickers) (see 25858)

1шт.
