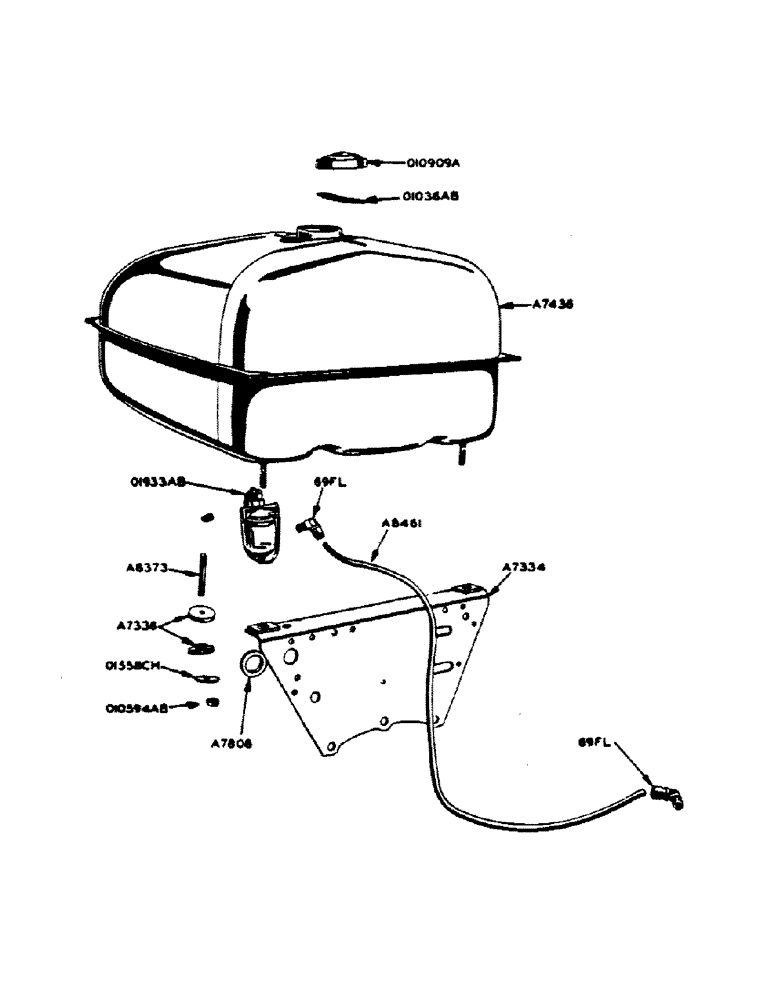

Запчасти Case IH 400-SERIES (034) - POWRDYNE GAS ENGINE, FUEL TANK (02) - ENGINE

A7334

SUPPORT - fuel tank, front

1шт.

1/2" x 1-1/2" N.C. hex bolt w/lockwasher

3шт.

A7336

CUSHION

BUSHING - fuel tank support

6шт.

A7436

X

TANK - fuel

1шт.

A7807

TUBE - fuel strainer to carburetor (for tractors with hand throttle) (see A8461)

1шт.

Imperial flex elbow no. 69FL (5/16" tube size x 1/8" pipe thrd)

2шт.

Imperial flex connector no. 68FL (5/16" tube size x 1/8" pipe thrd.)

1шт.

Imperial flex tee no. 72FL (5/16" tube size x 1/8" pipe thrd. (for low cost fuel)

1шт.

A7808

GROMMET

- fuel tube, on fuel tank front support

1шт.

A8373

STUD

- fuel tank mounting

3шт.

A8461

TUBE - fuel strainer to carburetor (for tractors with foot throttle) (see A7807)

1шт.

Imperial flex elbow no. 69FL (5/16" tube size x 1/8" pipe thrd)

2шт.

Imperial flex tee no. 72FL (5/16" tube size x 1/8" pipe thrd.) for low cost fuel)

1шт.

A9146

SUPPORT - fuel tank, rear (for orchard models)

1шт.

3/8" x 1-1/4" N.F. hex bolt w/hex. nut and lockwasher

1шт.

A9147

GEAR

BRACE - fuel tank rear support (for orchard models)

1шт.

O1036AB

X

GASKET - fuel tank cap

1шт.

O1933AB

X

STRAINER - fuel

1шт.

1/8" sq. hd. pipe plug

1шт.

O10594AB

X

STOP NUT - fuel tank mounting stud (3/8" - 24 N.F. thrd.)

3шт.

O1558CH

X

WASHER - fuel tank mounting stud

3шт.

O10909A

X

CAP - fuel tank

1шт.
