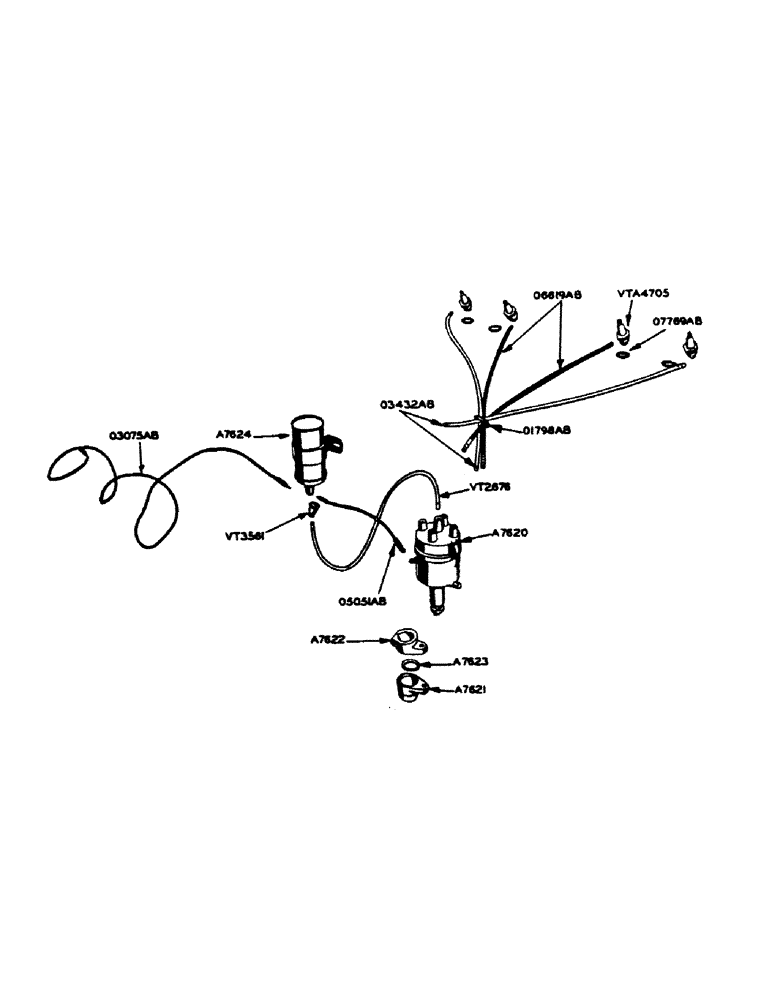

Запчасти Case IH 400-SERIES (031) - POWRDYNE GAS ENGINE, DISTRIBUTOR IGNITION (02) - ENGINE

A7620

DISTRIBUTOR - (Electric Auto-Lite no. IAD-6003-IB)

1шт.

A7621

INSERT - distributor support

1шт.

A7622

CLAMP - distributor 5/16" x 1" N.C. hex. bolt w/lockwasher 5/16" x 1-1/4" N.C. hex. bolt w/lockwasher

1шт.

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor

1шт.

A7624

X

COIL - ignition (6 volt) 5/16" x 5/8" N.C. rhd. mach. screw 5/16" shakeproof external - internal lockwasher #4018-24

2шт.

A7819

KNOB

- distributor ignition switch

1шт.

A7935

SWITCH

- distributor ignition, with A7819 knob (see A9532)

1шт.

A9532

SWITCH - lock, distributor ignition, with A7819 knob (see A7935)

1шт.

O5939A

CLIP - for 02999AB wire (on cylinder block) 5/16" x 5/8" N.C. rhd. mach. screw with lockwasher

1шт.

O6019A

HANDLE - spark plug wrench

1шт.

O1798AB

RING - ignition cable

1шт.

O2999AB

WIRE - ignition switch to coil (80" long) (prior to tractor no. 8067694) (see 03075AB)

1шт.

O3075AB

WIRE - ignition switch to coil (67" long) (for all but orchard models no. 8067694 and after) (see 02999AB or 06925AB)

1шт.

O3432AB

X

WIRE - spark plug, to no. 1 and no. 4 cylinders (18" long)

2шт.

O5051AB

WIRE - coil to distributor (9" long) (Tractor no. 8067694 and after) (see 06528AB)

1шт.

O6528AB

WIRE - coil to distributor (13" long) (prior to tractor no. 8067694) (see 05051AB)

1шт.

O6619AB

ELECTRICAL WIRE

WIRE - spark plug, to no. 2 and no. 3 cylinders (14" long)

2шт.

O6925AB

WIRE - ignition switch to coil (72" long) (for orchard models) (see 02999AB or 03075AB)

1шт.

O7421AB

WRENCH - spark plug

1шт.

O7524AB

WIRE - ammeter to ignition switch (17-1/4" long)

1шт.

O7769AB

X

GASKET - spark plug

4шт.

VT2876

X

WIRE - ignition, distributor to coil (12" long)

1шт.

VT3561

X

NIPPLE - distributor, coil and spark plug wires

6шт.

VTA4705

X

PLUG - spark, 18MM, Champion #8 commercial (includes gasket)

4шт.
