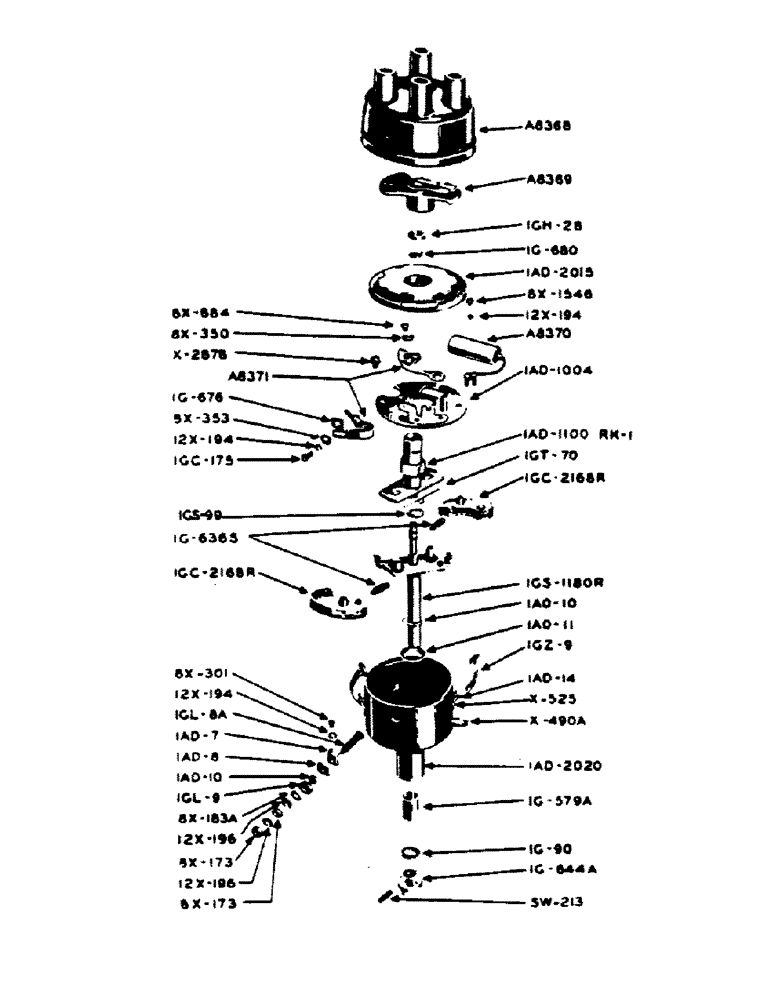

Запчасти Case IH 400-SERIES (029) - POWRDYNE GAS ENGINE, PARTS FOR A7620 DISTRIBUTOR (02) - ENGINE

A8368

CAP

ASSEMBLY - (Electric Auto-Lite No. IG-1324D)

1шт.

All parts number listed, exception for A8368, A8369, A8370, and A8371 must be obtained from an Auto-Lite Service Station.

1шт.

A8369

ROTOR

- (Electric Auto-Lite No. IG-1657R)

1шт.

All parts number listed, exception for A8368, A8369, A8370, and A8371 must be obtained from an Auto-Lite Service Station.

1шт.

A8370

PACKAGE

CONDENSER - (Electric Auto-Lite No. IGW-3139)

1шт.

All parts number listed, exception for A8368, A8369, A8370, and A8371 must be obtained from an Auto-Lite Service Station.

1шт.

A8371

X

CONTACT SET - breaker points (Electric Auto-Lite No. IGP-3028FS)

1шт.

All parts number listed, exception for A8368, A8369, A8370, and A8371 must be obtained from an Auto-Lite Service Station.

1шт.

IAD-7

CONNECTOR - terminal stud

1шт.

IAD-8

INSULATION - terminal stud, inner

1шт.

IAD-9

BRACKET - breaker plate mounting

2шт.

IAD-10

BUSHING - terminal stud insulation

1шт.

IAD-14

BRACKET - cap spring

2шт.

IAD-1004

PLATE - breaker (use IAD-2004)

1шт.

IAD-1100RK-1

CAM AND STOP PLATE - 4 cyl., R.H.

1шт.

IAD-2004

PLATE ASSEMBLY - breaker

1шт.

IAD-2015

PLATE ASSEMBLY - dust seal

1шт.

IAD-2020

BASE ASSEMBLY - distributor

1шт.

IAO-10

WASHER - thrust, inner, drive shaft, upper

1шт.

IAO-11

WASHER - thrust, outer, drive shaft, upper

1шт.

IG-90

WASHER - thrust, drive shaft, lower

1шт.

IG-94

TERMINAL - H.T. wire

5шт.

IG-514

CONTACT - plunger

1шт.

IG-515A

SPRING - contact

1шт.

IG-579A

BEARING - drive shaft, bronze

2шт.

IG-636S

SPRING - governor weight

2шт.

IG-644A

COUPLING - drive, distributor

1шт.

IG-676

CLIP - spring, contact arm

1шт.

IG-680

SNAP RING - can retaining

1шт.

IGC-175

SCREW - spring clamp (6#-32 x 5/16" hex. hd.)

1шт.

IGC-2168R

WEIGHT - governor

2шт.

IGH-28

WICK - felt, cam sleeve

1шт.

IGL-8A

STUD - primary terminal

1шт.

IGL-9

WASHER - terminal stud insulation

1шт.

IGS-32

PLUG - vent hole, rubber

1шт.

IGS-99

SPACER - cam

1шт.

IGS-117

WICK - felt

1шт.

IGS-118OR

SHAFT - distributor drive

1шт.

IGT-70

SPRING - anti-rattle

1шт.

IGZ-9

SPRING - distributor cap clamp

2шт.

SW-213

RIVET - drive coupling

1шт.

X-490A

OILER - distributor shaft bearing

1шт.

X525

RIVET - clamp spring, tubular

4шт.

X-2878

SCREW - breaker plate mounting, fill. hd. (#10-32 x 5/16")

2шт.

8X-173

NUT - terminal stud (#10-32 hex.)

2шт.

8X-183A

WASHER - terminal stud, #10 plain

1шт.

8X-301

SCREW - connector (#6-32 x 3/16" rhd.)

1шт.

8X-350

WASHER - #8 plain, contact lock screw

1шт.

8X-353

WASHER - #6 plain, clamp screw

1шт.

8X-884

LOCK SCREW - breaker contact, fill. head (#8-32 x 3/16")

1шт.

8X-1546

SCREW - condenser mounting (#6-32 x 5/32" fill. hd.)

1шт.

12X-194

LOCKWASHER - #6, for IGC-175 screw, 8X-301 screw and 8X-1546

3шт.

12X-196

LOCKWASHER - terminal stud, #10

2шт.
