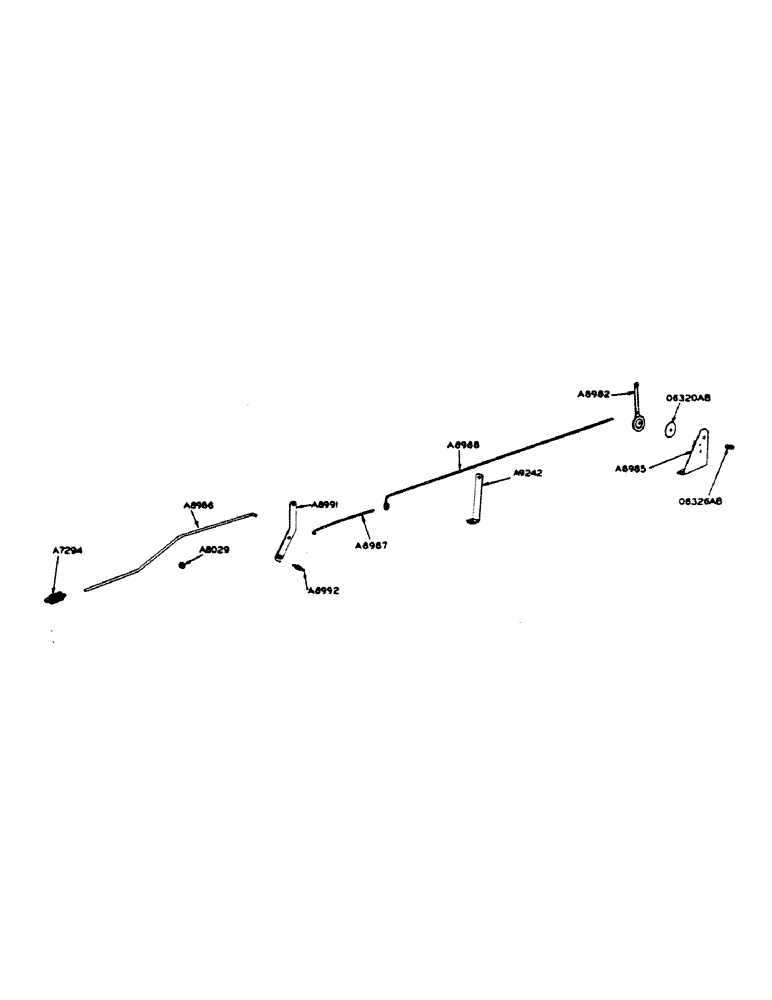

Запчасти Case IH 400-SERIES (028) - POWRDYNE GAS ENGINE, THROTTLE CONTROL FOR ORCHARD MODELS (02) - ENGINE

A7294

SPRING

- governor

1шт.

A8029

COLLAR - throttle front rod stop

1шт.

1/4" x 3/8" N.C. sq. hd. cup pt. set screw

1шт.

A8151

SUPPORT - throttle shaft

1шт.

1/2" x 2-3/4" N.C. hex bolt

1шт.

A8982

LEVER - hand, throttle control

1шт.

5/16" x 1-1/2" N.F. hex. bolt with dbl. hex nut

1шт.

A8985

BRACKET - throttle control hand lever

1шт.

1/2" x 1-3/4" N.C. hex. bolt w/lockwasher

2шт.

A8986

ROD - throttle control front

1шт.

3/32" x 5/8" cotter pin

1шт.

A8987

ROD - throttle control, center

1шт.

5/16" N.C. hex. nut

2шт.

3/32" x 5/8" cotter pin

1шт.

A8988

ROD - throttle control, rear

1шт.

3/32" x 5/8" cotter pin

1шт.

A8991

LINK - throttle control

1шт.

A8992

STUD - throttle control link pivot

1шт.

3/8" N.F. hex. nut

1шт.

3/8" std. lockwasher

1шт.

3/8" plain washer

2шт.

A9242

SUPPORT - throttle rear rod

1шт.

5/8" x 1" N.C. hex. bolt w/lockwasher

1шт.

O6320AB

X

DISC - friction, throttle lever

1шт.

O6326AB

X

SPRING - throttle control lever shaft

1шт.
