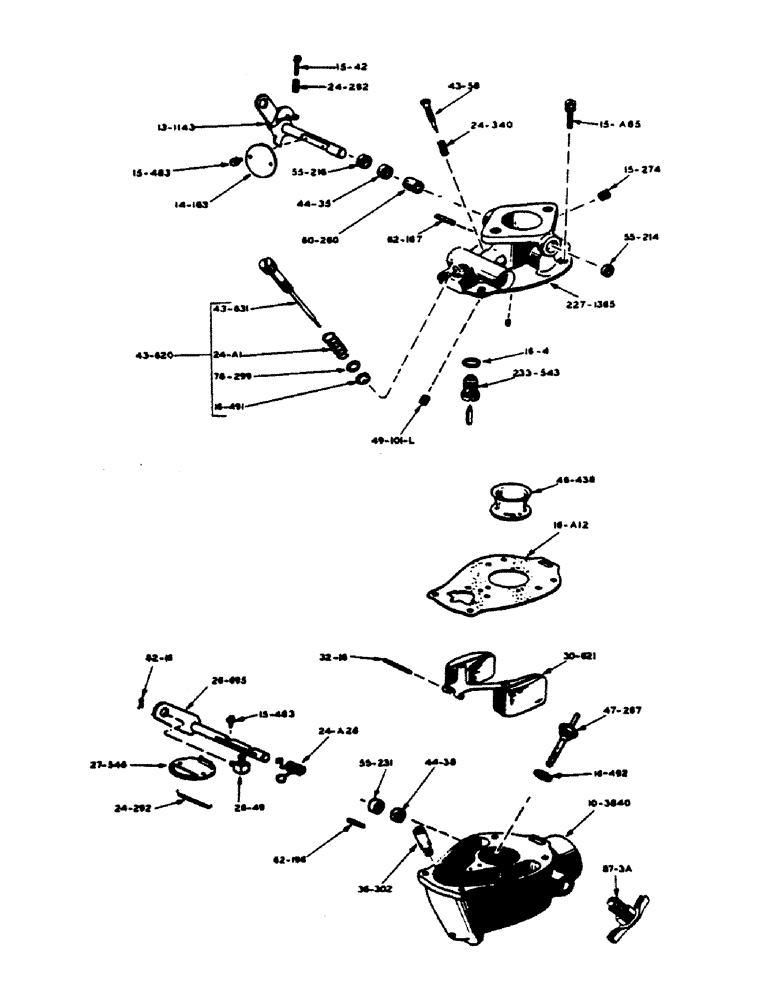

Запчасти Case IH 400-SERIES (022) - POWRDYNE GAS ENGINE, A7777 MARVEL - SCHEBLER CARBURETOR MODEL TSX-616 (02) - ENGINE

10-3840

BODY ASSEMBLY

1шт.

13-1143

SHAFT - trottle, and lever assembly

1шт.

Included in 286-1076 service parts kit.

1шт.

14-163

SHAFT

FLY - throttle

1шт.

15-42

SCREW - throttle adjusting (#8 - 32 x 3/4" fill head)

1шт.

15-A85

SCREW - throttle body to bowl (#12-24 x 3/4" fill head)

4шт.

15-274

SCREW - (5/16"-24 headless plug)

1шт.

15-343

SCREW - name plate (#2 x 1/4" drive)

1шт.

15-483

SCREW - choke fly (#6-32 x 1/4" binding head)

2шт.

15-483

SCREW - throttle fly (#6-32 x 1/4" binding head)

2шт.

16-4

GASKET - float valve seat

1шт.

Included in 16-594 gasket set.

1шт.

16-A12

GASKET - throttle, Serial Range: body-bowl

1шт.

Included in 16-594 gasket set, and is now serviced by P/N B51704.

1шт.

16-491

GASKET - main adjusting needle

1шт.

Included in 16-594 gasket set.

1шт.

16-492

X

GASKET - nozzle

1шт.

Included in 16-594 gasket set.

1шт.

16-594

GASKET - set

1шт.

B51725

X

Sub of 16-594, into individual pieces

1шт.

24-A1

SPRING - main adjusting needle packing

1шт.

24-A28

SPRING - choke return

1шт.

Included in 286-1076 service parts kit.

1шт.

24-262

SPRING - throttle stop screw

1шт.

24-292

SPRING - choke fly flapper

1шт.

24-340

SPRING - idle needle

1шт.

26-695

SHAFT - choke, and lever assembly

1шт.

27-548

FLY - choke, assembly

1шт.

28-49

SWIVEL - choke

1шт.

30-621

FLOAT - and lever assembly

1шт.

B51773

FLOAT

sub from 30-621

1шт.

32-16

SHAFT - float lever

1шт.

Included in 286-1076 service parts kit.

1шт.

36-302

SEAT - main adjusting needle

1шт.

Included in 286-1076 service parts kit.

1шт.

43-58

NEEDLE - idle adjusting

1шт.

43-620

NEEDLE - main adjusting, assembly, complete

1шт.

43-631

NEEDLE - main adjusting, assembly

1шт.

44-35

PACKING - throttle shaft

1шт.

44-38

PACKING - choke shaft

1шт.

46-438

VENTURI - (29/32" dia. throat)

1шт.

47-267

NOZZLE - main

1шт.

49-101-L

JET - idle

1шт.

Included in 286-1076 service parts kit.

1шт.

55-214

CUP - throttle shaft

1шт.

Included in 286-1076 service parts kit.

1шт.

55-216

RETAINER - throttle shaft packing

1шт.

Included in 286-1076 service parts kit.

1шт.

55-231

RETAINER - choke shaft packing

1шт.

Included in 286-1076 service parts kit.

1шт.

60-260

BUSHING - throttle shaft

2шт.

Included in 286-1076 service parts kit.

1шт.

62-167

PIN - throttle stop

1шт.

62-196

PIN - choke stop

1шт.

78-299

WASHER - main adjusting needle

1шт.

82-16

COTTER - hair pin, choke swivel

1шт.

87-3A

COCK - drian

1шт.

227-1365

BODY AND BOWL COVER ASSEMBLY - throttle

1шт.

233-543

VALVE AND SEAT ASSEMBLY - float

1шт.

Included in 286-1076 service parts kit.

1шт.

286-1076

KIT - service parts (see note)

1шт.

A7612

CHOKE CONTROL - (for all but orchard models) (see A9045)

1шт.

A7777

CARBURETOR - Marvel Schebler modle TSX-616 5/16" x 1" N.C. hex. bolt with lockwasher No. 8-32 x 3/8" rhd. mach screw (for choke control)

1шт.

A7922

CLIP

- choke control (one on engine block and one on steering housing) (for orchard models)

2шт.

A9045

CHOKE CONTROL - (for orchard models) (see A7612)

1шт.

O889AB1

X

GASKET -, Serial Range: carburetor-manifold

1шт.

O4591AB1

ClIP - choke control No. 10 x 3/4" N.C. rhd. mach. screw with nut and lockwasher

1шт.

O8813AB

LOOM - choke control (48" long) (for all but orchard models) (see 08816AB)

1шт.

O8816AB

LOOM - choke control (66" long) (for orchard models) (see 08813AB)

1шт.
