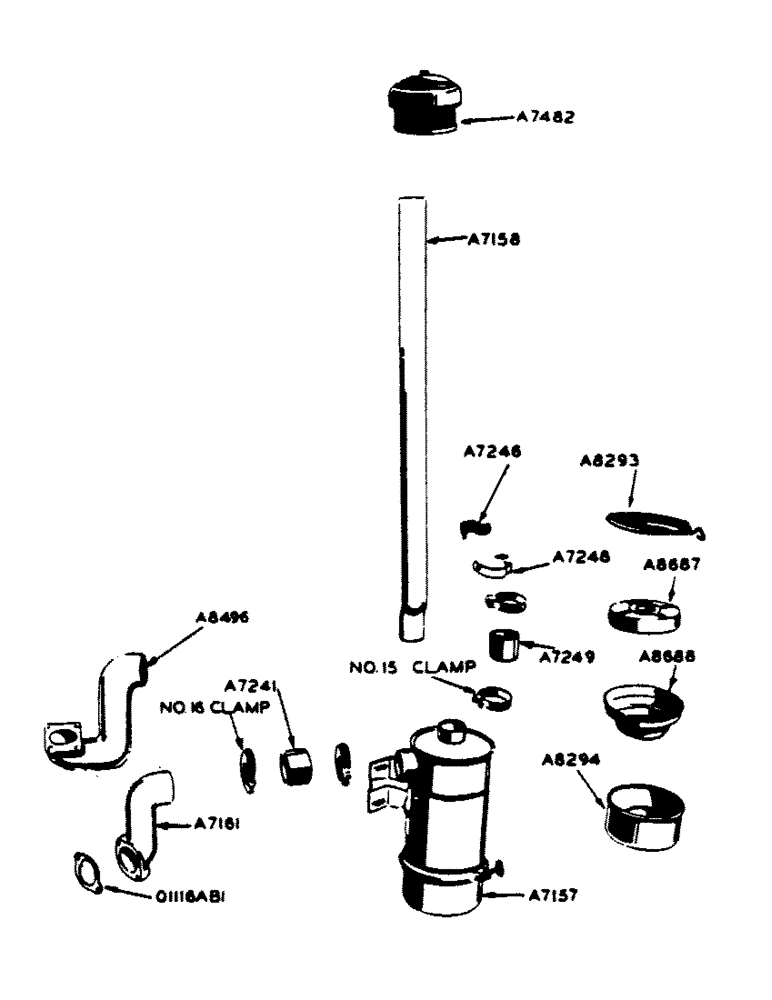

Запчасти Case IH 400-SERIES (021) - POWRDYNE GAS ENGINE, AIR CLEANER (02) - ENGINE

A7157

SPRING

AIR CLEANER - (6") 3/8" x 3/4" N.C. hex. hd. cap screw 3/8" shakeproof external - internal lockwasher #4020-26

4шт.

A7158

PIPE

- air intake

1шт.

A7161

ELBOW

- air cleaner (see A8496)

1шт.

A7241

HOSE - air cleaner No. 16 hose clamps (2-5/8" O.D. hose)

2шт.

A7246

SUPPORT - air intake pipe (all but orchard models) 5/16" x 3/4" N.C. carr. bolt with hex. nut 5/16" shakeproof ext. - int. tooth lockwasher #4018-24

1шт.

A7248

STRAP - air intake pipe, with "T" bolt (all but orchard models) 1/4" N.C. wing nut - zinc plated

1шт.

A7249

HOSE

- air intake pipe (all but orchard models) (see A9047) No. 15 hose clamps (2-3/8" O.D. hose)

2шт.

A7482

PRESCREENER

PRE-SCREENER - air intake (2") (all but orchard models)

1шт.

A3496

ELBOW - air cleaner (for LP-gas tractors) (see A7161)

1шт.

A9047

HOSE - air cleaner intake (for orchard models) No. 15 hose clamp (2-3/8" O.D. hose)

1шт.

O1116AB1

X

GASKET - carburetor to air cleaner elbow

1шт.

A8293

CLAMP - oil cup retaining, parts for A7157 air cleaner

1шт.

A8294

CUP

- oil, parts for A7157 air cleaner

1шт.

A8687

SCREEN, parts for A7157 air cleaner

1шт.

A8688

BAFFLE - screen, parts for A7157 air cleaner

1шт.
