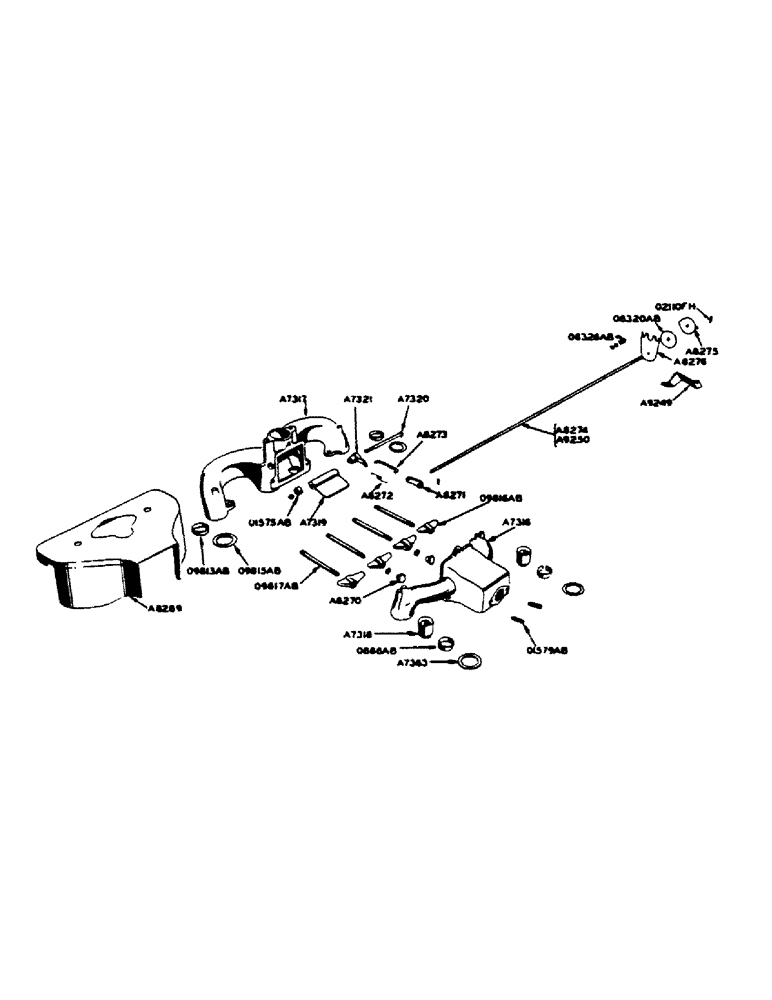

Запчасти Case IH 400-SERIES (018) - POWRDYNE GAS ENGINE, LOW COST FUEL MANIFOLD (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A7316
MANIFOLD - intake
1шт.
3/8" x 7/8" N.C. nex. bolt
1шт.
3/8" x 2-1/4" N.C. hex bolt
2шт.
1/8" sq. hd. pipe plug
2шт.
A7317
MANIFOLD - exhaust
1шт.
A7318
VENTURI - intake manifold
2шт.
A7319
VALVE - heat regulator
1шт.
A7320
BOLT - heat regulator
1шт.
3/8" N.C. hex. slotted nut
1шт.
3/32" x 7/8" slotted nut
1шт.
3/32" x 7/8" cotter pin
1шт.
A7321
LEVER - heat regulator
1шт.
A7363
MANIFOLD GASKET
- intake manifold
2шт.
A8269
COVER - manifold
1шт.
A8270
NUT - inlet and exhaust manifold stud (7/16" N.F. thrd.)
2шт.
A8271
LEVER - heat regulator control, lower
1шт.
1/4" N.C. hex jam nut
1шт.
1/4" x 1/2" N.C. sq. hd. cup pt. set screw
1шт.
A8272
SPRING - heat regulator control lever
1шт.
A8273
LINK - heat regulator control lever
1шт.
3/32" x 5/8" cotter pin
2шт.
1/4" plain washer
2шт.
A8274
ROD - heat regulator control (For all but orchard models) (see A9250)
1шт.
3/8" N.F. hex. jam nut
2шт.
A8275
DIAL - heat regulator
1шт.
A8276
SUPPORT - heat regulator control (for all orchard models) (See A9249)
1шт.
3/8" x 3/4" N.C. truss hd. mach. screw with hex. nut
2шт.
3/8" shakeproof ext. tooth lockwasher #1120-11
1шт.
3/8" shakeproof ext. - int. tooth lockwasher #4020-26
2шт.
A9249
SUPPORT - heat regulator dial (for orchard models) (see A8276)
1шт.
A9250
ROD - heat regulator control (for orchard models) (see A8274)
1шт.
3/8" N.F. hex. jam nut
2шт.
O886AB
X
FERRULE - intake manifold
2шт.
O1575AB
SPACER - heat regulator valve
1шт.
O1579AB
STUD -, Serial Range: carburetor-manifold
2шт.
O6320AB
X
DISC - friction, heat regulator dial
1шт.
O6326AB
X
SPRING - heat regulator control
1шт.
O9813AB
X
FERRULE - exhaust manifold
4шт.
O9815AB
X
GASKET - exhaust manifold
4шт.
O9816AB
CLAMP - intake and exhaust manifold
4шт.
O9817AB
X
STUD - intake and exhaust manifold
4шт.
7/16" N.F. hex jam nut
2шт.
O2110FH
X
ROLL PIN - heat regulator dial (3/16" x 3/4")
1шт.
Выбрано товаров: 43
