Запчасти Case IH 400-SERIES (224) - TOOLS AND TOOL BOX, A8358 SPECIAL SERVICE TOOLS CASE, CASE 400 SERIES TRACTORS (09) - CHASSIS

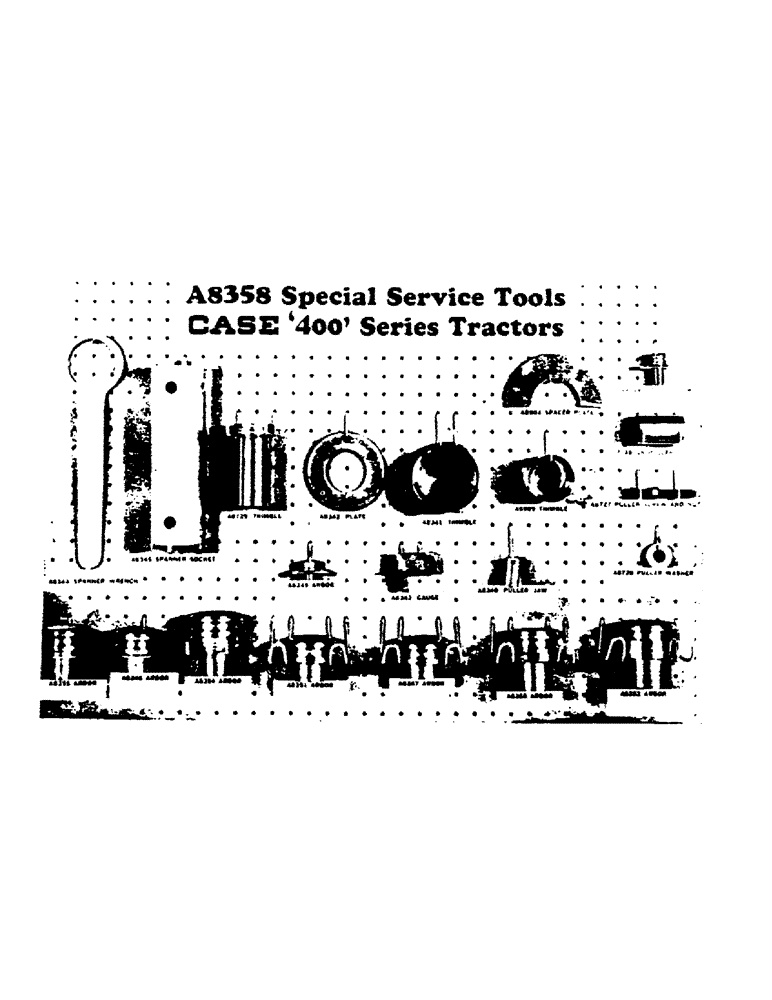

Схема запчастей Case IH 400-SERIES - (224) - TOOLS AND TOOL BOX, A8358 SPECIAL SERVICE TOOLS CASE, CASE 400 SERIES TRACTORS (09) - CHASSIS

Артикул

Название

Примечание

Количество

A7487

FIXTURE - with necessary tools, for replacing or reaming connecting rod bushings (consists of 1 - A7488 fixture, 1 - A7489 reamer, 1 - A7490 driver and 1 - A7491 driver sleeve)

1шт.

A7942

TOOL

BAR - to adjust PTO clutch and hand operated traction clutch

1шт.

A8340

JAW - hydraulic pump drive shaft bearing puller (to be used with 3913AA puller by removing 08662AB jaws)

2шт.

A8341

THIMBLE - to assembly 010816AB and 010817AB oil seals on differential gear and sleeve

1шт.

Part of set of service tools P/N A8358

1шт.

A8342

PLATE - to adjust steering worm bearings on tractors with power steering

1шт.

A8343

GAUGE - for setting belt pulley drive gears

1шт.

A8344

WRENCH - spanner, for 01077AB range drive shaft gear lock nut

1шт.

A8345

WRENCH - spanner socket, for 09023AB and 010803AB lock nuts on countershaft

1шт.

A8346

ARBOR - for pressing in A7851 needle bearing into steering gear housing (standard 4-wheel tractor)

1шт.

A8346

ARBOR - for pressing in A7851 needle bearing for upper front axle king pin (adjustabale front axle and high clearance models)

1шт.

A8347

TOOL

ARBOR - for pressing in 010785AB low range gear bearing

1шт.

Part of set of service tools P/N A8358

1шт.

A8348

ARBOR - for pressing in A7411 bushing into belt pulley inner shaft

1шт.

A8349

ARBOR - for pressing in A7290 governor lever shaft needle bearings

1шт.

A8351

ARBOR - for pressing in 010867AB needle bearing into front axle

1шт.

A8352

ARBOR - for pressing in 010972AB needle bearing into 6525A and A7973

1шт.

A8354

ARBOR - for pressing 010971AB needle bearing into 6523A and A7970 housings

1шт.

A8354

ARBOR - for pressing 010866AB needle bearing into front axle (standard 4-wheel tractors)

1шт.

A8355

ARBOR - for pressing in 010848AB needle bearing in A8133 cover (standard 4-wheel tractors)

1шт.

A8356

ARBOR - for pressing in 010787AB bearing into high range gear

1шт.

A8358

SET OF SERVICE TOOLS. Consists of items marked

1шт.

A8696

WRENCH - socket, for rear wheel hub and rim clamp nuts (for general purpose tractors)

1шт.

A8726

BODY - puller, for A8348 arbor

1шт.

A8727

SCREW - puller, for A8348 arbor

1шт.

3/8" N.F. hex. nut

1шт.

A8728

WASHER - puller, for A8348 arbor

1шт.

A8729

THIMBLE - to assembly A7146 oil seal on A7138 clutch shaft

1шт.

A8904

PLATE - spacer, to space and press 010889AB oil seal the hydraulic housing

2шт.

A8909

THIMBLE - to assemble 010889AB oil seal on 010886AB PTO clutch drum

1шт.

A9031

ARBOR - for pressing 010882AB rear needle bearing into 010880AB shaft

1шт.

A9032

ARBOR - for pressing LS-2923-S front needle bearing into 010880AB shaft

1шт.

A9033

JAWS - puller, to remove 010882AB rear pilot bearing from 010880AB PTO shaft

2шт.

A9034

JAW - puller, to remove LS-2923-S front pilot bearing from 010880AB PTO shaft

2шт.

A9035

BOLT - puller, used with A9033 and A9034 jaws and A9036 cup

1шт.

A9036

CUP - puller, for removing 010882AB and LS-2923-S bearings from 010880AB PTO shaft

1шт.

A9491

WRENCH - power adjustable tread rear wheel jack screw (general purpose models)

1шт.

A9817

ARBOR - for pressing in A7985 power steering worm shaft needle bearing into carrier

1шт.

A9818

ARBOR - for pressing in A7986 power steering worm shaft needle bearing into housing

1шт.

A9834

THIMBLE - to protect 09074AB1 oil seal when installing A9002 bearing carrier over the worm shaft (for std. 4-wheel tractors with power steering)

1шт.

5366A

WRENCH - rear axle lock nut

1шт.

O6019A

HANDLE - spark plug wrench

1шт.

O1982AB

WRENCH - hub cap

1шт.

O3317AB

WRENCH - socket, rear axle shaft outer nut

1шт.

O6785AB

TOOL - tire

1шт.

O7421AB

WRENCH - spark plug

1шт.

O10315AB

WRENCH - 3/4" hex. crowfoot, for injector tube nut (high pressure lines on fuel pump) (diesel only)

1шт.

O10316AB

WRENCH - 7/8" hex., for cylinder head stud nut (under rocker arms)

1шт.

2884AA

BOX - tool

1шт.

5/16" x 5/8" N.C. hex. bolt w/lockwasher

2шт.

SET OF NO. 47 TRANSFERS, for model 400 series tractors

1шт.

Выбрано товаров: 51
