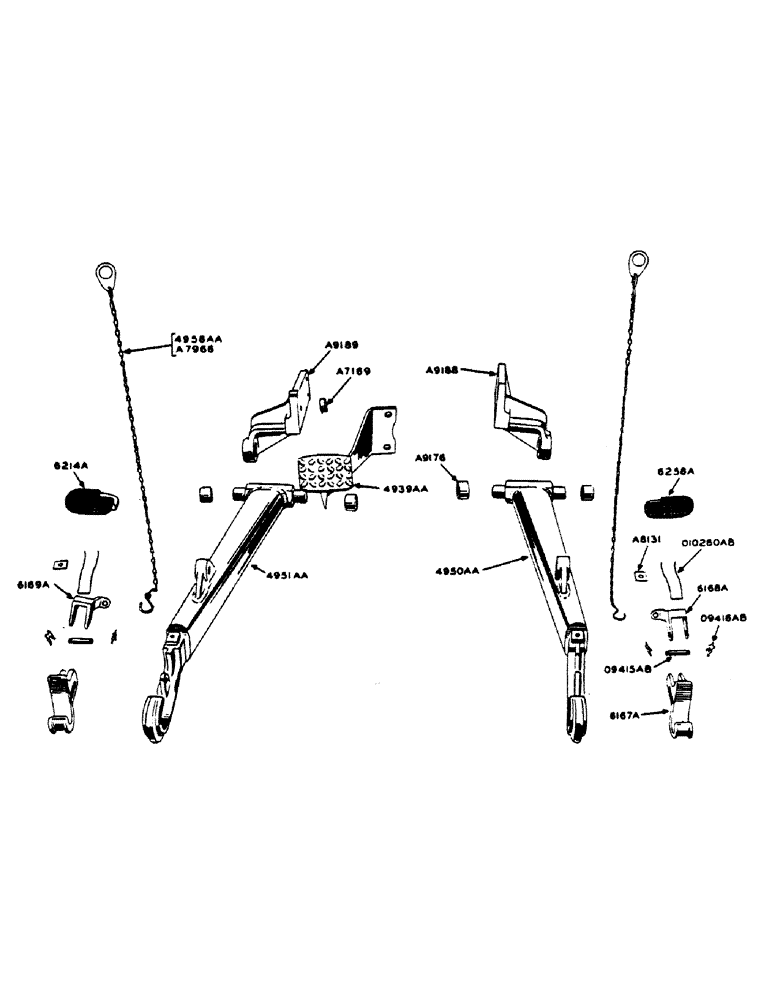

Запчасти Case IH 400-SERIES (220) - EAGLE HITCH DRAFT ARMS (09) - CHASSIS

A7162

SPARE PART

BRACKET (use A9188)

1шт.

A7163

BRACKET (use A9189)

1шт.

A7164

HOPPER

BRACKET (use A9188)

1шт.

A7165

FRAME

BRACKET (use A9189)

1шт.

A7169

SPACER - draft arm pivot bracket (for general purpose tractors)

1шт.

A7966

CHAIN - latch, eagle hitch (31-5/8" long) (for standard 4-wheel tractors) (see 4958AA)

2шт.

A8131

X

PLATE - eagle hitch latch spring

2шт.

A9174

SPRING

BRACKET (use A9182)

1шт.

A9175

BRACKET (use A9183)

1шт.

A9176

BUSHING

(1.361" O.D) - draft arm pivot (used with A9174, A9175, A9186, A9187, A9192 and A9193 brackets) (see 09230AB)

4шт.

A9182

SPRING

BRACKET - draft arm pivot, with A9176 bushing, R.H. (for high clearance tractors)

1шт.

5/8" x 2-1/4" N.C. hex. bolt w/lockwasher

1шт.

3/4" x 2-1/2" N.C. hex. bolt w/lockwasher

1шт.

3/4" x 3" N.C. hex. bolt w/lockwasher

1шт.

A9183

CLAMP

BRACKET - draft arm pivot, with A9176 bushing, L.H. (for high clearance tractors)

1шт.

5/8" x 2-2/4" N.C. hex. bolt w/lockwasher

1шт.

3/4" x 2-1/2" N.C. hex. bolt w/lockwasher

1шт.

3/4" x 3" N.C. hex. bolt w/lockwasher

1шт.

A9186

BRACKET (use A9188)

1шт.

A9187

BRACKET (use A9189)

1шт.

A9188

BRACKET - draft arm pivot, with A9176 bushing, R.H. (for general purpose tractors)

1шт.

5/8" x 2-1/4" N.C. hex. bolt w/lockwasher

1шт.

3/4" x 2-1/2" N.C. hex. bolt w/lockwasher

2шт.

A9189

BRACKET - draft arm pivot, with A9176 bushing, L.H. (for general purpose tractors)

1шт.

5/8" x 2-3/4" N.C. hex. bolt w/lockwasher

1шт.

3/4" x 2-1/2: N.C. hex. bolt w/lockwasher

2шт.

A9192

BRACKET (use A9194)

1шт.

A9193

BRACKET (use A9195)

1шт.

A9194

BRACKET - draft arm pivot, with A9176 bushings, R.H. (for standard 4-wheel tractors)

1шт.

3/4" x 2-1/2" N.C. hex. bolt w/lockwasher

2шт.

A9195

BRACKET - draft arm pivot, with A9176 bushing, L.H. (for standard 4-wheel tractors)

1шт.

3/4" x 2-1/2" N.C. hex. bolt w/lockwasher

2шт.

6167A

X

LATCH - eagle hitch

2шт.

6168A

X

LOCK - eagle hitch latch, R.H.

1шт.

6169A

X

LOCK - eagle hitch latch, L.H.

1шт.

6214A

X

STEP - latch, L.H.

1шт.

5/16" x 1-1/4" N.C. hex. bolt w/lockwasher

1шт.

6258A

X

STEP - latch, R.H.

1шт.

5/16" x 1-1/4" N.C. hex. bolt w/lockwasher

1шт.

6520A

BRACKET (use A9194)

1шт.

6521A

BRACKET (use A9195)

1шт.

O9230AB

BUSHING (1-1/4" O.D.) - draft arm pivot pin (used with A7162, A7163, 6520A and 6521A bracket) (see A9176)

4шт.

O9415AB

X

PIN - latch, eagle hitch

2шт.

O9416AB

X

RING - retaining, latch pin

4шт.

O10280AB

X

SPRING - latch

2шт.

4939AA

STEP - upper L.H.

1шт.

4950AA

ARM - draft, eagle hitch, R.H.

1шт.

4951AA

ARM - draft, eagle hitch, L.H.

1шт.

4954AA

BRACKET (use A9194)

1шт.

4955AA

BRACKET (use A9195)

1шт.

4958AA

CHAIN - latch, eagle hitch (35-3/8" long) (for general purpose tractors) (see A7966)

2шт.
