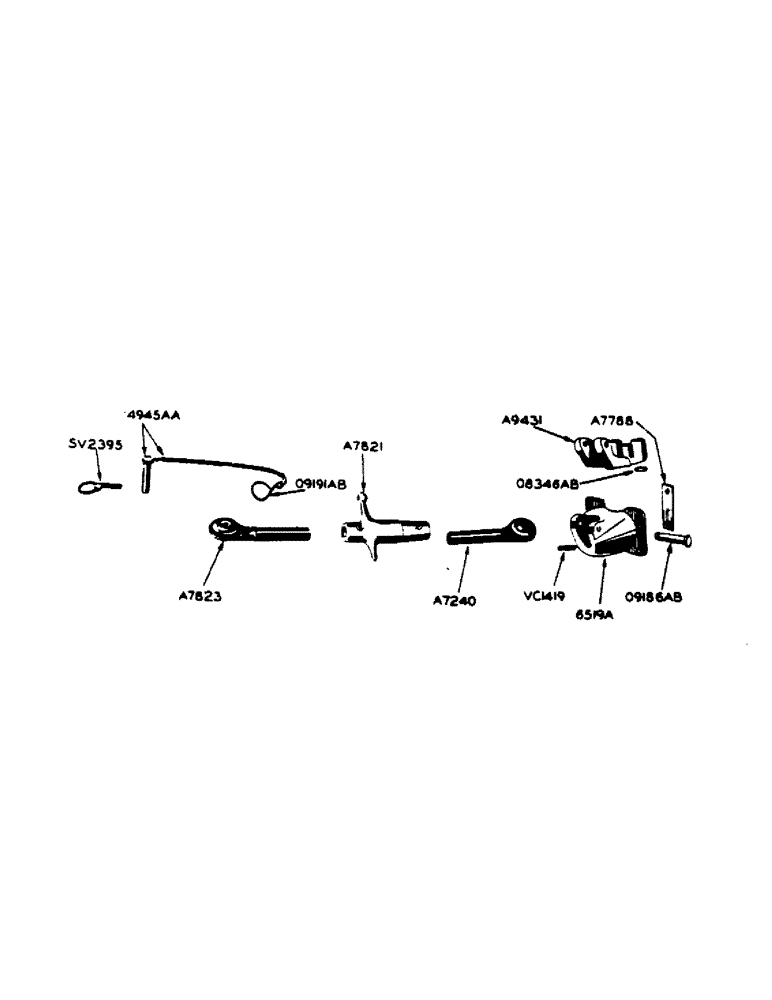

Запчасти Case IH 400-SERIES (219) - DEPTTH ADJUSTING SCREW (09) - CHASSIS

A7240

SCREW - depth adjusting, front (L.H. thread - 4" long)

1шт.

A7788

SPACER - lower mounting bracket (for standard 4-wheel tractor)

1шт.

A7821

TURNBUCKLE - deptth adjusting screw

1шт.

1/8" str. Lincoln fitting no. 5000

2шт.

A7823

SCREW - depth adjusting, rear (R.H. thread - 4-23/32" long)

1шт.

1-1/4" N.F. hex. jam nut

1шт.

A9431

BRACKET - depth adjusting screw mounting, upper, and for breather (for Eagle Hitch tractors only, except high clearance) (see 6518A)

1шт.

1/2" x 2-1/2" N.C. hex. bolt

1шт.

1/2" x 3" N.C. hex. bolt w/lockwasher

2шт.

3/4" sq. hd. pipe plug

1шт.

6518A

BRACKET - depth adjusting screw mounting, upper (for tractors without Eagle Hitch and high clearance) (see A9431)

1шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher

1шт.

1/2" x 3" N.C. hex. bolt w/lockwasher

2шт.

6519A

BRACKET - mounting, depth adjusting screw, lower

1шт.

O8346AB

X

"O" RING - for A9431 bracket

1шт.

O9186AB

PIN - depth adjusting screw yoke

1шт.

O9191AB

X

"S" HOOK - mast pin chain

1шт.

SV2365

X

PIN - keeper, mast pin

1шт.

VC1419

X

COTTER - hair pin, for 09186AB pin

1шт.

4945AA

PIN - eagle hitch mast, with chain

1шт.
